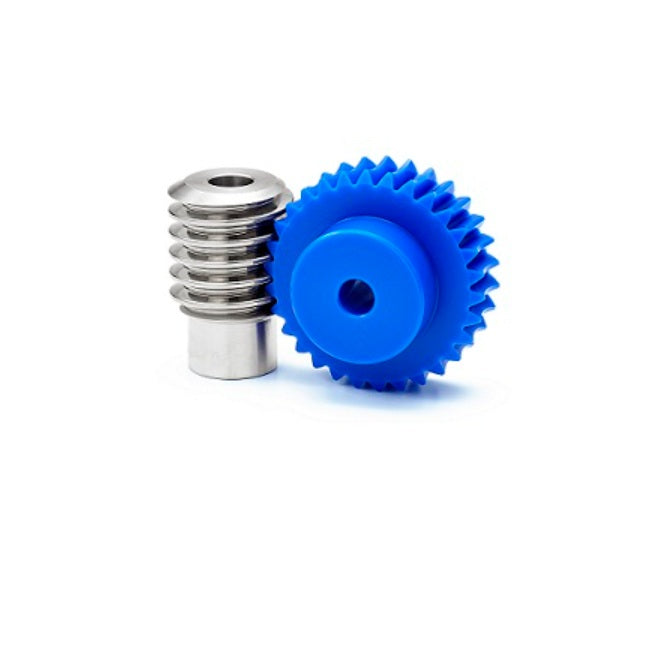

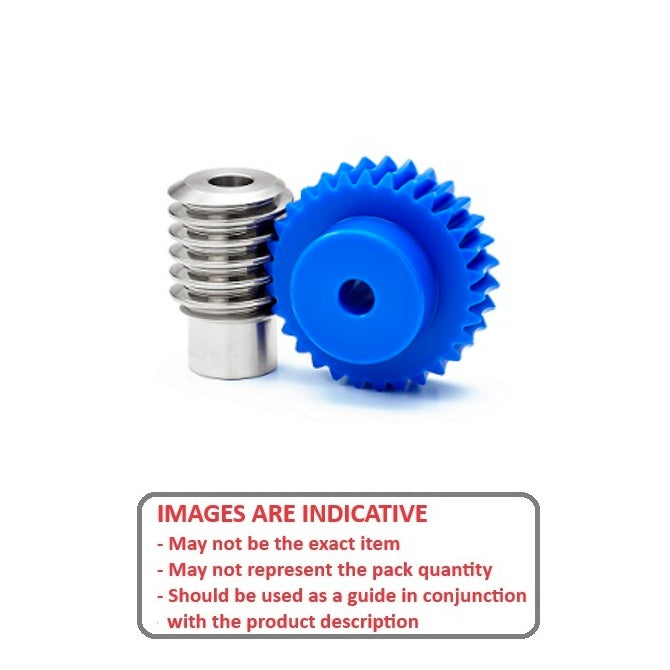

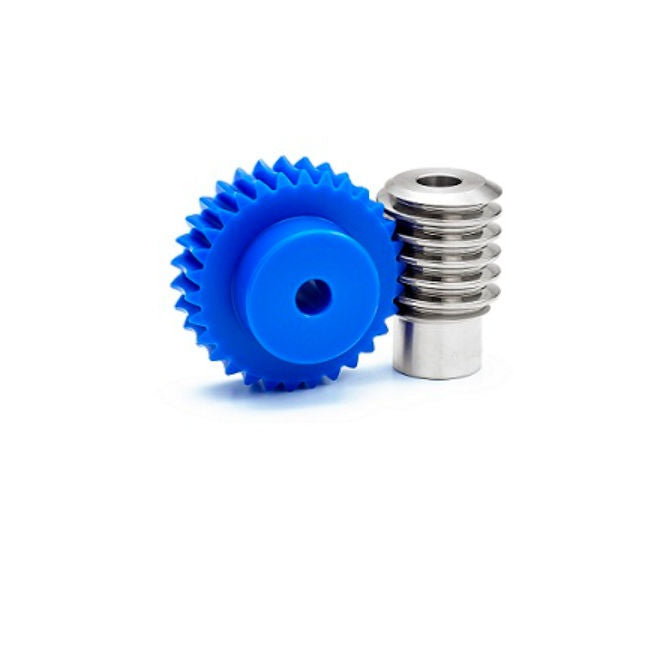

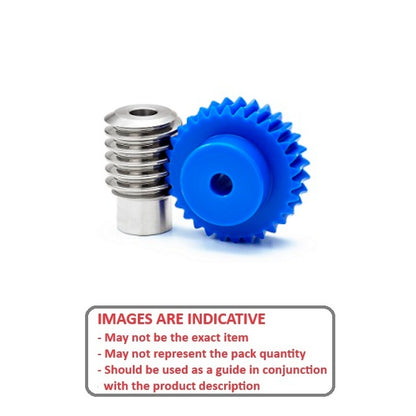

Pitch Module 0.8 - 30 tooth - 5 mm - Polyacetal and Steel Gear

WGS1-080-030-050-R-ACS (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Pitch Module 0.8 - 30 tooth - 5 mm - Polyacetal and Steel Gear
1 3

MBA

Store Name: Small Parts & Bearings

Price:
$45.00 AUD
$85.50 AUD $45.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now
Only 2 may be ordered online. If you need a large quantity, please contact us.

Pitch Module 0.8 - 30 tooth - 5 mm - Polyacetal Gear and Steel Worm - Sold Per Each:

Base Category: Gears - Worm Sets

Top Level Category: Gears - Worm Sets - Module 0.8

Product Details


Deleted Item. Available while stocks last.

Pitch: Module 0.8

Polyacetal Gear and Steel Worm
  • Pitch: Module 0.8
  • Teeth: 30
  • Bores (Gear / Worm): 5.00 / 5.00mm
    (5.00 / 5.00mm is 0.197 in.)
  • Direction: Right Hand
  • Ratio: 30 to 1
  • Lead Angle: 1Deg
  • Face Width (b): 6.00mm
  • Hub Diameter: 18.00mm
  • Centre Distance (A): 18.25mm
  • Gear Length (l): 12mm
  • Hub Projection (lh): 6mm
  • Gear Pitch Diameter (da): 24.00mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.
