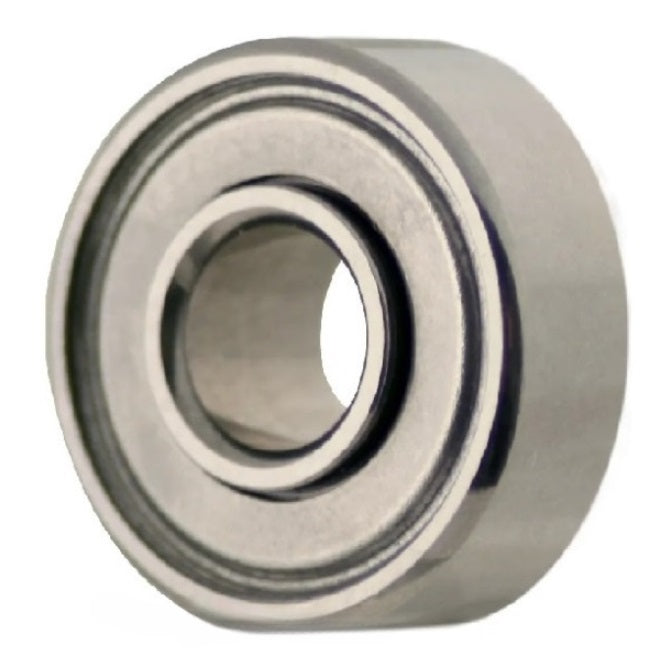

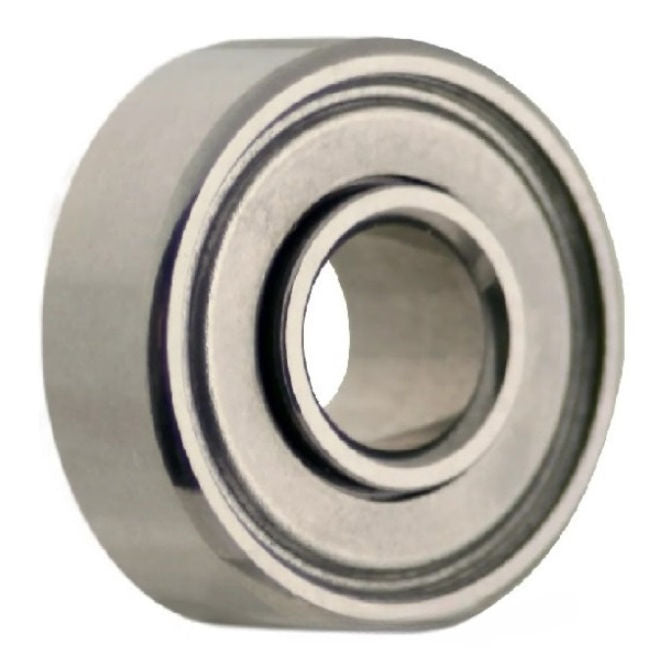

Dental Applications Bearings - 3.175x6.35x2.35 mm / 2.45 mm

SWR144B-CSN-ZE-MC3-GR7-TO (Each)

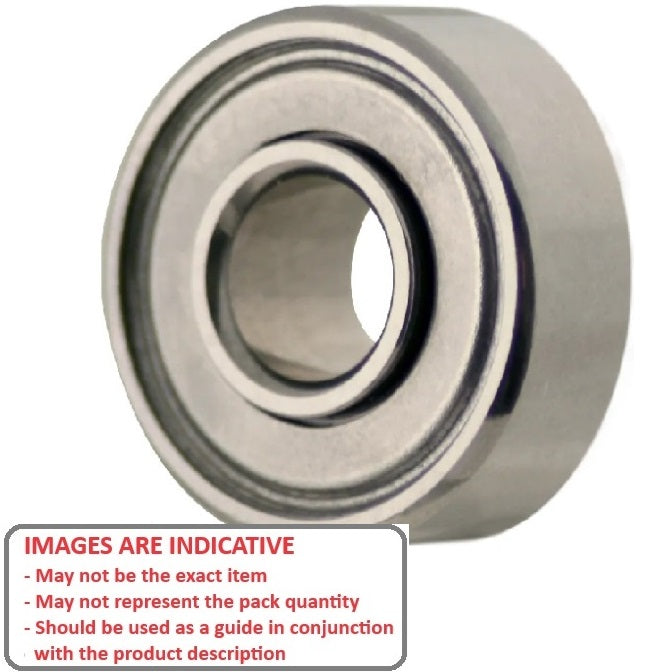

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dental Applications Bearings - 3.175x6.35x2.35 mm / 2.45 mm
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Dental Replacement Parts _ Turbines, Gears, O-Rings etc
Price:
$60.05 AUD
$60.05 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now

Order 50 or more
for $54.05 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 04, 2026

1/8x1/4 inch Bearing - 3.175x6.35x2.35 mm / 2.45 mm Dental Applications Bearings - - Sold Per Each:

Base Category: Bearings - Dental Applications

Top Level Category: Bearings - Dental Applications

Product Details


Double shielded Abec 7 precision ceramic-hybrid bearing with high speed Torlon retainer

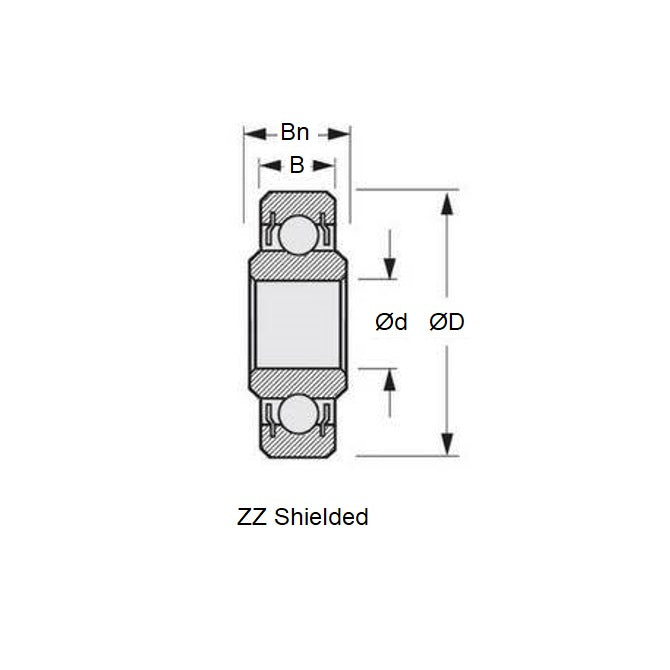

ID (d): 3.175mm
(3.175mm is 0.125 in.)
  • ID (d): 3.175mm
    (3.175mm is 0.125 in.)
  • O.D. (D): 6.350mm
    (6.350mm is 0.25 in.)
  • Width (B): 2.350mm
    (2.350mm is 0.093 in.)
  • Inner Ring Width (Bn): 2.450mm
  • Additional Information: Ceramic Hybrid, Torlon Cage

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • SWR144BCSNZZSMC3GR7TO
  • SWR144BCSNZEMC3GR7TO

Used for

  • Dental Handpiece Parts
  • Sirona® - 001 - Bearing for Rotor Cartridge
  • Sirona® - T1 Boost - Bearing for Rotor Cartridge Serial No. Over 602 001
  • Sirona® - T1 Control - Bearing for Rotor Cartridge Serial No. Over 602 001
  • Sirona® - T2 Boost - Bearing for Rotor Cartridge Serial No. Over 602 001
  • Sirona® - T2 Control - Bearing for Rotor Cartridge Serial No. Over 602 001
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
