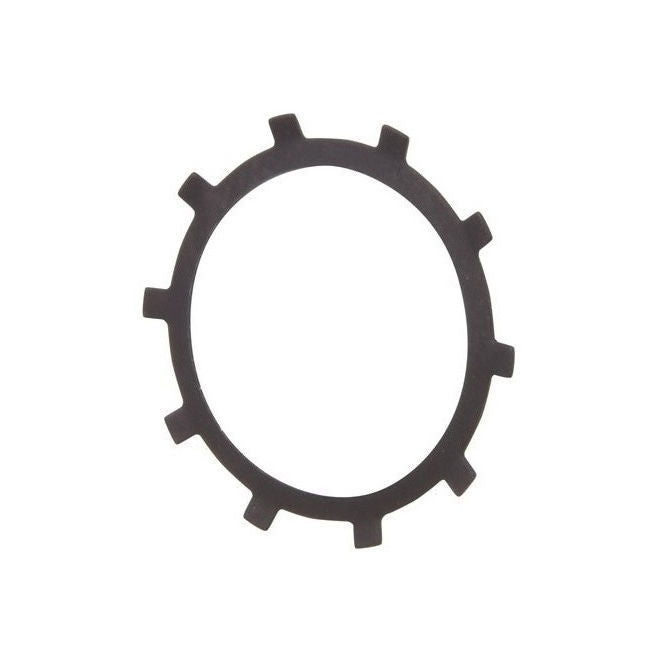

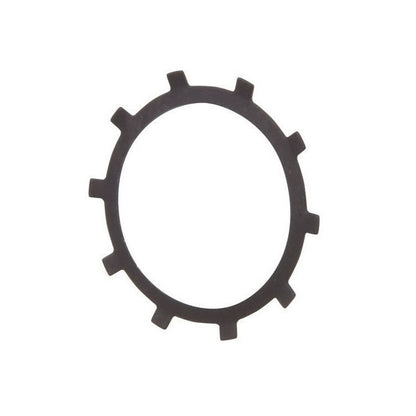

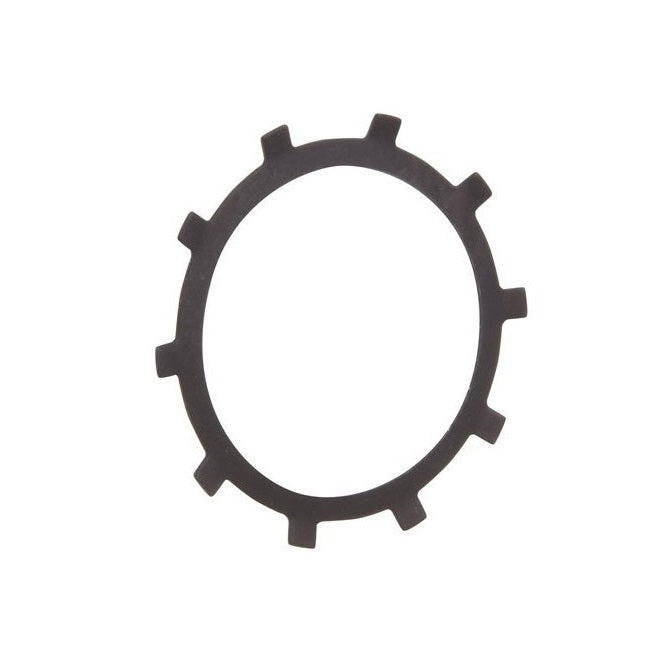

Push In Carbon Steel Retaining Rings - 9.5x9.56x4.45 mm - Carbon Spring Steel Self Finish

RPI-095-096-C (10 Pcs)

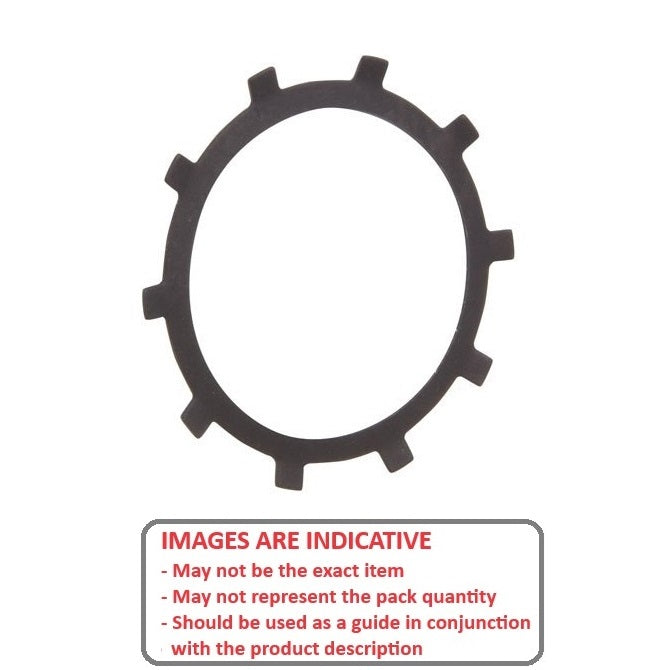

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Push In Carbon Steel Retaining Rings - 9.5x9.56x4.45 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$4.05 AUD
$4.05 AUD
per 10
Qty: 26 packs (260 pcs) available now
Order 50 or more packs (500 pcs) for $3.65 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 17, 2025

Base Category: Retaining Rings - Push In Carbon Steel

Top Level Category: Retaining Rings - Push In Carbon Steel

Product Details:


Additional stock available from USA subject to Prior Sale = 31686

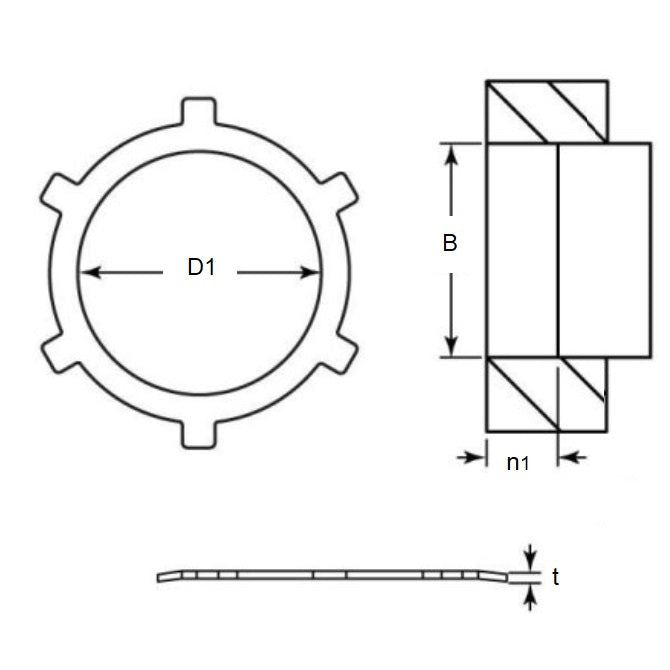

Housing Bore (B) Min: 9.50mm
(9.50mm is 0.374 in.)

Carbon Spring Steel Self Finish
  • Housing Bore (B) Max: 9.56mm
    (9.56mm is 0.376 in.)
  • Inside Clearance (D1): 4.45mm
    + / - 0.13
    (4.45mm is 0.175 in.)
  • Thickness (t): 0.25mm
    +/- 0.03
  • Recommended Depth (n1): 1.02mm
  • Thrust Load: 1037kg.cm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

  • ALTPART 98435A134
  • Small Parts RSI-6
  • NoCor TI-037
  • N13050037APP
  • N1305-0037APP
  • N1305-0037-APP
  • TI037
  • RSI6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
