SBTN-0927-SP

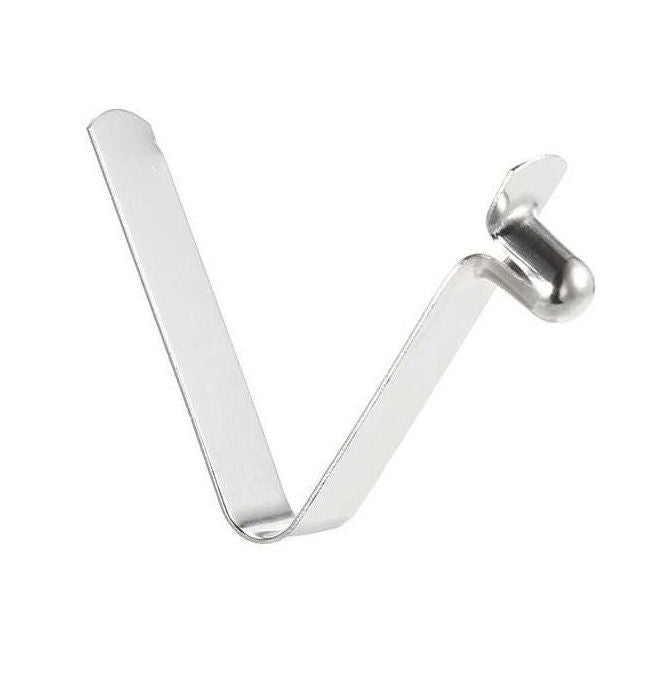

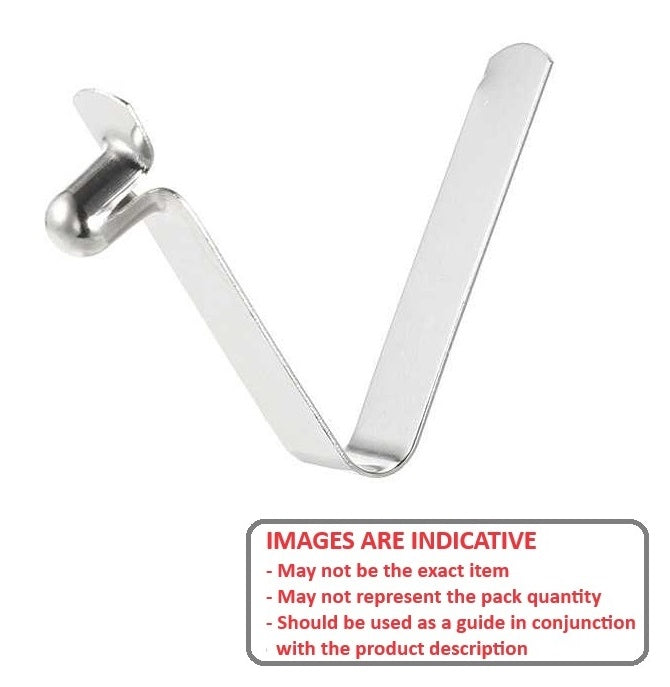

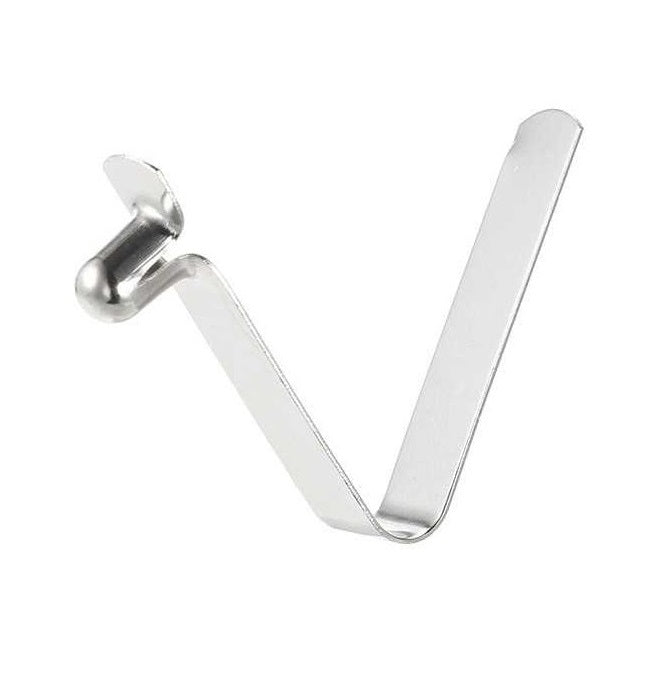

Snap - 9.27 mm x 9.4 mm x 0.635 mm
MBA
Tubing
Qty: 63 available now
Order 50 or more for $12.56 AUD Each
Couldn't load pickup availability
Base Category: Snap Buttons - Single End
Top Level Category: Snap Buttons - Single End - Spring Leg

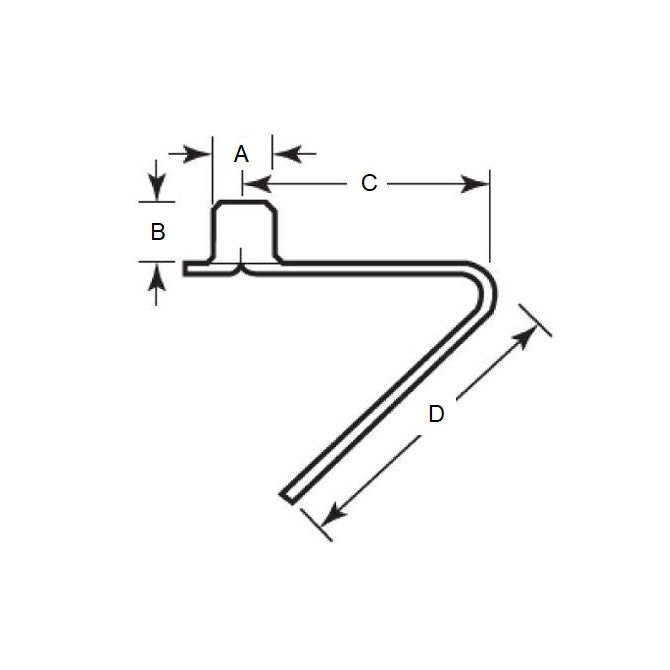

Product Details:Button Diameter (A): 9.27mm
Spring Steel
- Button Height (B): 9.40mm
- Material Thickness: 0.635mm
- Clip Width: 12.95mm
- Centre to Middle of End (C): 45.97mm
- Length (D): 54.1mm
- Use with Round Tubing: 17.3 to 34.8
- Use with Square Tubing: 17.3 to 34.8
Brand: MBA
Country of Origin: US
Alternatives: VA-1161
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
