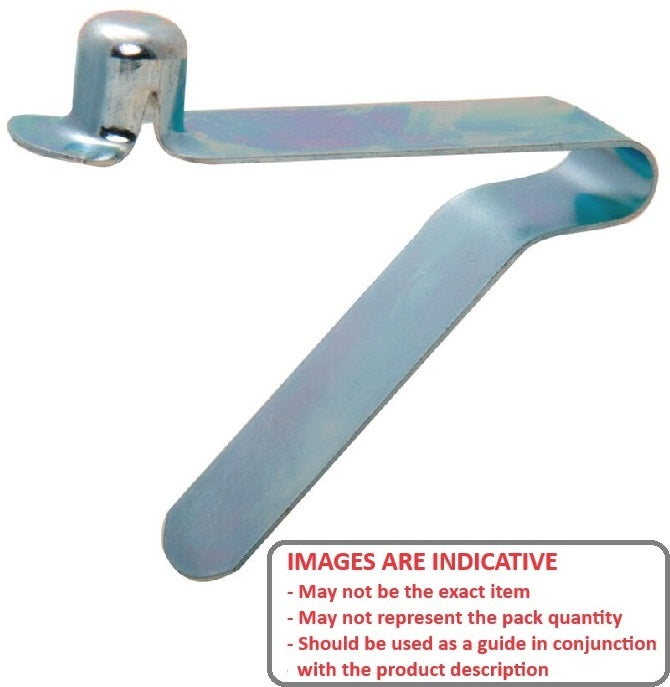

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

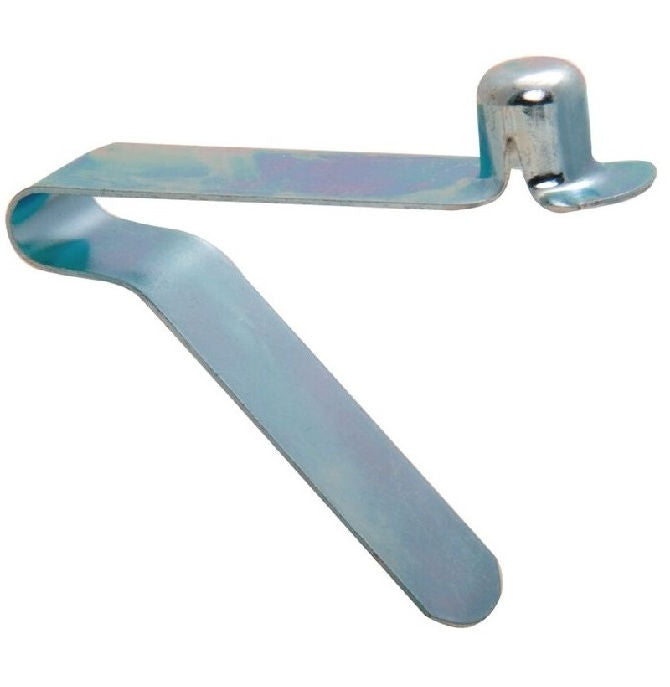

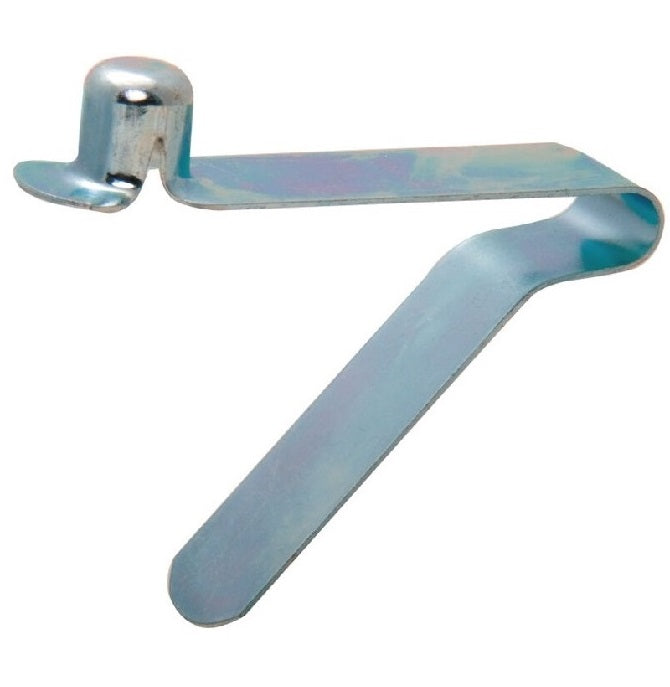

SBTN-0927-DL
Snap - 9.27 mm x 9.4 mm x 0.635 mm

MBA

Additional resources:
Tubing
Price:
Regular price $7.41 AUD
Regular price Sale price $7.41 AUD
Each
Qty: 14 available now
Order 50 or more for $6.67 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Dec 22, 2024

Base Category: Snap Buttons - Single End

Top Level Category: Snap Buttons - Single End - Dog Leg

Product Details:

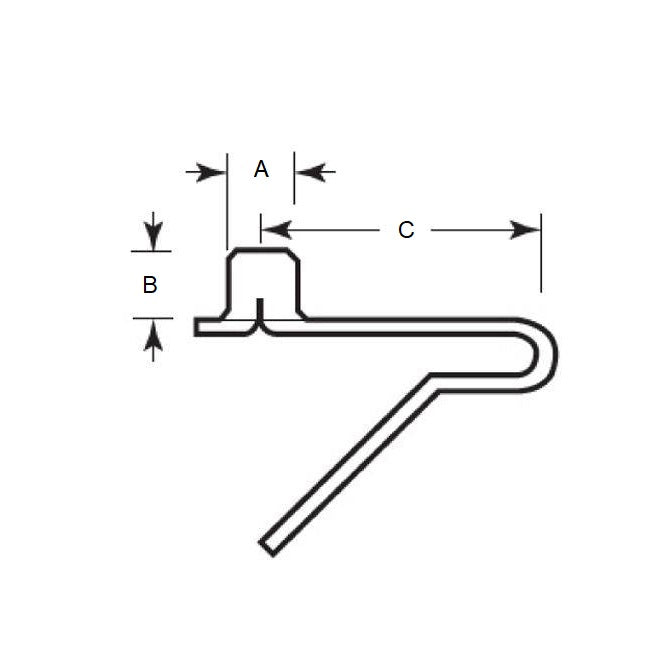

Button Diameter (A): 9.27mm
Spring Steel
  • Button Height (B): 9.40mm
  • Material Thickness: 0.635mm
  • Clip Width: 12.95mm
  • Centre to Middle of End (C): 45.72mm
  • Use with Round Tubing: 15.2 to 28.4
  • Use with Square Tubing: 15.2 to 28.4

Brand: MBA
Country of Origin: US

Alternatives: VA-2160

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
