Dowel Pins - 8x20x22.4 mm Standard - Stainless Steel 316 Similar to A4, 18-10 Pin

Name: 1087526 | DP080-020-316-3 (Pack of 5) --- Dowel Pins - 8x20x22.4 mm Standard - Stainless Steel 316 Similar to A4, 18-10 Pin
Rating: 5.0 (1 reviews)

DP080-020-316-3 (Pack of 5)

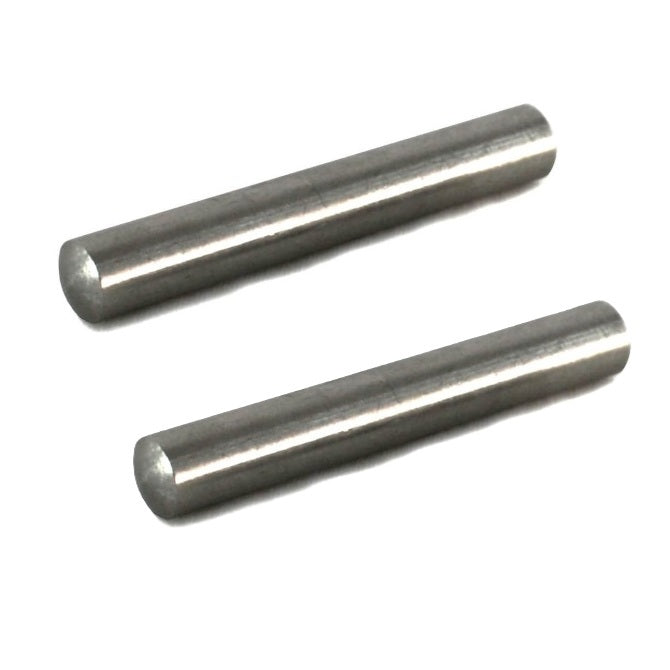

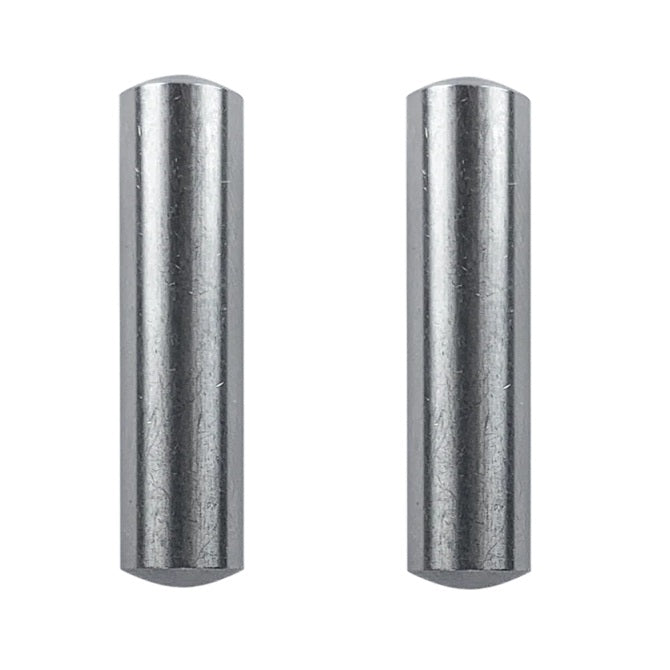

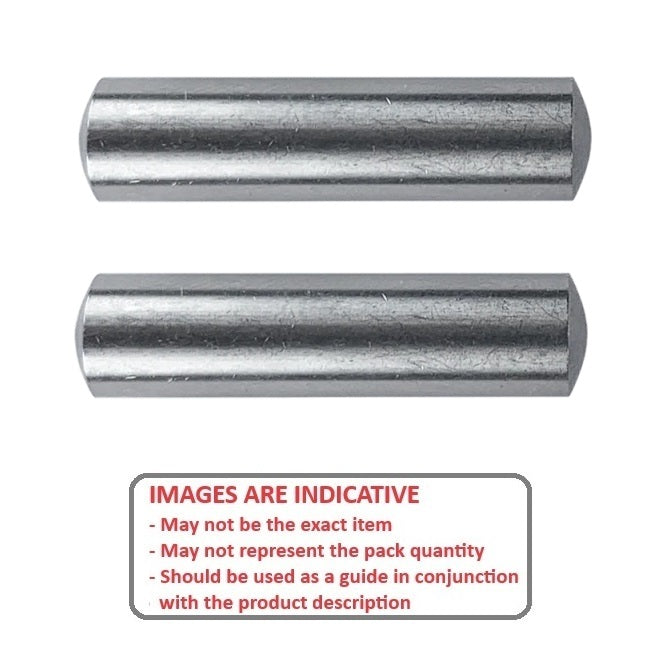

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

NoCor

Store Name: Small Parts & Bearings

Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$20.95 AUD

Priced, Stocked and Sold Per pack of 5

Excludes GST and overseas Taxes & Duties

Qty: 149 packs (745 pcs) available now

Order 50 or more packs of 5 (250 pcs)
for $18.86 AUD per 5 pack

Product Details

Diameter (D): 8.000mm
_{+ 0.006 / + 0.015}
_{(8.000mm is 0.315 in.)}

Stainless Steel 316 (Similar to A4, 18-10)

Diameter (D): 8.000mm
_{+ 0.006 / + 0.015}
_{(8.000mm is 0.315 in.)}
Length (L): 20.00mm
_{+/- 0.420}
_{(20.00mm is 0.787 in.)}
Approx. Overall Length: 22.40mm
_{+/- 0.420}
_{(22.40mm is 0.882 in.)}

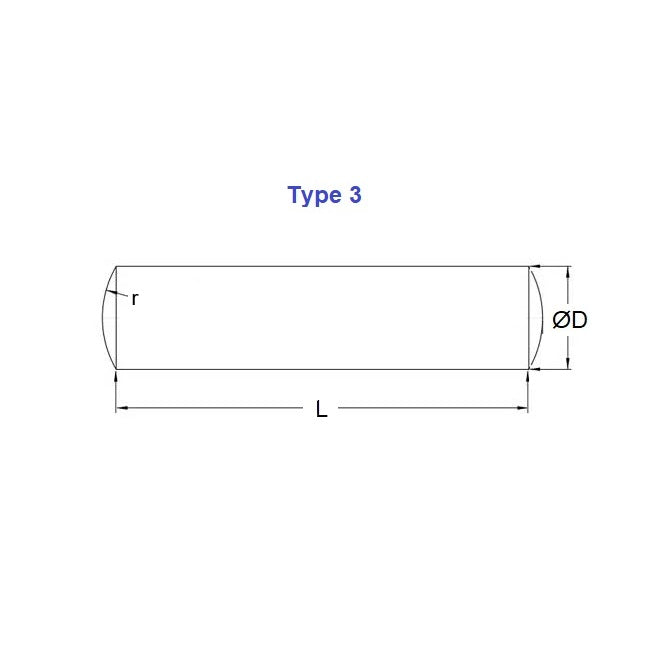

Type: 3 (Rounded Ends)
Standard: Based on DIN 7

Brand: NoCor
Country of Origin: GB

Product Compliance and Data

Similar to

NoCor® DOWM6-080-020
DP8020A4
DP8020/A4
DP8.0-20/A4
DP8.0-20-A4
DOWM6080020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DP0800203163, DP080020
