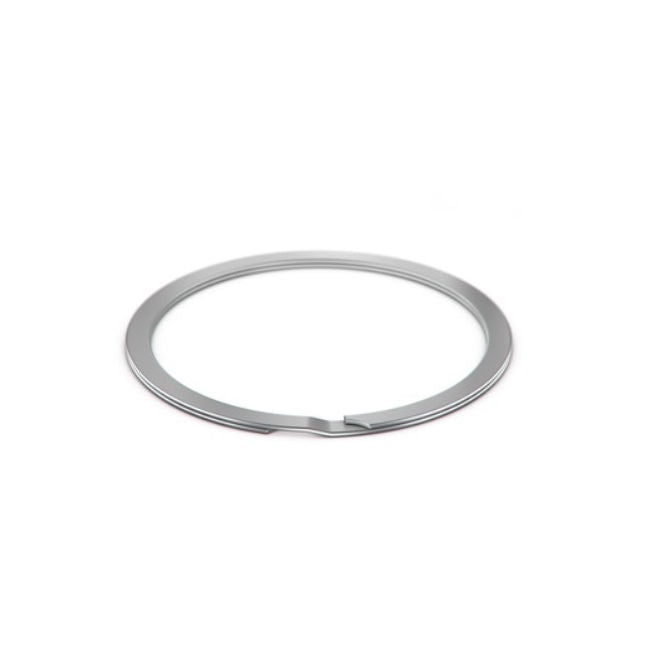

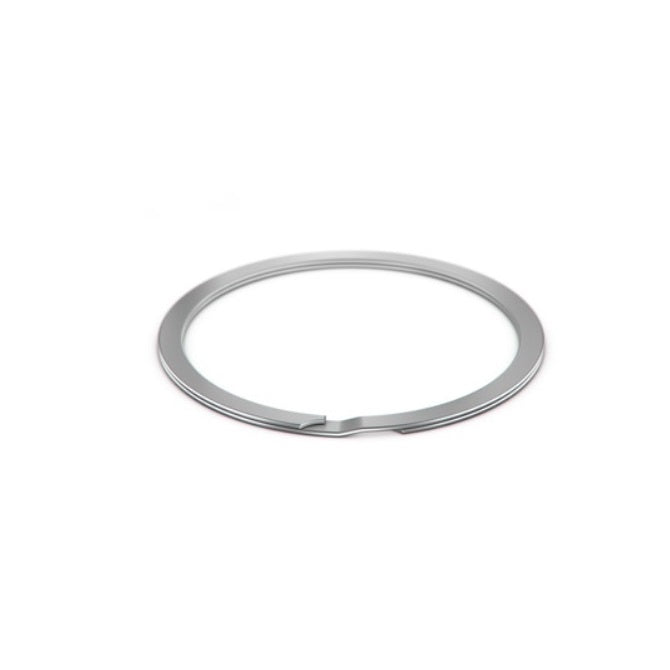

Internal Retaining Rings - 80.95x1.55x83.39 mm - Spring Steel

RR-318

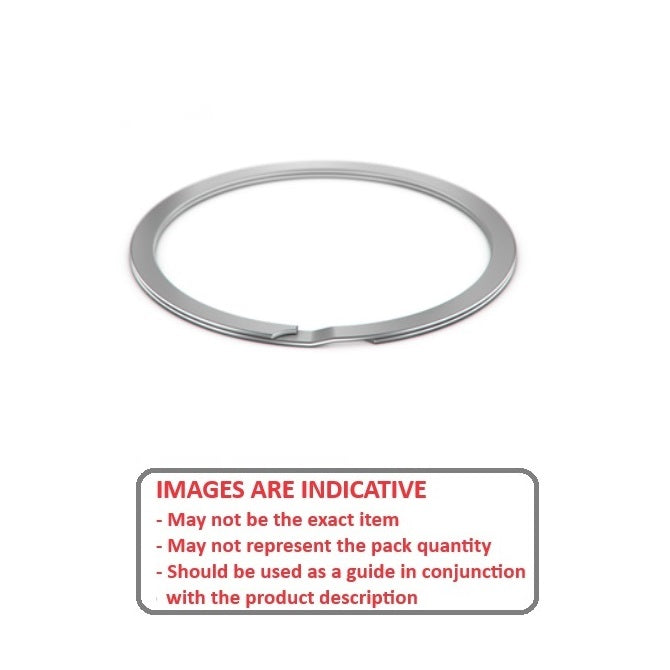

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 80.95x1.55x83.39 mm - Spring Steel
1 4

MBA

Additional resources:
Spiral Rings and Snap Rings PDF
Price:
$5.86 AUD
$7.04 AUD $5.86 AUD
Each
Qty: 23 available now
Only 23 may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 370

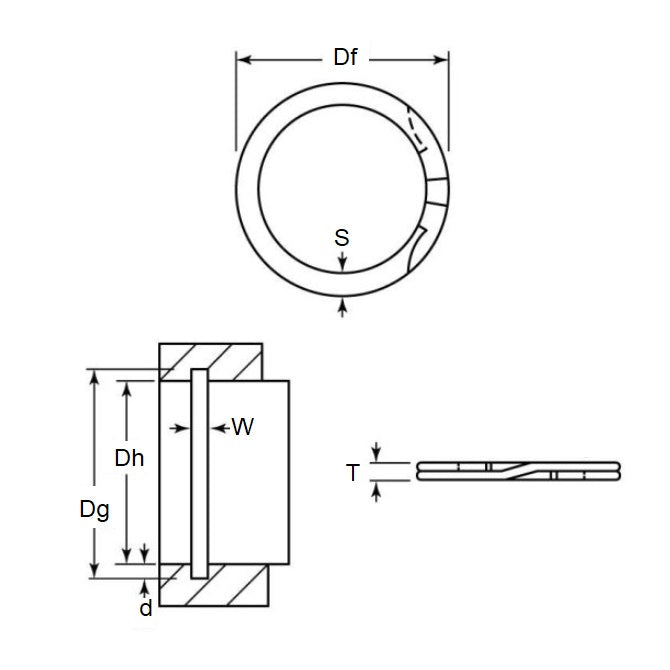

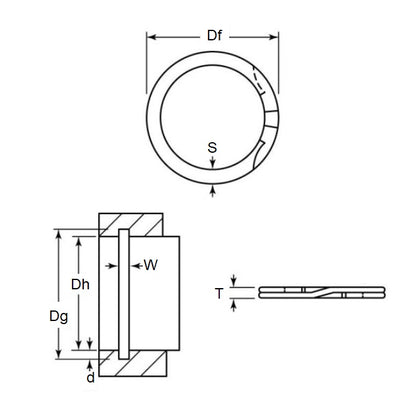

Housing Bore (B): 80.95mm
(80.95mm is 3.187 in.)

Spring Steel
  • Clip Thickness (T): 1.55mm
    +/- 0.08
    (1.55mm is 0.061 in.)
  • Groove Dia. (Dg): 83.39mm
    (83.39mm is 3.283 in.)
  • Approx. Loose Circlip OD (Dr): 84.51mm
    + 0.76 / - 0.00
  • Radial Wall (S): 4.52mm
    +/- 0.13
  • Groove Width (W): 1.79mm
    +/- 0.15
  • Approx. Loose Clip ID: 75.47
    +/- 0.06
  • Groove Depth (d): 1.22

Brand: MBA
Country of Origin: US

Alternative Parts Include: AI318, AI-318, RR-318, RR318, WH318, WH-318, Associated Spring, Smalley, Spirolox

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
