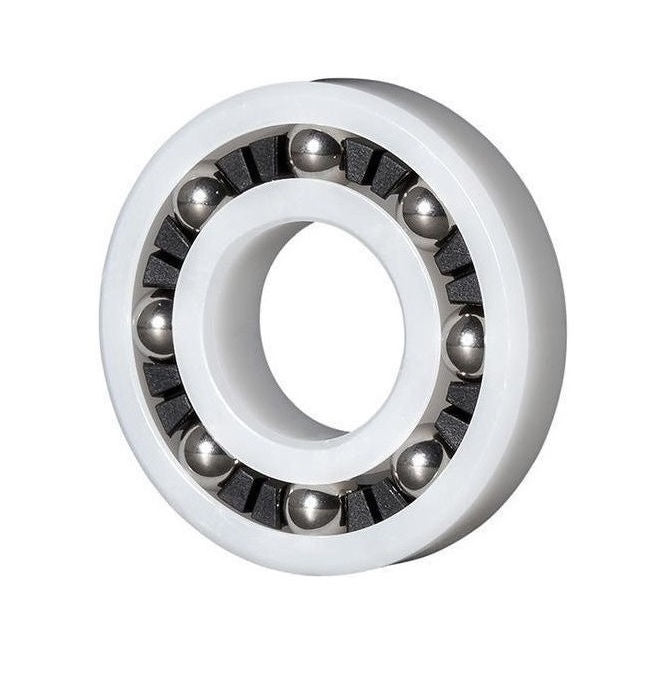

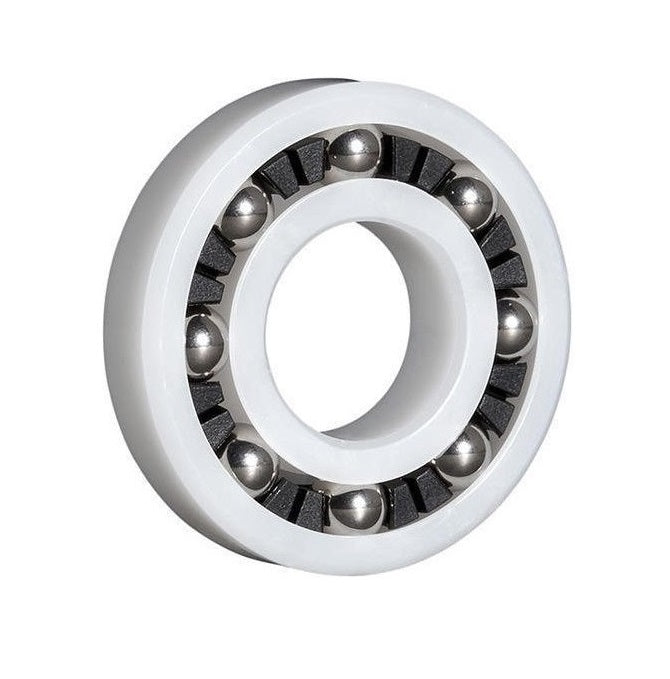

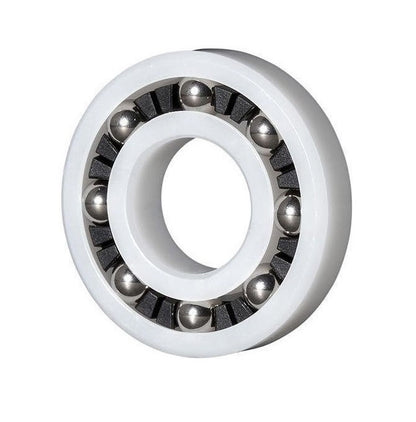

Plastic Bearings - 7x26x9 mm - Acetal with Stainless 316 Balls

Name: 1075253 | P-637-AS6 --- Plastic Bearings - 7x26x9 mm - Acetal with Stainless 316 Balls
Brand: KMS
SKU: P637AS6
Price: 14.41 AUD
Availability: InStock

P-637-AS6

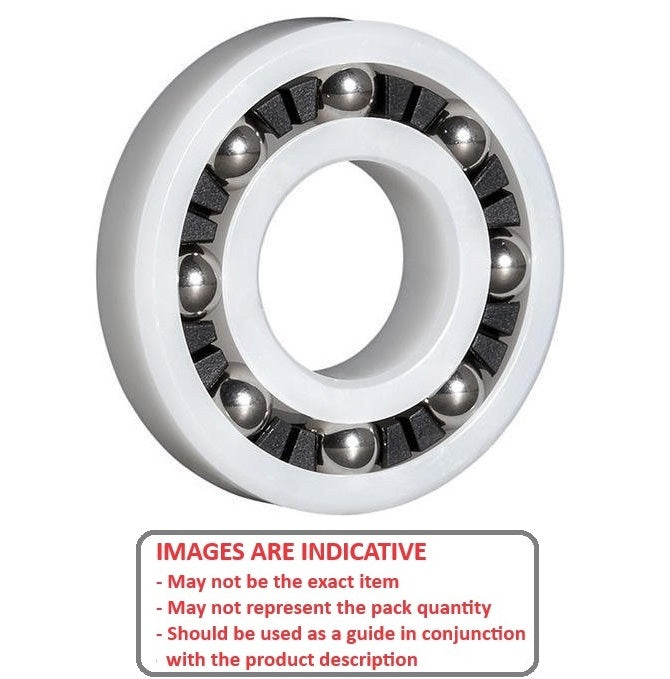

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Category: Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$14.41 AUD

~~$28.87 AUD~~ $14.41 AUD

Each
Qty: 30 available now

Only 30 may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls

Product Details:

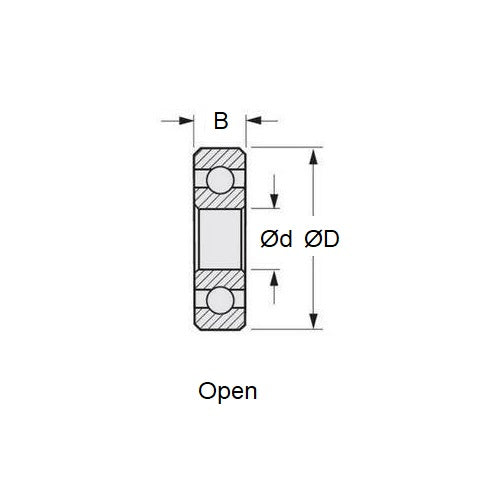

ID (d): 7.000mm
_{+ 0.076 / - 0.000}
_{(7.000mm is 0.276 in.)}

Acetal with Stainless 316 Balls

OD (D): 26.000mm
_{+ 0.000 / - 0.102}
_{(26.000mm is 1.024 in.)}
Width (B): 9.000mm
_{+ 0.127 / - 0.000}
_{(9.000mm is 0.354 in.)}
Max RPM in Air: 1600
Notes: Unlubricated
Type: Radial
Dynamic Load Rating: 19.1Kg
Static Load Rating: 15Kg

Brand: KMS
Country of Origin: US

Alternative Parts Include: AS6637, A637-6, A6376, 637, KMS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
