Collection: Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls

Bearings (With Images)

Plastic

Acetal

Single Row

302 Stainless Balls
316 Stainless Balls
Glass Balls

47 Products in this selection

Plastic ball bearings do not use the same precision standards as those for precision ball bearings
Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

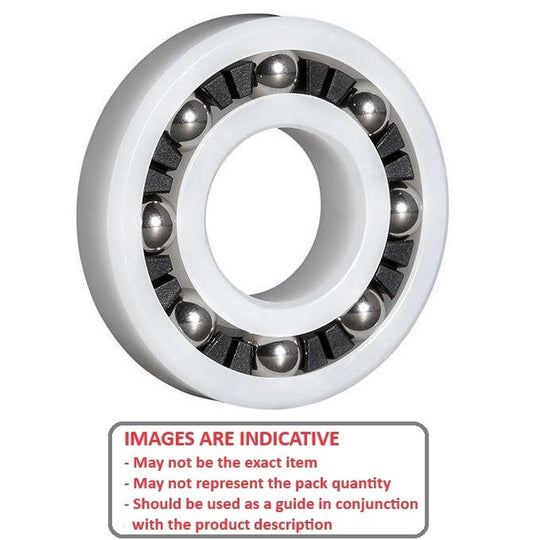

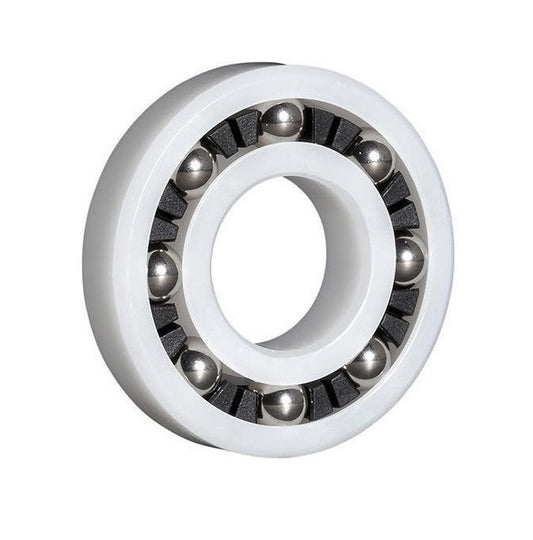

Races made from Acetal - Balls made from 316 Stainless Steel - Cages from Acetal or Nylon.
Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
Temperature Range - Minus 30 ^oC to 100 ^oC Continuous.

Small Parts & Bearings

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

A more comprehensive listing may be found on the MBA Minibearings main store at Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls.

ID (d)	OD (D)	Width (B)	Flange Diameter	Flange Thickness	Inner Ring Width (Bn)	Indicative Image
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AS6 Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls 32 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Each
ID (d)	OD (D)	Width (B)	Flange Diameter	Indicative Image
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AS6 Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls 32 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Each View the product page first if you are unsure.
P-624-AS6 --- Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls P-624-AS6 --- Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per 32 Available Now
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.076 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-R3-AS6 Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls 4 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.076 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-R3-AS6 Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls 4 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each View the product page first if you are unsure.
P-R3-AS6 --- Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls P-R3-AS6 --- Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per 4 Available Now
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AS6 Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls 40 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AS6 Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls 40 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each View the product page first if you are unsure.
P-R1106-AS6 --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls P-R1106-AS6 --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per 40 Available Now
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AS6 (25 Pcs) Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $315.50 AUD Regular price ~~$378.60 AUD~~ Sale price $315.50 AUD Unit price per Per 25
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AS6 (25 Pcs) Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $315.50 AUD Regular price ~~$378.60 AUD~~ Sale price $315.50 AUD Unit price per Per 25 View the product page first if you are unsure.
P-625-AS6 (25 Pcs) --- Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls Sale P-625-AS6 (25 Pcs) --- Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls Regular price $315.50 AUD Regular price ~~$378.60 AUD~~ Sale price $315.50 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AS6 Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls 1 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AS6 Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls 1 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each View the product page first if you are unsure.
P-606-AS6 --- Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls P-606-AS6 --- Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per 1 Available Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AS6 Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $17.68 AUD Regular price ~~$21.22 AUD~~ Sale price $17.68 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AS6 Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $17.68 AUD Regular price ~~$21.22 AUD~~ Sale price $17.68 AUD Unit price per Each View the product page first if you are unsure.
P-R4-AS6 --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls Sale P-R4-AS6 --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls Regular price $17.68 AUD Regular price ~~$21.22 AUD~~ Sale price $17.68 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 7.144 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12B-AS6 Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls 16 Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.05 AUD Regular price ~~$20.86 AUD~~ Sale price $9.05 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 7.144 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12B-AS6 Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls 16 Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.05 AUD Regular price ~~$20.86 AUD~~ Sale price $9.05 AUD Unit price per Each
P-R4-12B-AS6 --- Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls Sale P-R4-12B-AS6 --- Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls Regular price $9.05 AUD Regular price ~~$20.86 AUD~~ Sale price $9.05 AUD Unit price per 16 Available Now Sale
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AS6 Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls 5 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AS6 Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls 5 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per Each View the product page first if you are unsure.
P-607-AS6 --- Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls P-607-AS6 --- Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per 5 Available Now
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-627-AS6 Plastic Bearings - 7x22x7 mm - Acetal with Stainless 316 Balls 1 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-627-AS6 Plastic Bearings - 7x22x7 mm - Acetal with Stainless 316 Balls 1 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per Each View the product page first if you are unsure.
P-627-AS6 --- Plastic Bearings - 7x22x7 mm - Acetal with Stainless 316 Balls P-627-AS6 --- Plastic Bearings - 7x22x7 mm - Acetal with Stainless 316 Balls Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per 1 Available Now
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-637-AS6 Plastic Bearings - 7x26x9 mm - Acetal with Stainless 316 Balls 30 Available Now \| Item Discontinued - Up to 30 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $12.50 AUD Regular price ~~$28.87 AUD~~ Sale price $12.50 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-637-AS6 Plastic Bearings - 7x26x9 mm - Acetal with Stainless 316 Balls 30 Available Now \| Item Discontinued - Up to 30 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $12.50 AUD Regular price ~~$28.87 AUD~~ Sale price $12.50 AUD Unit price per Each
P-637-AS6 --- Plastic Bearings - 7x26x9 mm - Acetal with Stainless 316 Balls Sale P-637-AS6 --- Plastic Bearings - 7x26x9 mm - Acetal with Stainless 316 Balls Regular price $12.50 AUD Regular price ~~$28.87 AUD~~ Sale price $12.50 AUD Unit price per 30 Available Now Sale
ID (d) 8.000 mm + 0.10 / - 0.00 _{(0.315 in.)}	OD (D) 19.000 mm + 0.00 / - 0.10 _{(0.748 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1472 Notes: Unlubricated Type: Radial Dynamic Load Rating: 3.4 Kg Static Load Rating: 2.0 Kg
Part Number: P-698-AS6 (4 Pcs) Plastic Bearings - 8x19x6 mm - Acetal with Stainless 316 Balls 4 units (16 pcs) Available Now \| Further orders can be expected around Sun, Jul 27, 2025 Regular price $22.50 AUD Regular price Sale price $22.50 AUD Unit price per Per 4
ID (d) 8.000 mm + 0.10 / - 0.00 _{(0.315 in.)}	OD (D) 19.000 mm + 0.00 / - 0.10 _{(0.748 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1472 Notes: Unlubricated Type: Radial Dynamic Load Rating: 3.4 Kg Static Load Rating: 2.0 Kg
Part Number: P-698-AS6 (4 Pcs) Plastic Bearings - 8x19x6 mm - Acetal with Stainless 316 Balls 4 units (16 pcs) Available Now \| Further orders can be expected around Sun, Jul 27, 2025 Regular price $22.50 AUD Regular price Sale price $22.50 AUD Unit price per Per 4 View the product page first if you are unsure.
P-698-AS6 (4 Pcs) --- Plastic Bearings - 8x19x6 mm - Acetal with Stainless 316 Balls P-698-AS6 (4 Pcs) --- Plastic Bearings - 8x19x6 mm - Acetal with Stainless 316 Balls Regular price $22.50 AUD Regular price Sale price $22.50 AUD Unit price per 4 Available Now
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-638-AS6 Plastic Bearings - 8x28x9 mm - Acetal with Stainless 316 Balls 17 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Each
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-638-AS6 Plastic Bearings - 8x28x9 mm - Acetal with Stainless 316 Balls 17 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Each View the product page first if you are unsure.
P-638-AS6 --- Plastic Bearings - 8x28x9 mm - Acetal with Stainless 316 Balls P-638-AS6 --- Plastic Bearings - 8x28x9 mm - Acetal with Stainless 316 Balls Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per 17 Available Now
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 5.556 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6-AS6 Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Stainless 316 Balls 76 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Each
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 5.556 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6-AS6 Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Stainless 316 Balls 76 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Each View the product page first if you are unsure.
P-R6-AS6 --- Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Stainless 316 Balls P-R6-AS6 --- Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Stainless 316 Balls Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per 76 Available Now
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 7.142 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6A-AS6 Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Stainless 316 Balls 25 Available Now \| Item Discontinued - Up to 25 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.23 AUD Regular price ~~$21.18 AUD~~ Sale price $9.23 AUD Unit price per Each
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 7.142 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6A-AS6 Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Stainless 316 Balls 25 Available Now \| Item Discontinued - Up to 25 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.23 AUD Regular price ~~$21.18 AUD~~ Sale price $9.23 AUD Unit price per Each
P-R6A-AS6 --- Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Stainless 316 Balls Sale P-R6A-AS6 --- Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Stainless 316 Balls Regular price $9.23 AUD Regular price ~~$21.18 AUD~~ Sale price $9.23 AUD Unit price per 25 Available Now Sale
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 34.925 mm + 0.000 / - 0.102 _{(1.375 in.)}	Width (B) 11.113 mm + 0.127 / - 0.000 _{(0.438 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 24.5 Kg
Part Number: P-R12212-AS6 Plastic Bearings - 9.525x34.925x11.113 mm - Acetal with Stainless 316 Balls 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.68 AUD Regular price ~~$22.37 AUD~~ Sale price $9.68 AUD Unit price per Each
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 34.925 mm + 0.000 / - 0.102 _{(1.375 in.)}	Width (B) 11.113 mm + 0.127 / - 0.000 _{(0.438 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 24.5 Kg
Part Number: P-R12212-AS6 Plastic Bearings - 9.525x34.925x11.113 mm - Acetal with Stainless 316 Balls 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $9.68 AUD Regular price ~~$22.37 AUD~~ Sale price $9.68 AUD Unit price per Each
P-R12212-AS6 --- Plastic Bearings - 9.525x34.925x11.113 mm - Acetal with Stainless 316 Balls Sale P-R12212-AS6 --- Plastic Bearings - 9.525x34.925x11.113 mm - Acetal with Stainless 316 Balls Regular price $9.68 AUD Regular price ~~$22.37 AUD~~ Sale price $9.68 AUD Unit price per 1 Available Now Sale
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-6000-AS6 Plastic Bearings - 10x26x8 mm - Acetal with Stainless 316 Balls 66 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-6000-AS6 Plastic Bearings - 10x26x8 mm - Acetal with Stainless 316 Balls 66 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each View the product page first if you are unsure.
P-6000-AS6 --- Plastic Bearings - 10x26x8 mm - Acetal with Stainless 316 Balls P-6000-AS6 --- Plastic Bearings - 10x26x8 mm - Acetal with Stainless 316 Balls Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per 66 Available Now
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6200-AS6 Plastic Bearings - 10x30x9 mm - Acetal with Stainless 316 Balls 20 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $23.32 AUD Regular price Sale price $23.32 AUD Unit price per Each
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6200-AS6 Plastic Bearings - 10x30x9 mm - Acetal with Stainless 316 Balls 20 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $23.32 AUD Regular price Sale price $23.32 AUD Unit price per Each View the product page first if you are unsure.
P-6200-AS6 --- Plastic Bearings - 10x30x9 mm - Acetal with Stainless 316 Balls P-6200-AS6 --- Plastic Bearings - 10x30x9 mm - Acetal with Stainless 316 Balls Regular price $23.32 AUD Regular price Sale price $23.32 AUD Unit price per 20 Available Now
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 35.000 mm + 0.000 / - 0.102 _{(1.378 in.)}	Width (B) 11.000 mm + 0.127 / - 0.000 _{(0.433 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6300-AS6 Plastic Bearings - 10x35x11 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 35.000 mm + 0.000 / - 0.102 _{(1.378 in.)}	Width (B) 11.000 mm + 0.127 / - 0.000 _{(0.433 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6300-AS6 Plastic Bearings - 10x35x11 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Each View the product page first if you are unsure.
P-6300-AS6 --- Plastic Bearings - 10x35x11 mm - Acetal with Stainless 316 Balls Sale P-6300-AS6 --- Plastic Bearings - 10x35x11 mm - Acetal with Stainless 316 Balls Regular price $23.41 AUD Regular price ~~$28.09 AUD~~ Sale price $23.41 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6001-AS6 Plastic Bearings - 12x28x8 mm - Acetal with Stainless 316 Balls 4 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6001-AS6 Plastic Bearings - 12x28x8 mm - Acetal with Stainless 316 Balls 4 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each View the product page first if you are unsure.
P-6001-AS6 --- Plastic Bearings - 12x28x8 mm - Acetal with Stainless 316 Balls P-6001-AS6 --- Plastic Bearings - 12x28x8 mm - Acetal with Stainless 316 Balls Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per 4 Available Now
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-MR3012-AS6 Plastic Bearings - 12x30x8 mm - Acetal with Stainless 316 Balls 5 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Each
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-MR3012-AS6 Plastic Bearings - 12x30x8 mm - Acetal with Stainless 316 Balls 5 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Each View the product page first if you are unsure.
P-MR3012-AS6 --- Plastic Bearings - 12x30x8 mm - Acetal with Stainless 316 Balls P-MR3012-AS6 --- Plastic Bearings - 12x30x8 mm - Acetal with Stainless 316 Balls Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per 5 Available Now
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 32.000 mm + 0.000 / - 0.102 _{(1.26 in.)}	Width (B) 10.000 mm + 0.127 / - 0.000 _{(0.394 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6201-AS6 Plastic Bearings - 12x32x10 mm - Acetal with Stainless 316 Balls 15 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 32.000 mm + 0.000 / - 0.102 _{(1.26 in.)}	Width (B) 10.000 mm + 0.127 / - 0.000 _{(0.394 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6201-AS6 Plastic Bearings - 12x32x10 mm - Acetal with Stainless 316 Balls 15 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each View the product page first if you are unsure.
P-6201-AS6 --- Plastic Bearings - 12x32x10 mm - Acetal with Stainless 316 Balls P-6201-AS6 --- Plastic Bearings - 12x32x10 mm - Acetal with Stainless 316 Balls Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per 15 Available Now
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 37.000 mm + 0.000 / - 0.102 _{(1.457 in.)}	Width (B) 12.000 mm + 0.127 / - 0.000 _{(0.472 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6301-AS6 Plastic Bearings - 12x37x12 mm - Acetal with Stainless 316 Balls 16 Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $15.05 AUD Regular price ~~$34.87 AUD~~ Sale price $15.05 AUD Unit price per Each
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 37.000 mm + 0.000 / - 0.102 _{(1.457 in.)}	Width (B) 12.000 mm + 0.127 / - 0.000 _{(0.472 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6301-AS6 Plastic Bearings - 12x37x12 mm - Acetal with Stainless 316 Balls 16 Available Now \| Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $15.05 AUD Regular price ~~$34.87 AUD~~ Sale price $15.05 AUD Unit price per Each
P-6301-AS6 --- Plastic Bearings - 12x37x12 mm - Acetal with Stainless 316 Balls Sale P-6301-AS6 --- Plastic Bearings - 12x37x12 mm - Acetal with Stainless 316 Balls Regular price $15.05 AUD Regular price ~~$34.87 AUD~~ Sale price $15.05 AUD Unit price per 16 Available Now Sale
ID (d) 12.700 mm + 0.076 / - 0.000 _{(0.5 in.)}	OD (D) 28.575 mm + 0.000 / - 0.102 _{(1.125 in.)}	Width (B) 6.350 mm + 0.127 / - 0.000 _{(0.25 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.6 Kg Static Load Rating: 19.2 Kg
Part Number: P-R8-AS6 Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Stainless 316 Balls 82 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $22.32 AUD Regular price Sale price $22.32 AUD Unit price per Each
ID (d) 12.700 mm + 0.076 / - 0.000 _{(0.5 in.)}	OD (D) 28.575 mm + 0.000 / - 0.102 _{(1.125 in.)}	Width (B) 6.350 mm + 0.127 / - 0.000 _{(0.25 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.6 Kg Static Load Rating: 19.2 Kg
Part Number: P-R8-AS6 Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Stainless 316 Balls 82 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $22.32 AUD Regular price Sale price $22.32 AUD Unit price per Each View the product page first if you are unsure.
P-R8-AS6 --- Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Stainless 316 Balls P-R8-AS6 --- Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Stainless 316 Balls Regular price $22.32 AUD Regular price Sale price $22.32 AUD Unit price per 82 Available Now
ID (d) 12.700 mm + 0.076 / - 0.000 _{(0.5 in.)}	OD (D) 28.575 mm + 0.000 / - 0.102 _{(1.125 in.)}	Width (B) 9.525 mm + 0.127 / - 0.000 _{(0.375 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-R8H-AS6 Plastic Bearings - 12.7x28.575x9.525 mm - Acetal with Stainless 316 Balls 17 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each
ID (d) 12.700 mm + 0.076 / - 0.000 _{(0.5 in.)}	OD (D) 28.575 mm + 0.000 / - 0.102 _{(1.125 in.)}	Width (B) 9.525 mm + 0.127 / - 0.000 _{(0.375 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-R8H-AS6 Plastic Bearings - 12.7x28.575x9.525 mm - Acetal with Stainless 316 Balls 17 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each View the product page first if you are unsure.
P-R8H-AS6 --- Plastic Bearings - 12.7x28.575x9.525 mm - Acetal with Stainless 316 Balls P-R8H-AS6 --- Plastic Bearings - 12.7x28.575x9.525 mm - Acetal with Stainless 316 Balls Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per 17 Available Now

Small Parts & Bearings Pty Ltd - 3A / 8 Boyland Avenue, Coopers Plains, Queensland, Australia. (abn: 79 121 865 414)
