Disc Spring Washers - 7.94x3.96x0.41 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80

Name: 1077792 | W0040-D-008-004-S4 (100 Pcs) --- Disc Spring Washers - 7.94x3.96x0.41 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80
Rating: 5.0 (1 reviews)

W0040-D-008-004-S4 (100 Pcs)

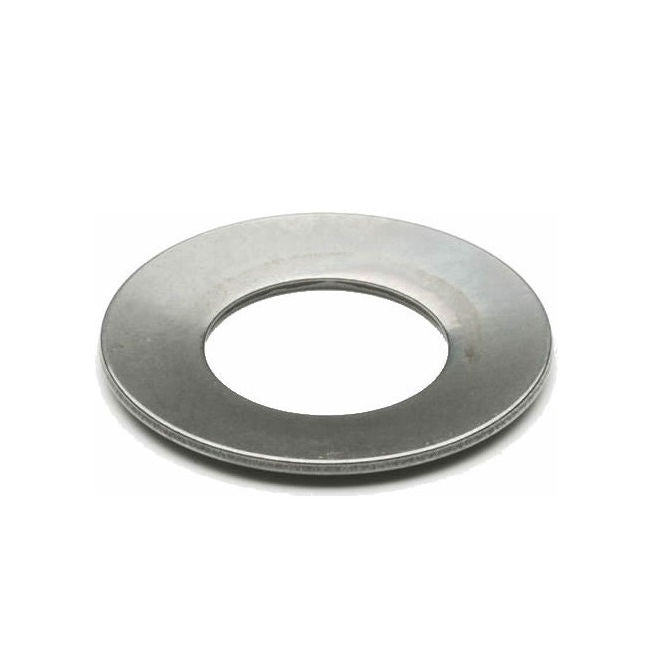

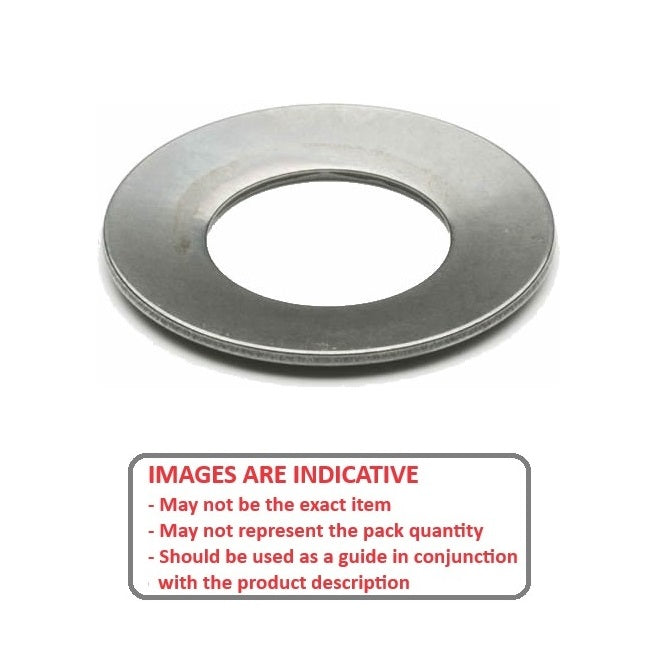

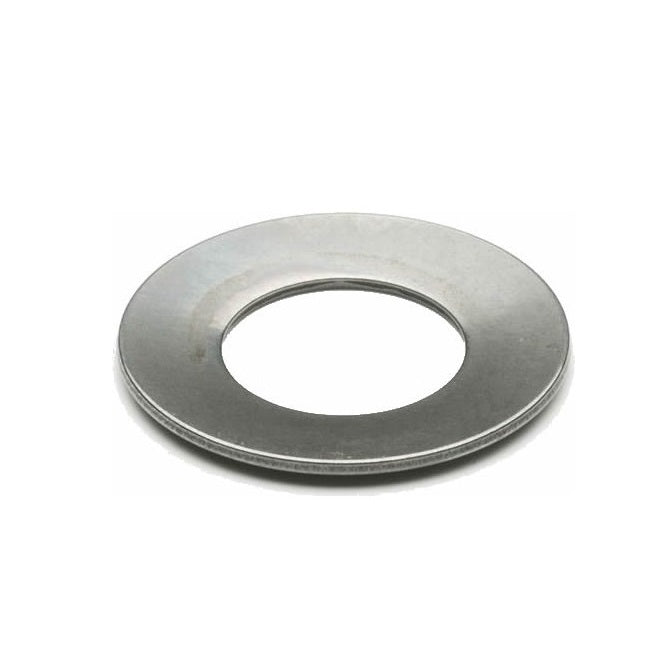

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Disc Spring - Standard - Stainless Steel

Additional resources:
Disc Spring Washers PDF
Screws

Price:

$15.95 AUD

~~$19.15 AUD~~ $15.95 AUD

per 100
Backorder
Order 50 or more pack (5000 pcs) for $14.36 AUD per 100

Product Details:

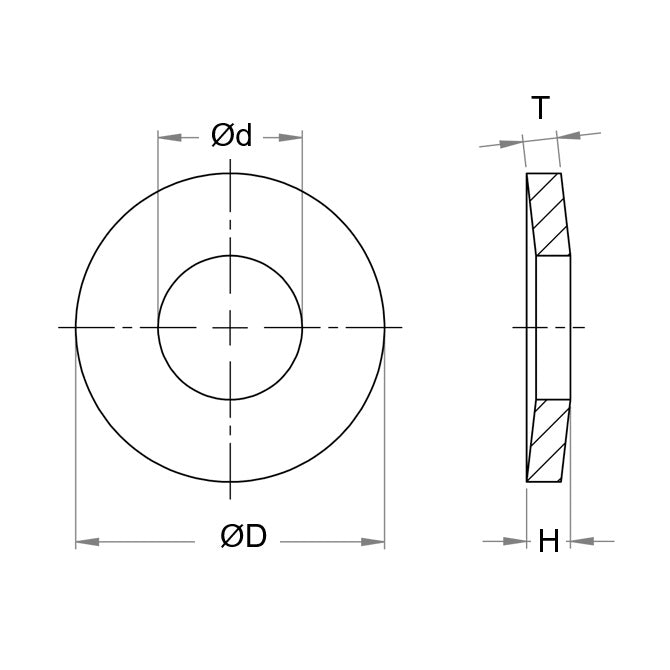

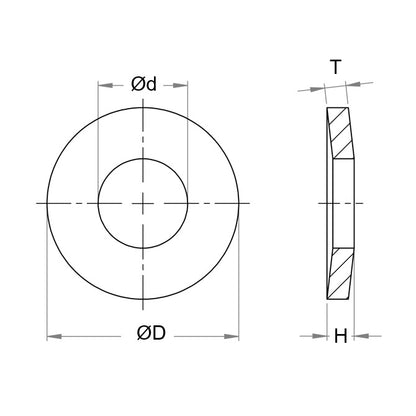

Nominal Outside Diameter (A): 7.94mm
_{+ 0.01 / + 0.07}
_{(7.94mm is 0.313 in.)}

Stainless Steel 304 (Similar to A2, 18-8) HRB80

Nominal Inside Diameter (B): 3.96mm
_{+ 0.10 / - 0.00}
_{(3.96mm is 0.156 in.)}
Stock Thickness (C): 0.41mm
_{(0.41mm is 0.016 in.)}
Load to flatten: 33.48kg
Loaded Height (L1): 0.53mm
Load at L1: 18.3kg
Free Height (E): 0.64mm
Inside Height (D): 0.23mm

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Alternative Parts Include:

A7X9-10016
A7X910016

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
