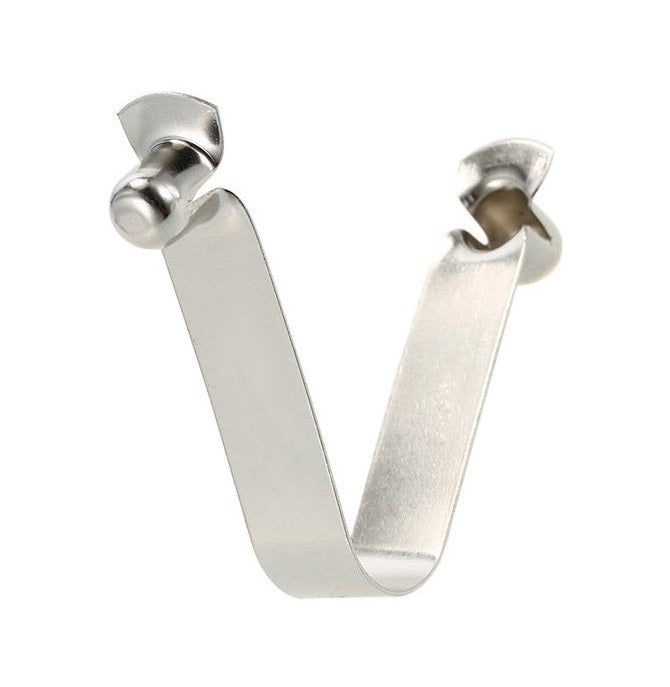

Double End Snap Buttons - 7.93x9.4x0.508 mm Snap Button

SBTN-0793-DE (Each)

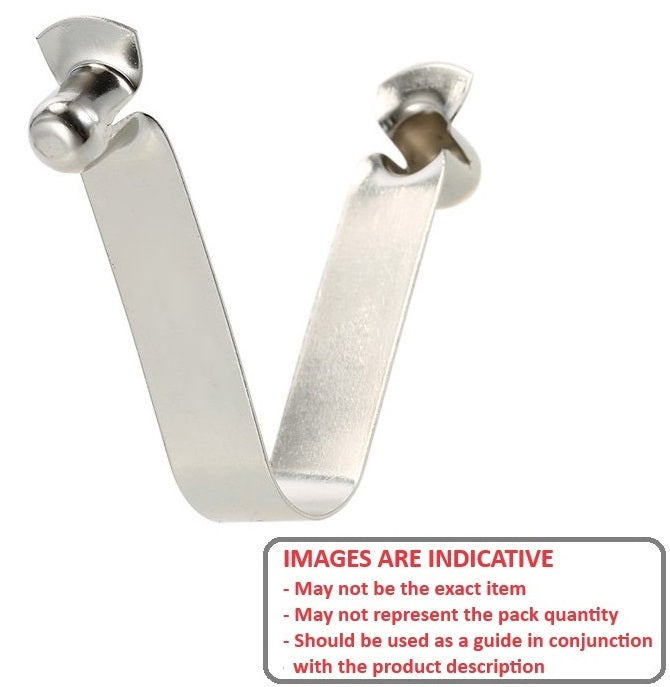

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Double End Snap Buttons - 7.93x9.4x0.508 mm
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Tubing
Price:
$10.86 AUD
$10.86 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 46 available now

Order 50 or more
for $9.77 AUD Each

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 17, 2026

5/16 inch Snap Button - 7.93x9.4x0.508 mm Double End Snap Buttons - Carbon Spring Steel - Sold Per Each:

Base Category: Snap Buttons - Double End

Top Level Category: Snap Buttons - Double End

Product Details

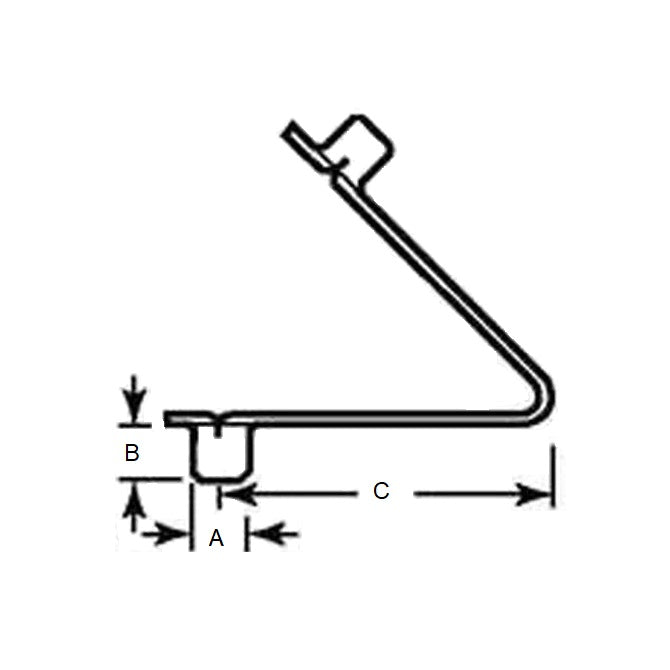

Button Diameter (A): 7.93mm
(7.93mm is 0.312 in.)

Carbon Spring Steel
  • Button Diameter (A): 7.93mm
    (7.93mm is 0.312 in.)
  • Button Height (B): 9.40mm
    (9.40mm is 0.37 in.)
  • Material Thickness: 0.508mm
    (0.508mm is 0.02 in.)
  • Clip Width: 11.18mm
  • Centre to Middle of End (C): 52.07mm
  • Use with Round Tubing: 20.8 to 28.5
  • Use with Square Tubing: 20.8 to 28.4

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Reid Tool® VA-4150
  • VA4150

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SBTN0793DE, SBTN0793
View full details
