Spring Washers - 60x75x7.1 mm Wave - Carbon Spring Steel Self Finish Washer

W0600-T-076-071-W3-C (PK-50)

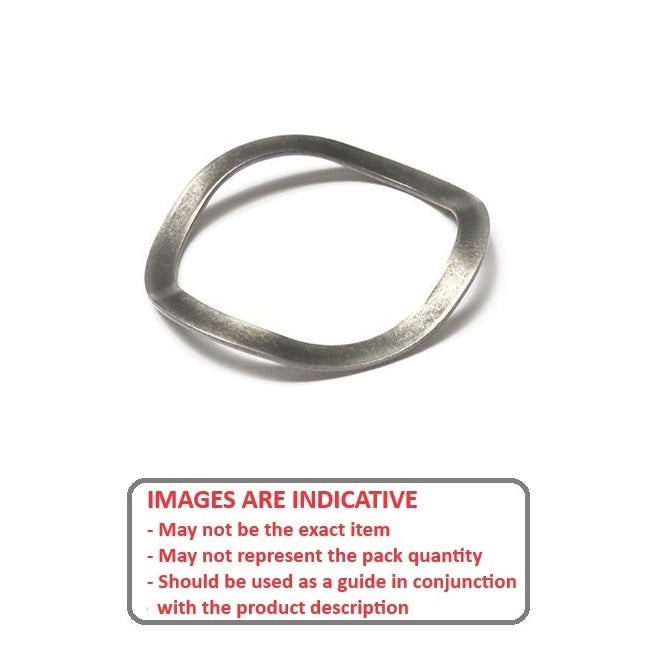

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 60x75x7.1 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Assortment Kits
Screws
Price:
$344.86 AUD
$344.86 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more pack (2500 pcs)
for $310.37 AUD per 50
Backorder now! Backorders are expected before May 30, 2026

Base Category: Washers - Spring

Top Level Category: Washers - Spring - Wave - Carbon Steel

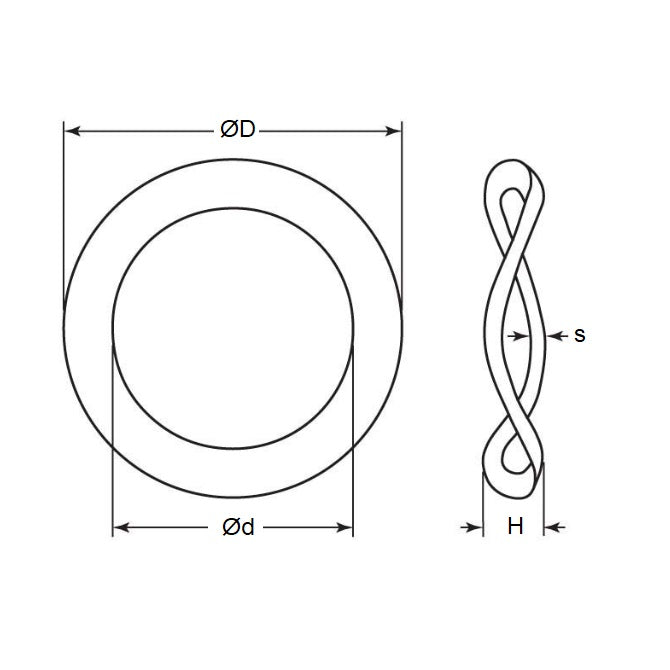

Product Details

Nominal Inside Diameter (d): 60.00mm
+ 1.7 / + 2.0
(60.00mm is 2.362 in.)

Carbon Spring Steel Self Finish
  • Nominal Inside Diameter (d): 60.00mm
    + 1.7 / + 2.0
    (60.00mm is 2.362 in.)
  • Nominal Outside Diameter (D): 75.00mm
    - 1.7 / - 2.0
    (75.00mm is 2.953 in.)
  • Nom. Height (H): 7.10mm
    (7.10mm is 0.28 in.)
  • Thickness (s): 0.60mm
  • Info: Suits OD of 6009 Bearings (Equiv EPL055)
  • Type: 3 Wave
  • Nominal Screw Size: M60, 2.3/8
  • Spring Rate: 37N/mm
  • Load at Height: 18.5 N at 1.5 mmRef.

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

  • ExaktKey EPL055
  • NoCor EPL055
  • Springmaster EPL055
  • XOSpring EPL055
  • EPL55
  • W0600T076070W3C

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
