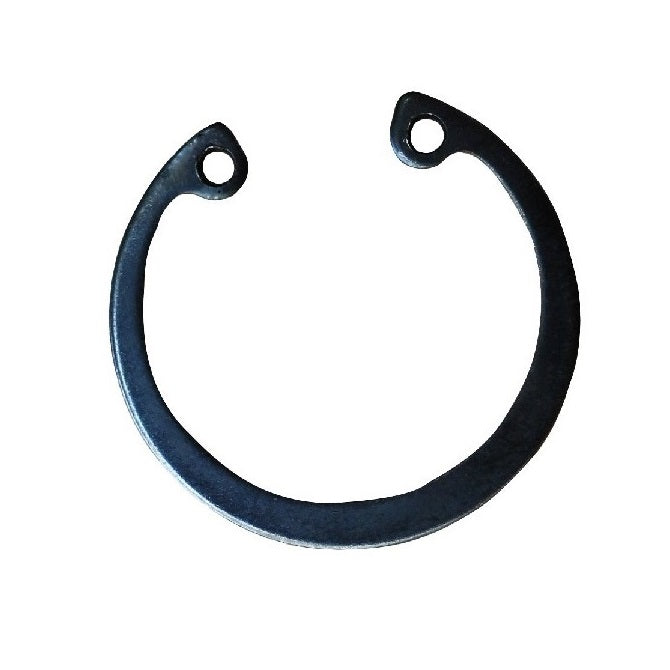

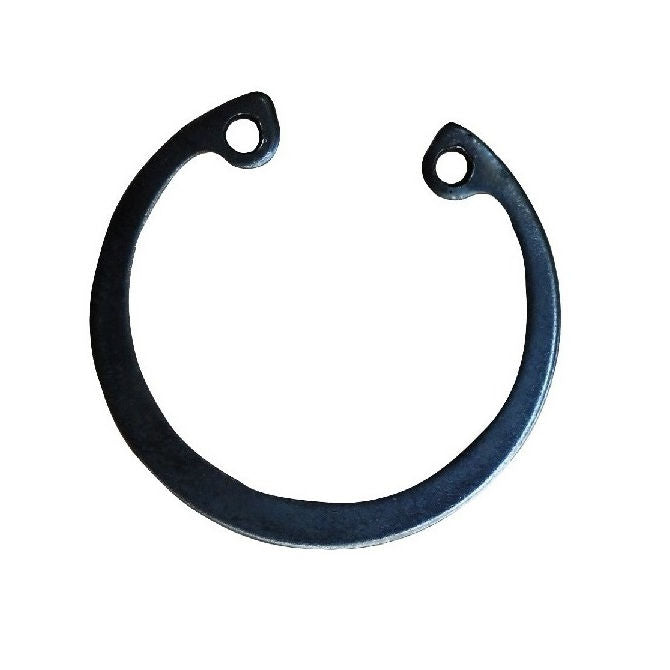

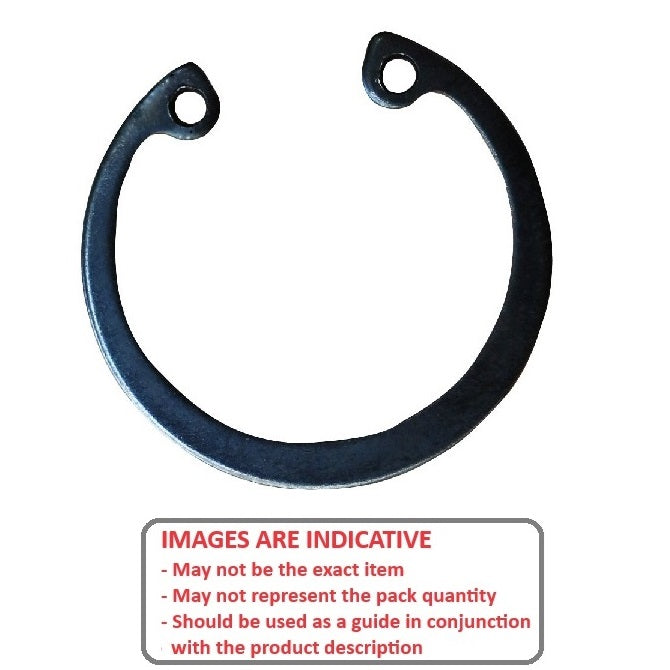

Internal Retaining Rings - 60x2x63 mm Circlips - Carbon Steel Circlip

60x2x63 mm Internal Retaining Rings - Carbon Steel - Sold Per 2:

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

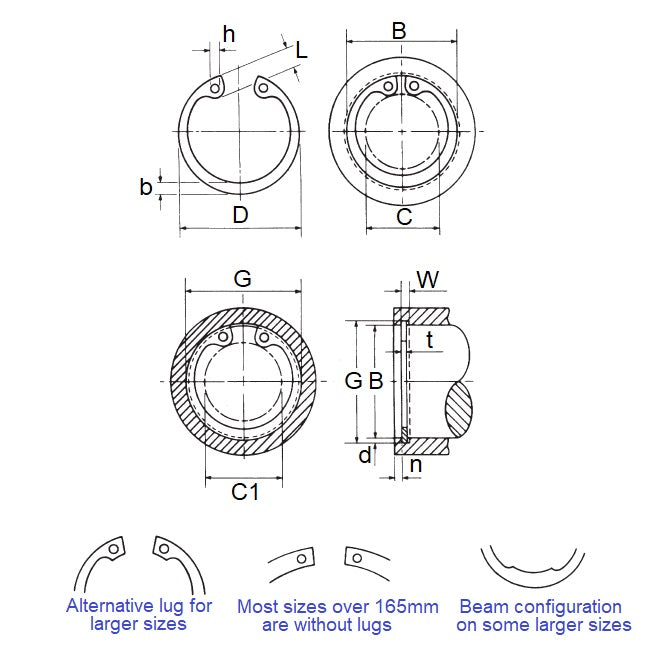

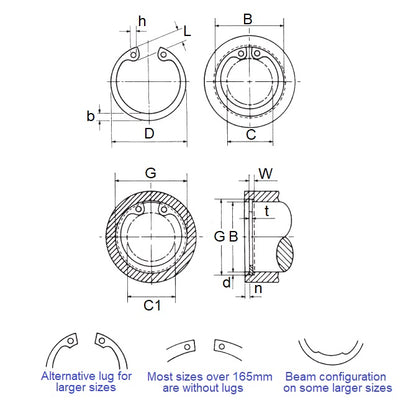

Product Details

• Housing Bore (B): 60.00mm
  _{(60.00mm is 2.362 in.)}

• Clip Thickness (T): 2.00mm
  _{+ 0.00 / - 0.07
  (2.00mm is 0.079 in.)}

• Groove Dia. (Dg): 63.00mm
  _{+ 0.30 / - 0.00
  (63.00mm is 2.48 in.)}

• Approx. Loose Circlip OD (Dr): 64.20mm
  _{+ 1.10 / - 0.46}

• Groove Width (W): 2.15mm
  _{+ 0.13 / - 0.00}

• Clearance in Bore (C): 44.70mm
• Clearance in Groove (C1): 48.40mm
• Min. Lug Diameter (h): 2.50mm
• Min. Extension (n): 4.50
• Standard: DIN472

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Ellison® 472-060
• ALTPART
• 98455A146
• Bossard® BN-822-060
• Waldes® D1300-060
• Huyett® DHO-060
• NoCor® DHO-060
• Rotor Clip® DHO-060
• Seeger® J-060
• Seeger® J60
• Seeger® J60-S
• Seeger® J60X2
• Seeger® NZT.J60
• BN822060
• 13000600
• 1300-0600APP
• 13000600APP
• D13000600APP
• DHO060
• D1300-0600
• D1300-0600APP
• 472060
• J60S
• J060
