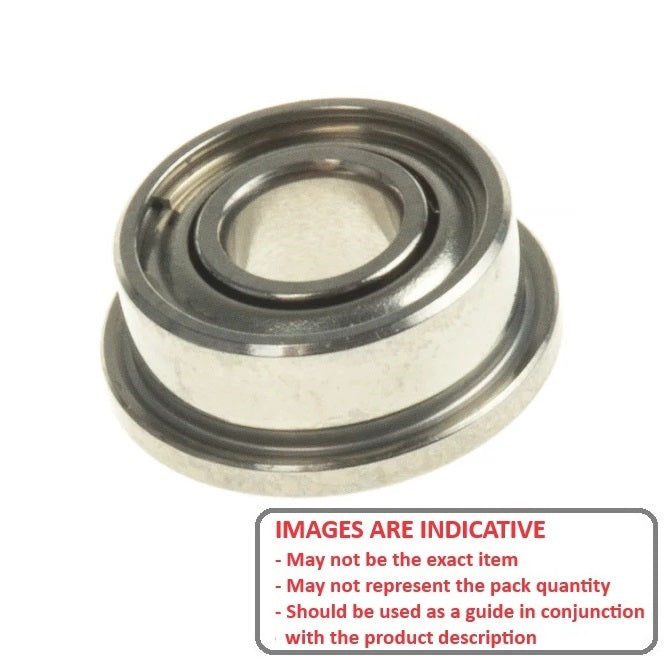

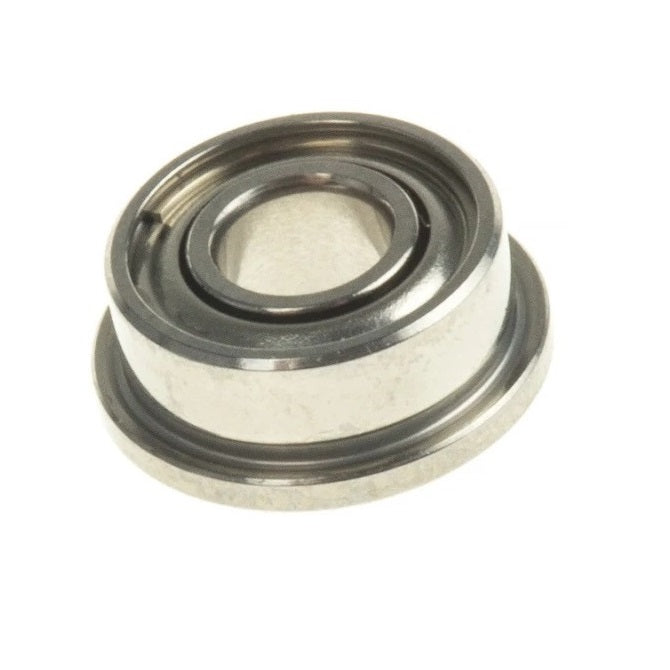

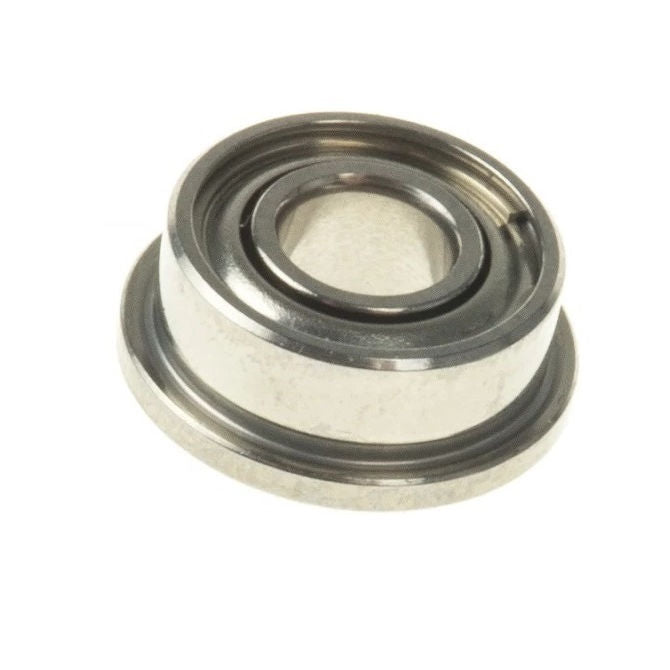

Single Row Ball Bearings - 6.35x9.525x3.175 mm Flanged - Chrome Steel SAE 52100

FR168-ZZS-MC3

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$3.32 AUD

~~$7.93 AUD~~ $3.32 AUD

Each
Qty: 80 available now
Order 50 or more for $2.99 AUD Each

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 20, 2025

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Product Details:

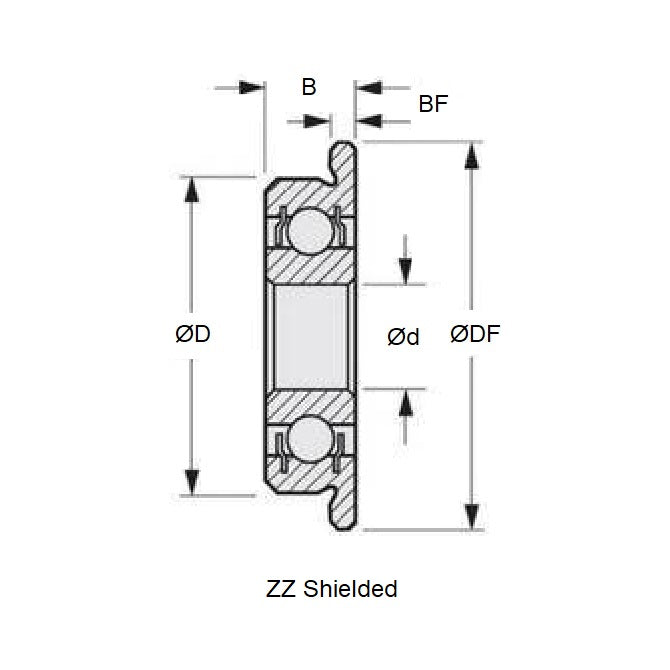

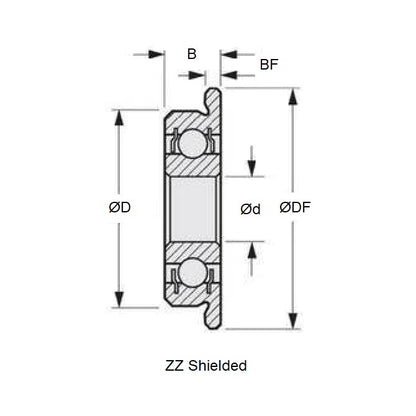

ID (d): 6.350mm
_{+ 0.000 / - 0.0075}
_{(6.350mm is 0.25 in.)}

Chrome Steel SAE 52100

OD (D): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}
Width (B): 3.175mm
_{+ 0.000 / - 0.125}
_{(3.175mm is 0.125 in.)}
Flange Diameter (DF): 10.719mm
Flange Width (BF): 0.914mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Alternative Parts Include:

MPB 614FCHH
MPB 614FC-ZZ
GRW F6350A-2Z
NTN FLRA168-ZZA
NHBB FR168PP
ISO FR168ZZ
ISO FR168-ZZ
ADR FX1-4-ZZ
FAG RF1624-ZZ
R1F614ZZ
R1F-614-ZZ
F6350A2Z
FLRA168ZZA
RF1624ZZ
614FCZZ
FR168ZZSMC3
FR168-ZZSMC3
FR168SS
FX14ZZ
FR168BASIC

Used for:

RC Car Parts
Associated - Bell Crank - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Championship Edition - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Championship Edition With STE - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Original Golden Pan - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Team Car - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 World Car - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10GT RTR - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10GT RTR With Clutch Bell - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L2 - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Oval - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Oval With Diff Bearing - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Touring Sport - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Touring Team - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L4 Oval - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10LSS - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10LW - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L3 Oval - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L4 - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L4 Upgrade Option - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12LC - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12LSS - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Digger - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator 10 - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator 12 - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator 12-CF - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator Gold - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Invader - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Invader Off-Road - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Invader Truck - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Legend - Flanged Bearing 6.35-9.53-3.18mm
Bolink - LTO - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Nitro Rail Dragster - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Sport - Flanged Bearing 6.35-9.53-3.18mm
Cobra - Nemesis - Flanged Bearing 6.35-9.53-3.18mm
Cox - GTP Gas - Flanged Bearing 6.35-9.53-3.18mm
CRC Calandra Racing Concepts - 3 - Flanged Bearing 6.35-9.53-3.18mm
CRC Calandra Racing Concepts - 3.2 R Carpet Knif - Flanged Bearing 6.35-9.53-3.18mm
Delta - Villain Cross - Flanged Bearing 6.35-9.53-3.18mm
Delta - Villain IFS - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - 510 - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - 510 Upgrade - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - Hyper-10 - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - Hyper-10 Sport - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - Pan Scale1/10 - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - STX - Flanged Bearing 6.35-9.53-3.18mm
Losi - NXT - Flanged Bearing 6.35-9.53-3.18mm
Losi - XXX4 - Flanged Bearing 6.35-9.53-3.18mm
Losi - XXX-NT Sport - Flanged Bearing 6.35-9.53-3.18mm
Parma - California Sports Truck - Flanged Bearing 6.35-9.53-3.18mm
Parma - Pro Panther - Flanged Bearing 6.35-9.53-3.18mm
Racetech - Carpet Pro - Flanged Bearing 6.35-9.53-3.18mm
Racetech - G Force - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Black Widow - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Evolution 10 3-16 Axle - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Evolution 10 LSS - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Reflex 12 - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Reflex 12 Oval - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Revolver 12 - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Spec Car - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 1/8 Axle - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 12 - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 12 SJ - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 2 - Flanged Bearing 6.35-9.53-3.18mm
Yokomo - YRX-12WE - Flanged Bearing 6.35-9.53-3.18mm
