FR168-ZZS-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Chrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Single row radial ball bearings with flanges.
  • Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

Product Data

Double shielded flanged bearing

  • ID (d) : 6.350 mm + 0.000 / - 0.0075
    (Equiv. 0.25 in.)
  • O.D. (D) 9.525 mm + 0.000 / - 0.0075
    (Equiv. 0.375 in.)
  • Width (B) 3.175 mm + 0.000 / - 0.125
    (Equiv. 0.125 in.)
  • Flange Diameter (DF) 10.719 mm
  • Flange Width (BF) 0.914 mm
  • Precision Grade Abec 1
  • Closure Type ZZS
  • Bearing Type Radial Flanged
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part FR168
  • Limiting Speed 48000
  • Cage Type Crown
  • Static Load Rating KGf 18
  • Dynamic Load Rating KGf 38
  • Radii 0.10 mm
  • Inner Shoulder (UI) 7.08mm
  • Outer Shoulder (UO) 8.85 mm
  • Number of Balls 11
  • Clearance MC3 (5 to 10)
  • Precision Grade Abec 1
  • Closure Type ZZS
  • Max Temperature 120 Deg. C
Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • Bolink® - Digger - Replacement Bearing
  • Bolink® - Eliminator 10 - Replacement Bearing
  • Bolink® - Eliminator 12 - Replacement Bearing
  • Bolink® - Eliminator 12-CF - Replacement Bearing
  • Bolink® - Eliminator Gold - Replacement Bearing
  • Bolink® - Invader - Replacement Bearing
  • Bolink® - Invader Off-Road - Replacement Bearing
  • Bolink® - Invader Truck - Replacement Bearing
  • Bolink® - Legend - Replacement Bearing
  • Bolink® - LTO - Replacement Bearing
  • Bolink® - Nitro Rail Dragster - Replacement Bearing
  • Bolink® - Sport - Replacement Bearing
  • Cobra® - Nemesis - Replacement Bearing
  • Cox® - GTP Gas - Replacement Bearing
  • CRC Calandra Racing Concepts - 3 - Replacement Bearing
  • CRC Calandra Racing Concepts - 3.2 R Carpet Knif - Replacement Bearing
  • Delta® - Villain Cross - Replacement Bearing
  • Delta® - Villain IFS - Replacement Bearing
  • Hyperdrive® - 510 - Replacement Bearing
  • Hyperdrive® - 510 Upgrade - Replacement Bearing
  • Hyperdrive® - Hyper-10 - Replacement Bearing
  • Hyperdrive® - Hyper-10 Sport - Replacement Bearing
  • Hyperdrive® - Pan Scale1/10 - Replacement Bearing
  • Hyperdrive® - STX - Replacement Bearing
  • Parma® - California Sports Truck - Replacement Bearing
  • Parma® - Pro Panther - Replacement Bearing
  • Racetech® - Carpet Pro - Replacement Bearing
  • Racetech® - G Force - Replacement Bearing
  • Team Associated® - Bell Crank - Replacement Bearing
  • Team Associated® - RC10 - Replacement Bearing
  • Team Associated® - RC10 Championship Edition - Replacement Bearing
  • Team Associated® - RC10 Championship Edition With STE - Replacement Bearing
  • Team Associated® - RC10 Original Golden Pan - Replacement Bearing
  • Team Associated® - RC10 Team Car - Replacement Bearing
  • Team Associated® - RC10 World Car - Replacement Bearing
  • Team Associated® - RC10GT RTR - Replacement Bearing
  • Team Associated® - RC10GT RTR With Clutch Bell - Replacement Bearing
  • Team Associated® - RC10L - Replacement Bearing
  • Team Associated® - RC10L2 - Replacement Bearing
  • Team Associated® - RC10L3 Oval - Replacement Bearing
  • Team Associated® - RC10L3 Oval With Diff Bearing - Replacement Bearing
  • Team Associated® - RC10L3 Touring Sport - Replacement Bearing
  • Team Associated® - RC10L3 Touring Team - Replacement Bearing
  • Team Associated® - RC10L4 Oval - Replacement Bearing
  • Team Associated® - RC10LSS - Replacement Bearing
  • Team Associated® - RC10LW - Replacement Bearing
  • Team Associated® - RC12L - Replacement Bearing
  • Team Associated® - RC12L3 Oval - Replacement Bearing
  • Team Associated® - RC12L4 - Replacement Bearing
  • Team Associated® - RC12L4 Upgrade Option - Replacement Bearing
  • Team Associated® - RC12LC - Replacement Bearing
  • Team Associated® - RC12LSS - Replacement Bearing
  • Team Losi® - NXT - Replacement Bearing
  • Team Losi® - XXX4 - Replacement Bearing
  • Team Losi® - XXX-NT Sport - Replacement Bearing
  • Trinity® - Black Widow - Replacement Bearing
  • Trinity® - Evolution 10 3-16 Axle - Replacement Bearing
  • Trinity® - Evolution 10 LSS - Replacement Bearing
  • Trinity® - Reflex 12 - Replacement Bearing
  • Trinity® - Reflex 12 Oval - Replacement Bearing
  • Trinity® - Revolver 12 - Replacement Bearing
  • Trinity® - Spec Car - Replacement Bearing
  • Trinity® - Switchblade 1/8 Axle - Replacement Bearing
  • Trinity® - Switchblade 12 - Replacement Bearing
  • Trinity® - Switchblade 12 SJ - Replacement Bearing
  • Trinity® - Switchblade 2 - Replacement Bearing
  • Yokomo® - YRX-12WE - Replacement Bearing

Cross References

  • MPB 614FCHH
  • MPB 614FC-ZZ
  • GRW F6350A-2Z
  • NTN® FLRA168-ZZA
  • NHBB® FR168PP
  • ISO FR168ZZ
  • ISO FR168-ZZ
  • ADR FX1-4-ZZ
  • FAG® RF1624-ZZ
  • R1F614ZZ
  • R1F-614-ZZ
  • RF1624ZZ
  • FR168SS
  • FR168-ZZSMC3
  • FX14ZZ
  • FR168ZZSMC3
  • FLRA168ZZA
  • F6350A2Z
  • 614FCZZ
  • FR168 Basic Size Ref
View full details

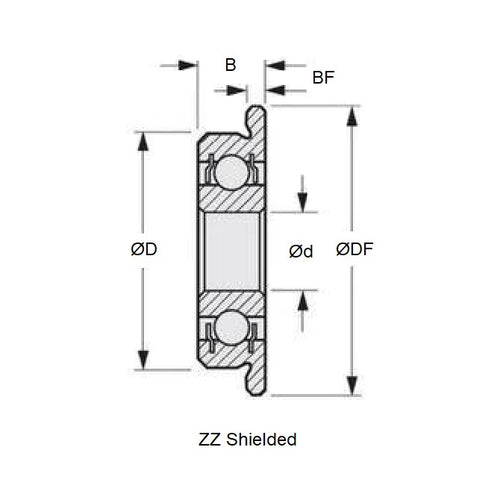

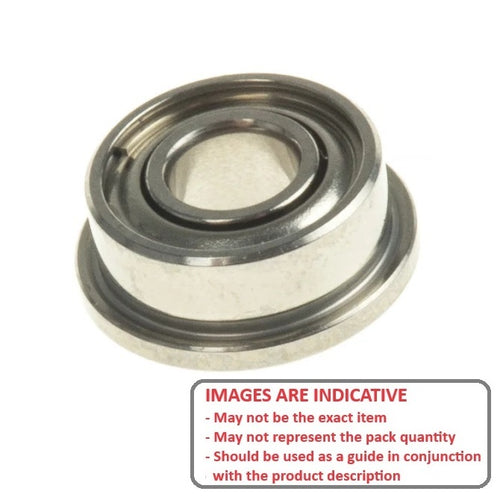

FR168-ZZS-MC3DiagramFR168-ZZS-MC3Image
