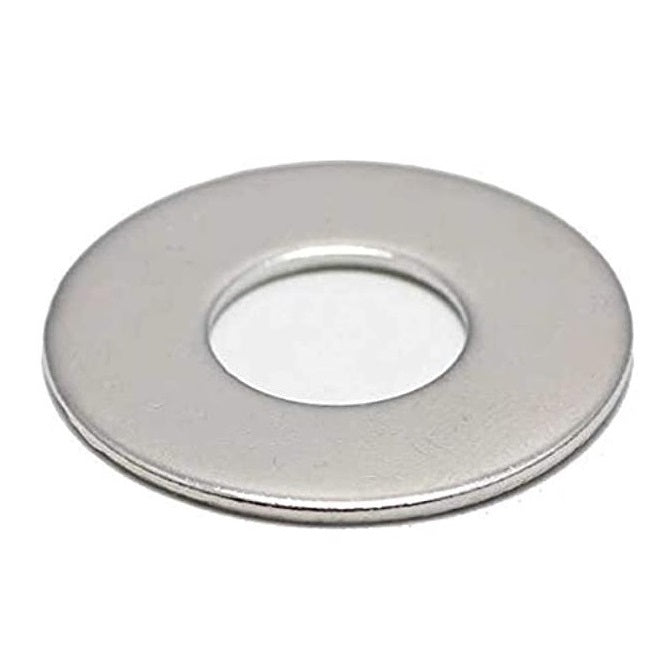

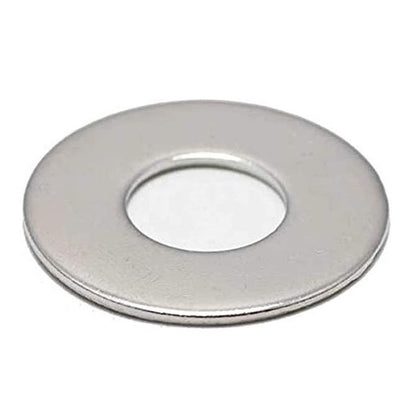

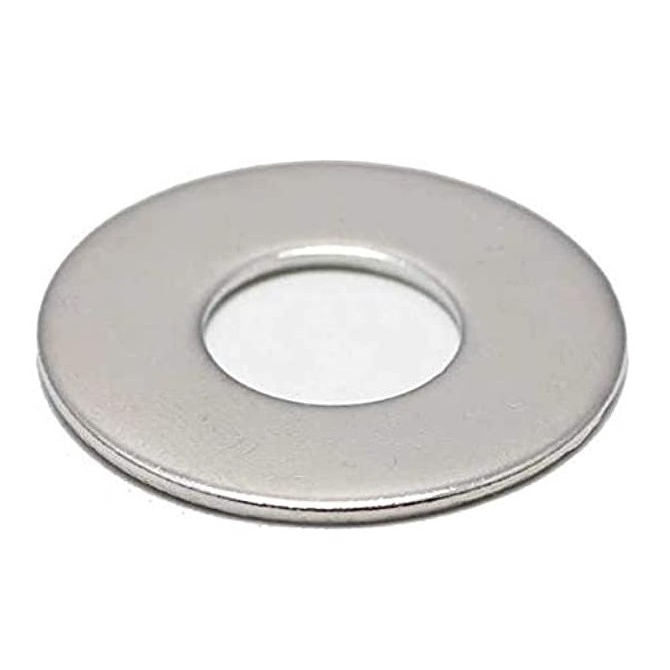

Flat Washers - 6.35x9.525x0.4 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spacer

Name: 1077193 | W0064-F-010-0040-S3 (Pack of 5) --- Flat Washers - 6.35x9.525x0.4 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spacer
Rating: 5.0 (1 reviews)

W0064-F-010-0040-S3 (Pack of 5)

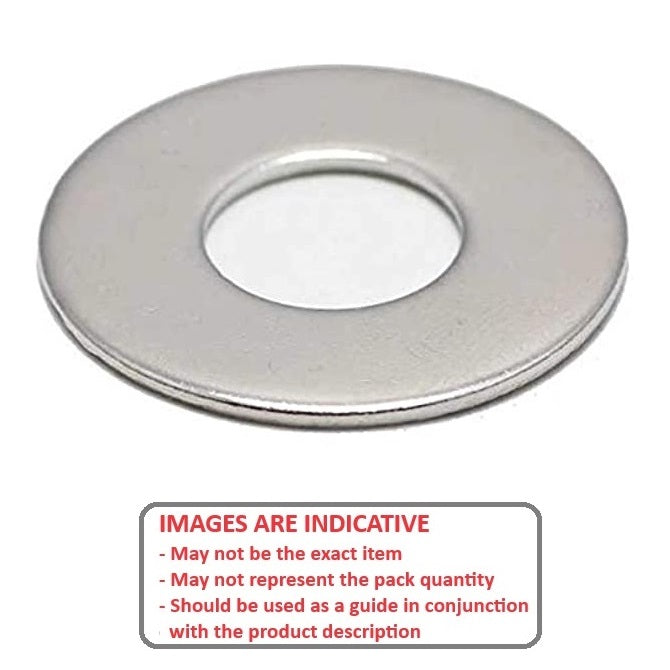

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Flat - Precision Shim - Stainless Steel

Additional resources:
Washers and Spacers PDF Catalogue
Precision Shim Washer PDF Catalogue
Screws

Price:

$6.41 AUD

Priced, Stocked and Sold Per pack of 5

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 5 (250 pcs)
for $5.77 AUD per 5 pack

Product Details

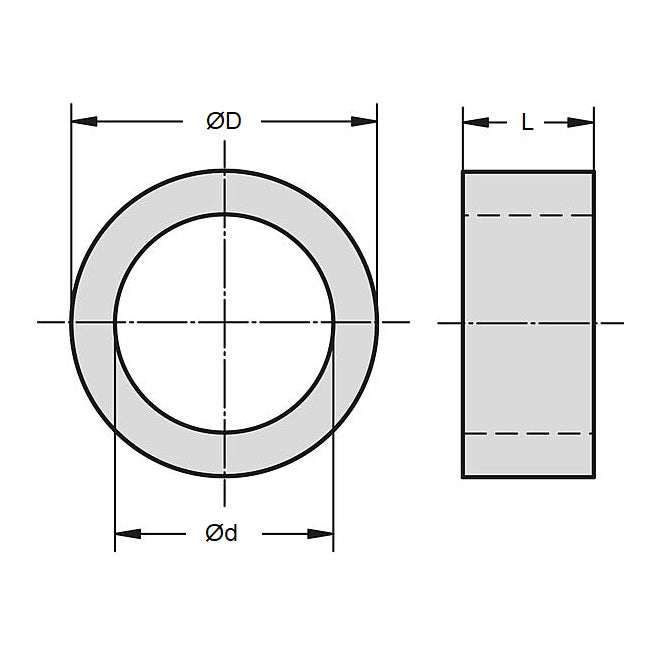

Nominal Inside Diameter (d): 6.35mm
_{+ 0.1 / - 0.0}
_{(6.35mm is 0.25 in.)}

Stainless Steel 304 (Similar to A2, 18-8) HRB80

Nominal Inside Diameter (d): 6.35mm
_{+ 0.1 / - 0.0}
_{(6.35mm is 0.25 in.)}
Nominal Outside Diameter (D): 9.525mm
_{(9.525mm is 0.375 in.)}
Thickness (T): 0.4mm
_{+ /- 0.031}
_{(0.4mm is 0.016 in.)}

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

A7X8-C08016
A7X8C08016

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0064F0100040S3, W0064F010
