Collection: Washers - Flat - Precision Shim - Stainless Steel

Washers -> Flat -> Precision Shim -> Stainless Steel

There are 148 products in the sub-categories of Washers - Flat - Precision Shim - Stainless Steel. Scroll down or follow the link to Washers - Flat - Precision Shim - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

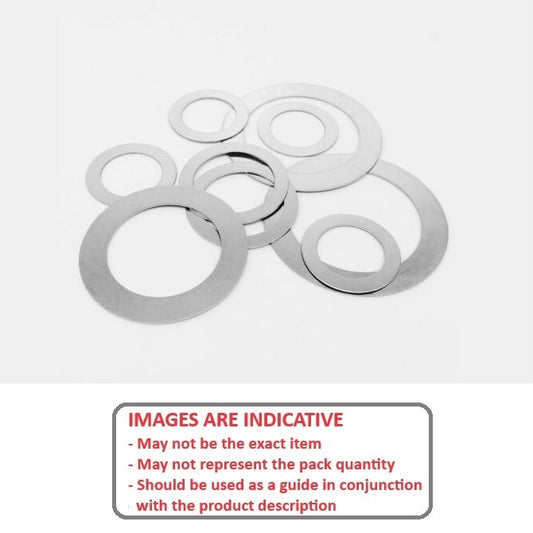

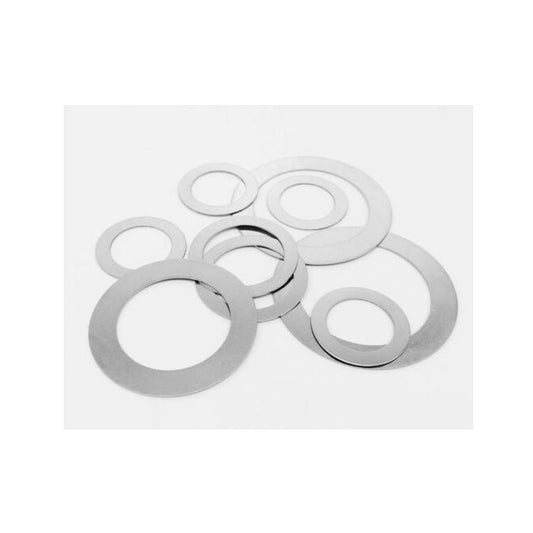

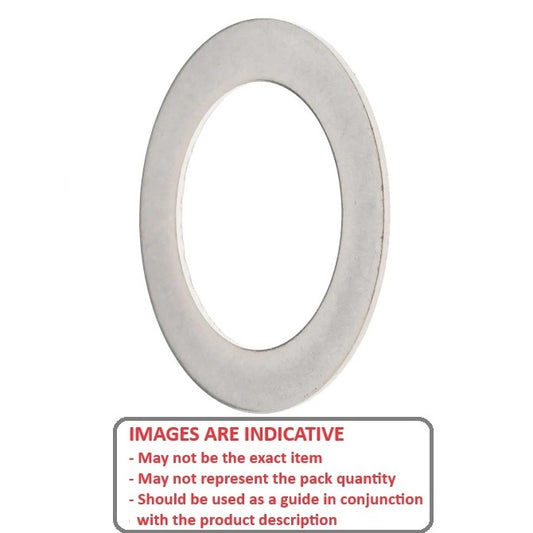

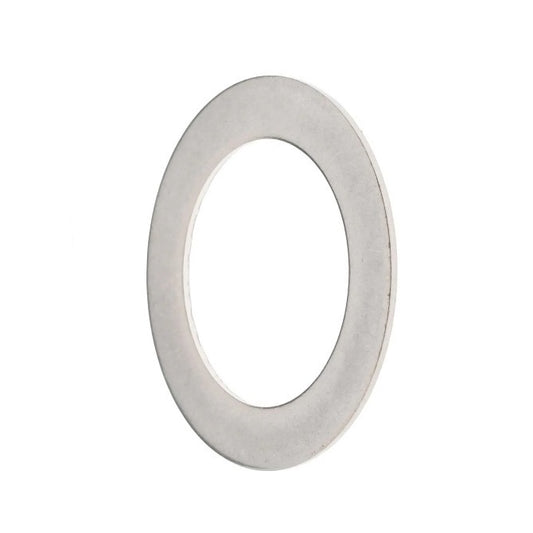

A selection of Stainless Steel Precision Shim Flat Washers. Precision Tolerances.

Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Washers - Flat - Precision Shim - Stainless Steel category on the MBA Minibearings main store.

Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Thickness (T)	Other	Indicative Image
Nominal Inside Diameter (d) 1.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.059 in.)	Nominal Outside Diameter (D) 3.000 mm _{- 0.05 / - 0.30} (Equiv. 0.118 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 1.505 mm
Part Number: W0015-FP-003-0008-S400 (PK-10) Flat Washers - 1.5x3x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 100 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $3.23 AUD Regular price ~~$6.10 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 100 units (1000 pcs) Available Now. Backorder if more than 100.
Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Thickness (T)	Other	Indicative Image
Nominal Inside Diameter (d) 1.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.059 in.)	Nominal Outside Diameter (D) 3.000 mm _{- 0.05 / - 0.30} (Equiv. 0.118 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 1.505 mm
Part Number: W0015-FP-003-0008-S400 (PK-10) Flat Washers - 1.5x3x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 100 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $3.23 AUD Regular price ~~$6.10 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 100 units (1000 pcs) Available Now. Backorder if more than 100.
W0015-FP-003-0008-S400 (PK-10) --- Flat Washers - 1.5x3x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Sale W0015-FP-003-0008-S400 (PK-10) --- Flat Washers - 1.5x3x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $3.23 AUD Regular price ~~$6.10 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 100 Available Now Sale
Nominal Inside Diameter (d) 1.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.059 in.)	Nominal Outside Diameter (D) 3.000 mm _{- 0.05 / - 0.30} (Equiv. 0.118 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 1.505 mm
Part Number: W0015-FP-003-0010-S400 (PK-10) Flat Washers - 1.5x3x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 72 units (720 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 72 units (720 pcs) Available Now. Backorder if more than 72.
Nominal Inside Diameter (d) 1.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.059 in.)	Nominal Outside Diameter (D) 3.000 mm _{- 0.05 / - 0.30} (Equiv. 0.118 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 1.505 mm
Part Number: W0015-FP-003-0010-S400 (PK-10) Flat Washers - 1.5x3x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 72 units (720 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 72 units (720 pcs) Available Now. Backorder if more than 72.
W0015-FP-003-0010-S400 (PK-10) --- Flat Washers - 1.5x3x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0015-FP-003-0010-S400 (PK-10) --- Flat Washers - 1.5x3x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 72 Available Now
Nominal Inside Diameter (d) 2.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 3.500 mm _{- 0.05 / - 0.30} (Equiv. 0.138 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.005 mm
Part Number: W0020-FP-004-0008-S400 (PK-10) Flat Washers - 2x3.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 96 units (960 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 96 units (960 pcs) Available Now. Backorder if more than 96.
Nominal Inside Diameter (d) 2.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 3.500 mm _{- 0.05 / - 0.30} (Equiv. 0.138 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.005 mm
Part Number: W0020-FP-004-0008-S400 (PK-10) Flat Washers - 2x3.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 96 units (960 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 96 units (960 pcs) Available Now. Backorder if more than 96.
W0020-FP-004-0008-S400 (PK-10) --- Flat Washers - 2x3.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0020-FP-004-0008-S400 (PK-10) --- Flat Washers - 2x3.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 96 Available Now
Nominal Inside Diameter (d) 2.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 3.500 mm _{- 0.05 / - 0.30} (Equiv. 0.138 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.005 mm
Part Number: W0020-FP-004-0010-S400 (PK-10) Flat Washers - 2x3.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 65 units (650 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 65 units (650 pcs) Available Now. Backorder if more than 65.
Nominal Inside Diameter (d) 2.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 3.500 mm _{- 0.05 / - 0.30} (Equiv. 0.138 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.005 mm
Part Number: W0020-FP-004-0010-S400 (PK-10) Flat Washers - 2x3.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 65 units (650 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 65 units (650 pcs) Available Now. Backorder if more than 65.
W0020-FP-004-0010-S400 (PK-10) --- Flat Washers - 2x3.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0020-FP-004-0010-S400 (PK-10) --- Flat Washers - 2x3.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 65 Available Now
Nominal Inside Diameter (d) 2.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 4.000 mm _{- 0.05 / - 0.10} (Equiv. 0.157 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.505 mm
Part Number: W0025-FP-004-0008-S400 (PK-10) Flat Washers - 2.5x4x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 99 units (990 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 99 units (990 pcs) Available Now. Backorder if more than 99.
Nominal Inside Diameter (d) 2.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 4.000 mm _{- 0.05 / - 0.10} (Equiv. 0.157 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.505 mm
Part Number: W0025-FP-004-0008-S400 (PK-10) Flat Washers - 2.5x4x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 99 units (990 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 99 units (990 pcs) Available Now. Backorder if more than 99.
W0025-FP-004-0008-S400 (PK-10) --- Flat Washers - 2.5x4x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0025-FP-004-0008-S400 (PK-10) --- Flat Washers - 2.5x4x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 99 Available Now
Nominal Inside Diameter (d) 2.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 4.000 mm _{- 0.05 / - 0.10} (Equiv. 0.157 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.505 mm
Part Number: W0025-FP-004-0010-S400 (PK-10) Flat Washers - 2.5x4x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 76 units (760 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 76 units (760 pcs) Available Now. Backorder if more than 76.
Nominal Inside Diameter (d) 2.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 4.000 mm _{- 0.05 / - 0.10} (Equiv. 0.157 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 2.505 mm
Part Number: W0025-FP-004-0010-S400 (PK-10) Flat Washers - 2.5x4x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 76 units (760 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 76 units (760 pcs) Available Now. Backorder if more than 76.
W0025-FP-004-0010-S400 (PK-10) --- Flat Washers - 2.5x4x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0025-FP-004-0010-S400 (PK-10) --- Flat Washers - 2.5x4x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 76 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 4.500 mm _{- 0.05 / - 0.10} (Equiv. 0.177 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.005 mm
Part Number: W0030-FP-005-0008-S400 (PK-10) Flat Washers - 3x4.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 82 units (820 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 82 units (820 pcs) Available Now. Backorder if more than 82.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 4.500 mm _{- 0.05 / - 0.10} (Equiv. 0.177 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.005 mm
Part Number: W0030-FP-005-0008-S400 (PK-10) Flat Washers - 3x4.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 82 units (820 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 82 units (820 pcs) Available Now. Backorder if more than 82.
W0030-FP-005-0008-S400 (PK-10) --- Flat Washers - 3x4.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0030-FP-005-0008-S400 (PK-10) --- Flat Washers - 3x4.5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 82 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 4.500 mm _{- 0.05 / - 0.10} (Equiv. 0.177 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.005 mm
Part Number: W0030-FP-005-0010-S400 (PK-20) Flat Washers - 3x4.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 48 units (960 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 48 units (960 pcs) Available Now. Backorder if more than 48.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 4.500 mm _{- 0.05 / - 0.10} (Equiv. 0.177 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.005 mm
Part Number: W0030-FP-005-0010-S400 (PK-20) Flat Washers - 3x4.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 48 units (960 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 48 units (960 pcs) Available Now. Backorder if more than 48.
W0030-FP-005-0010-S400 (PK-20) --- Flat Washers - 3x4.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0030-FP-005-0010-S400 (PK-20) --- Flat Washers - 3x4.5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 48 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 4.500 mm _{- 0.05 / - 0.10} (Equiv. 0.177 in.)	Thickness (T) 0.120 mm _{+ / - 0.010} (Equiv. 0.005 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.005 mm
Part Number: W0030-FP-005-0012-S400 (PK-10) Flat Washers - 3x4.5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 267 units (2670 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 267 units (2670 pcs) Available Now. Backorder if more than 267.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 4.500 mm _{- 0.05 / - 0.10} (Equiv. 0.177 in.)	Thickness (T) 0.120 mm _{+ / - 0.010} (Equiv. 0.005 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.005 mm
Part Number: W0030-FP-005-0012-S400 (PK-10) Flat Washers - 3x4.5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 267 units (2670 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 267 units (2670 pcs) Available Now. Backorder if more than 267.
W0030-FP-005-0012-S400 (PK-10) --- Flat Washers - 3x4.5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0030-FP-005-0012-S400 (PK-10) --- Flat Washers - 3x4.5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 267 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.300 / - 0.000} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 5.000 mm _{+ 0.000 / - 0.300} (Equiv. 0.197 in.)	Thickness (T) 0.500 mm _{+ 0.040 / - 0.040} (Equiv. 0.02 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Other: DIN988
Part Number: W0030-FP-005-0050-S4 (PK-25) Flat Washers - 3x5x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 20 units (500 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $24.86 AUD Regular price Sale price $24.86 AUD Unit price per Priced, Stocked and Sold Per 25 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (500 pcs) Available Now. Backorder if more than 20.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.300 / - 0.000} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 5.000 mm _{+ 0.000 / - 0.300} (Equiv. 0.197 in.)	Thickness (T) 0.500 mm _{+ 0.040 / - 0.040} (Equiv. 0.02 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Other: DIN988
Part Number: W0030-FP-005-0050-S4 (PK-25) Flat Washers - 3x5x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 20 units (500 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $24.86 AUD Regular price Sale price $24.86 AUD Unit price per Priced, Stocked and Sold Per 25 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (500 pcs) Available Now. Backorder if more than 20.
W0030-FP-005-0050-S4 (PK-25) --- Flat Washers - 3x5x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0030-FP-005-0050-S4 (PK-25) --- Flat Washers - 3x5x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $24.86 AUD Regular price Sale price $24.86 AUD Unit price per Priced, Stocked and Sold Per 25 Units Excludes GST and overseas Taxes & Duties 20 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.100 mm _{+ 0.000 / - 0.030} (Equiv. 0.004 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0010-S4 (PK-100) Flat Washers - 3x6x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 8 units (800 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 8 units (800 pcs) Available Now. Backorder if more than 8.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.100 mm _{+ 0.000 / - 0.030} (Equiv. 0.004 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0010-S4 (PK-100) Flat Washers - 3x6x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 8 units (800 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 8 units (800 pcs) Available Now. Backorder if more than 8.
W0030-FP-006-0010-S4 (PK-100) --- Flat Washers - 3x6x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0030-FP-006-0010-S4 (PK-100) --- Flat Washers - 3x6x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 8 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.250 mm _{+ 0.000 / - 0.040} (Equiv. 0.01 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0025-S4 (PK-100) Flat Washers - 3x6x0.25 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 28 units (2800 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 28 units (2800 pcs) Available Now. Backorder if more than 28.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.250 mm _{+ 0.000 / - 0.040} (Equiv. 0.01 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0025-S4 (PK-100) Flat Washers - 3x6x0.25 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 28 units (2800 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 28 units (2800 pcs) Available Now. Backorder if more than 28.
W0030-FP-006-0025-S4 (PK-100) --- Flat Washers - 3x6x0.25 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0030-FP-006-0025-S4 (PK-100) --- Flat Washers - 3x6x0.25 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 28 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.300 mm _{+ 0.000 / - 0.050} (Equiv. 0.012 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0030-S4 (PK-100) Flat Washers - 3x6x0.3 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 298 units (29800 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 298 units (29800 pcs) Available Now. Backorder if more than 298.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.300 mm _{+ 0.000 / - 0.050} (Equiv. 0.012 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0030-S4 (PK-100) Flat Washers - 3x6x0.3 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 298 units (29800 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 298 units (29800 pcs) Available Now. Backorder if more than 298.
W0030-FP-006-0030-S4 (PK-100) --- Flat Washers - 3x6x0.3 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0030-FP-006-0030-S4 (PK-100) --- Flat Washers - 3x6x0.3 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 298 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.500 mm _{+ 0.000 / - 0.050} (Equiv. 0.02 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0050-S4 (PK-100) Flat Washers - 3x6x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 7 units (700 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 7 units (700 pcs) Available Now. Backorder if more than 7.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.500 mm _{+ 0.000 / - 0.050} (Equiv. 0.02 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0050-S4 (PK-100) Flat Washers - 3x6x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 7 units (700 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 7 units (700 pcs) Available Now. Backorder if more than 7.
W0030-FP-006-0050-S4 (PK-100) --- Flat Washers - 3x6x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0030-FP-006-0050-S4 (PK-100) --- Flat Washers - 3x6x0.5 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 7 Available Now
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 1.000 mm _{+ 0.000 / - 0.050} (Equiv. 0.039 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0100-S4 (PK-100) Flat Washers - 3x6x1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 13 units (1300 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 13 units (1300 pcs) Available Now. Backorder if more than 13.
Nominal Inside Diameter (d) 3.000 mm _{+ 0.03 / + 0.15} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.03 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 1.000 mm _{+ 0.000 / - 0.050} (Equiv. 0.039 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Min. Actual ID (Ref): 3.03 mm
Part Number: W0030-FP-006-0100-S4 (PK-100) Flat Washers - 3x6x1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 13 units (1300 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 13 units (1300 pcs) Available Now. Backorder if more than 13.
W0030-FP-006-0100-S4 (PK-100) --- Flat Washers - 3x6x1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0030-FP-006-0100-S4 (PK-100) --- Flat Washers - 3x6x1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 13 Available Now
Nominal Inside Diameter (d) 3.175 mm _{+ 0.000 / + 0.279} (Equiv. 0.125 in.)	Nominal Outside Diameter (D) 4.763 mm _{+/- 0.051} (Equiv. 0.188 in.)	Thickness (T) 0.025 mm _{+ 0.008 / - 0.008} (Equiv. 0.001 in.)	Other Rockwell B70
Material: Stainless Steel 316 (Similar to A4, 18-10) Grade: Precision Other: DIN988 Min. Actual ID (Ref): 3.175 mm
Part Number: W0032-FP-005-0003-S6 (Each) Flat Washers - 3.175x4.763x0.025 mm Precision Shim - Stainless Steel 316 Similar to A4, 18-10 Washer 25 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 25 Available Now. Backorder if more than 25.
Nominal Inside Diameter (d) 3.175 mm _{+ 0.000 / + 0.279} (Equiv. 0.125 in.)	Nominal Outside Diameter (D) 4.763 mm _{+/- 0.051} (Equiv. 0.188 in.)	Thickness (T) 0.025 mm _{+ 0.008 / - 0.008} (Equiv. 0.001 in.)	Other Rockwell B70
Material: Stainless Steel 316 (Similar to A4, 18-10) Grade: Precision Other: DIN988 Min. Actual ID (Ref): 3.175 mm
Part Number: W0032-FP-005-0003-S6 (Each) Flat Washers - 3.175x4.763x0.025 mm Precision Shim - Stainless Steel 316 Similar to A4, 18-10 Washer 25 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 25 Available Now. Backorder if more than 25.
W0032-FP-005-0003-S6 (Each) --- Flat Washers - 3.175x4.763x0.025 mm Precision Shim - Stainless Steel 316 Similar to A4, 18-10 Washer W0032-FP-005-0003-S6 (Each) --- Flat Washers - 3.175x4.763x0.025 mm Precision Shim - Stainless Steel 316 Similar to A4, 18-10 Washer Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 25 Available Now
Nominal Inside Diameter (d) 3.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.138 in.)	Nominal Outside Diameter (D) 5.000 mm _{- 0.05 / - 0.10} (Equiv. 0.197 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.505 mm
Part Number: W0035-FP-005-0008-S400 (PK-20) Flat Washers - 3.5x5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 50 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.05 AUD Regular price ~~$9.49 AUD~~ Sale price $5.05 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 50 units (1000 pcs) Available Now. Backorder if more than 50.
Nominal Inside Diameter (d) 3.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.138 in.)	Nominal Outside Diameter (D) 5.000 mm _{- 0.05 / - 0.10} (Equiv. 0.197 in.)	Thickness (T) 0.080 mm _{+ / - 0.010} (Equiv. 0.003 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.505 mm
Part Number: W0035-FP-005-0008-S400 (PK-20) Flat Washers - 3.5x5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 50 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $5.05 AUD Regular price ~~$9.49 AUD~~ Sale price $5.05 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 50 units (1000 pcs) Available Now. Backorder if more than 50.
W0035-FP-005-0008-S400 (PK-20) --- Flat Washers - 3.5x5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Sale W0035-FP-005-0008-S400 (PK-20) --- Flat Washers - 3.5x5x0.08 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $5.05 AUD Regular price ~~$9.49 AUD~~ Sale price $5.05 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 50 Available Now Sale
Nominal Inside Diameter (d) 3.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.138 in.)	Nominal Outside Diameter (D) 5.000 mm _{- 0.05 / - 0.10} (Equiv. 0.197 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.505 mm
Part Number: W0035-FP-005-0010-S400 (PK-10) Flat Washers - 3.5x5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 96 units (960 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 96 units (960 pcs) Available Now. Backorder if more than 96.
Nominal Inside Diameter (d) 3.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.138 in.)	Nominal Outside Diameter (D) 5.000 mm _{- 0.05 / - 0.10} (Equiv. 0.197 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.505 mm
Part Number: W0035-FP-005-0010-S400 (PK-10) Flat Washers - 3.5x5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 96 units (960 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 96 units (960 pcs) Available Now. Backorder if more than 96.
W0035-FP-005-0010-S400 (PK-10) --- Flat Washers - 3.5x5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0035-FP-005-0010-S400 (PK-10) --- Flat Washers - 3.5x5x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 96 Available Now
Nominal Inside Diameter (d) 3.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.138 in.)	Nominal Outside Diameter (D) 5.000 mm _{- 0.05 / - 0.10} (Equiv. 0.197 in.)	Thickness (T) 0.120 mm _{+ / - 0.010} (Equiv. 0.005 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.505 mm
Part Number: W0035-FP-005-0012-S400 (PK-20) Flat Washers - 3.5x5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 49 units (980 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 49 units (980 pcs) Available Now. Backorder if more than 49.
Nominal Inside Diameter (d) 3.500 mm _{+ 0.005 / + 0.30} (Equiv. 0.138 in.)	Nominal Outside Diameter (D) 5.000 mm _{- 0.05 / - 0.10} (Equiv. 0.197 in.)	Thickness (T) 0.120 mm _{+ / - 0.010} (Equiv. 0.005 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 3.505 mm
Part Number: W0035-FP-005-0012-S400 (PK-20) Flat Washers - 3.5x5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 49 units (980 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 49 units (980 pcs) Available Now. Backorder if more than 49.
W0035-FP-005-0012-S400 (PK-20) --- Flat Washers - 3.5x5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0035-FP-005-0012-S400 (PK-20) --- Flat Washers - 3.5x5x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 49 Available Now
Nominal Inside Diameter (d) 4.000 mm _{+ 0.300 / - 0.000} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 5.000 mm _{+ 0.000 / - 0.300} (Equiv. 0.197 in.)	Thickness (T) 0.200 mm _{+ 0.030 / - 0.030} (Equiv. 0.008 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Other: DIN988
Part Number: W0040-FP-005-0020-S4 (PK-5) Flat Washers - 4x5x0.2 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 6 units (30 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 6 units (30 pcs) Available Now. Backorder if more than 6.
Nominal Inside Diameter (d) 4.000 mm _{+ 0.300 / - 0.000} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 5.000 mm _{+ 0.000 / - 0.300} (Equiv. 0.197 in.)	Thickness (T) 0.200 mm _{+ 0.030 / - 0.030} (Equiv. 0.008 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Other: DIN988
Part Number: W0040-FP-005-0020-S4 (PK-5) Flat Washers - 4x5x0.2 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 6 units (30 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 6 units (30 pcs) Available Now. Backorder if more than 6.
W0040-FP-005-0020-S4 (PK-5) --- Flat Washers - 4x5x0.2 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0040-FP-005-0020-S4 (PK-5) --- Flat Washers - 4x5x0.2 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 6 Available Now
Nominal Inside Diameter (d) 4.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.05 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 4.005 mm
Part Number: W0040-FP-006-0010-S400 (PK-20) Flat Washers - 4x6x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 20 units (400 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (400 pcs) Available Now. Backorder if more than 20.
Nominal Inside Diameter (d) 4.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.05 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.100 mm _{+ / - 0.010} (Equiv. 0.004 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 4.005 mm
Part Number: W0040-FP-006-0010-S400 (PK-20) Flat Washers - 4x6x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 20 units (400 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (400 pcs) Available Now. Backorder if more than 20.
W0040-FP-006-0010-S400 (PK-20) --- Flat Washers - 4x6x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0040-FP-006-0010-S400 (PK-20) --- Flat Washers - 4x6x0.1 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 20 Available Now
Nominal Inside Diameter (d) 4.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.05 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.120 mm _{+ / - 0.010} (Equiv. 0.005 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 4.005 mm
Part Number: W0040-FP-006-0012-S400 (PK-20) Flat Washers - 4x6x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 175 units (3500 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 175 units (3500 pcs) Available Now. Backorder if more than 175.
Nominal Inside Diameter (d) 4.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.05 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.120 mm _{+ / - 0.010} (Equiv. 0.005 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 4.005 mm
Part Number: W0040-FP-006-0012-S400 (PK-20) Flat Washers - 4x6x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 175 units (3500 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 175 units (3500 pcs) Available Now. Backorder if more than 175.
W0040-FP-006-0012-S400 (PK-20) --- Flat Washers - 4x6x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0040-FP-006-0012-S400 (PK-20) --- Flat Washers - 4x6x0.12 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 175 Available Now
Nominal Inside Diameter (d) 4.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.05 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.150 mm _{+ / - 0.010} (Equiv. 0.006 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 4.005 mm
Part Number: W0040-FP-006-0015-S400 (PK-20) Flat Washers - 4x6x0.15 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 401 units (8020 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 401 units (8020 pcs) Available Now. Backorder if more than 401.
Nominal Inside Diameter (d) 4.000 mm _{+ 0.005 / + 0.30} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 6.000 mm _{- 0.05 / - 0.15} (Equiv. 0.236 in.)	Thickness (T) 0.150 mm _{+ / - 0.010} (Equiv. 0.006 in.)
Material: Stainless Steel AISI 400 Series Heat Treated Grade: Precision Min. Actual ID (Ref): 4.005 mm
Part Number: W0040-FP-006-0015-S400 (PK-20) Flat Washers - 4x6x0.15 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer 401 units (8020 pcs) Available Now \| Further orders can be expected around Sun, Feb 01, 2026 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 401 units (8020 pcs) Available Now. Backorder if more than 401.
W0040-FP-006-0015-S400 (PK-20) --- Flat Washers - 4x6x0.15 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer W0040-FP-006-0015-S400 (PK-20) --- Flat Washers - 4x6x0.15 mm Precision Shim - Stainless Steel AISI 400 Series Heat Treated Washer Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 401 Available Now
Nominal Inside Diameter (d) 4.000 mm _{+ 0.10 / - 0.00} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.00 / - 0.10} (Equiv. 0.315 in.)	Thickness (T) 0.100 mm _{+ 0.00 / - 0.12} (Equiv. 0.004 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Other: DIN988
Part Number: W0040-FP-008-0010-S4 (PK-100) Flat Washers - 4x8x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 30 units (3000 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 30 units (3000 pcs) Available Now. Backorder if more than 30.
Nominal Inside Diameter (d) 4.000 mm _{+ 0.10 / - 0.00} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 8.000 mm _{+ 0.00 / - 0.10} (Equiv. 0.315 in.)	Thickness (T) 0.100 mm _{+ 0.00 / - 0.12} (Equiv. 0.004 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Grade: Precision Other: DIN988
Part Number: W0040-FP-008-0010-S4 (PK-100) Flat Washers - 4x8x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer 30 units (3000 pcs) Available Now \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 30 units (3000 pcs) Available Now. Backorder if more than 30.
W0040-FP-008-0010-S4 (PK-100) --- Flat Washers - 4x8x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer W0040-FP-008-0010-S4 (PK-100) --- Flat Washers - 4x8x0.1 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 30 Available Now

Country/region

Small Parts & Bearings

Collection: Washers - Flat - Precision Shim - Stainless Steel

Category Details

Filter

Filter

Subscribe to our emails
