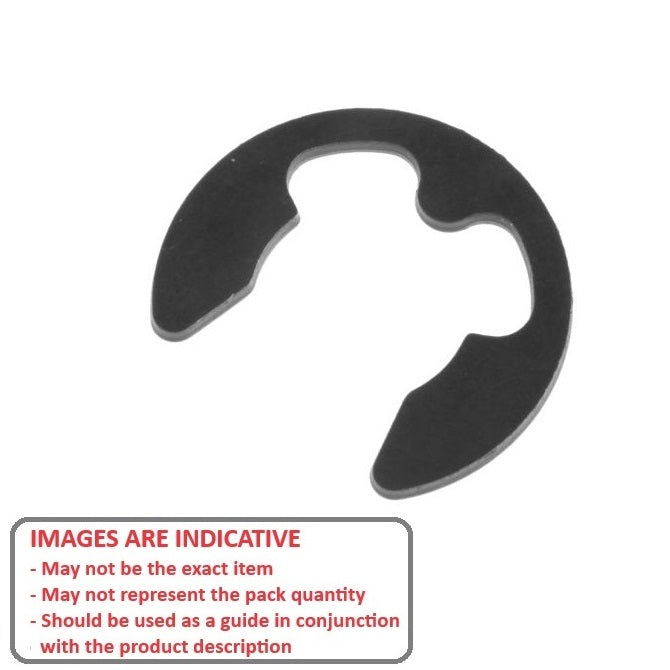

ECL-0053-0064A-C (20 Pcs)
E-Clips - 6.35 mm x 5.33 mm x 0.64 mm
E-Clip Applicators
Qty: 23 available now (460 pcs)
Order 50 or more (1000 pcs) for $5.11 AUD per 20
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details:Additional stock available from USA subject to Prior Sale = 134081
Minimum Rec. Shaft Dia (S): 6.35mm
+2.54/-0.00
Carbon Steel
- Groove Dia. (Dg): 5.33mm
+0.076/-0.000
- Clip Thickness (T): 0.64mm
+/-0.050
- Clip OD Loose (D1): 13.39mm
- Groove Width (W): 0.74mm
- Maximum Rec. Shaft Dia (S): 8.89
- Clip OD in groove (C1): 13.72mm
- Min. Extension (n): 1.20
- Additional Info: RRA-150 Applicator
- Standard: MIL-16633
Brand: MBA
Country of Origin: US
Alternatives: 205.0000.0003, 97431A300, E-025, N1500-0025, REE
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
