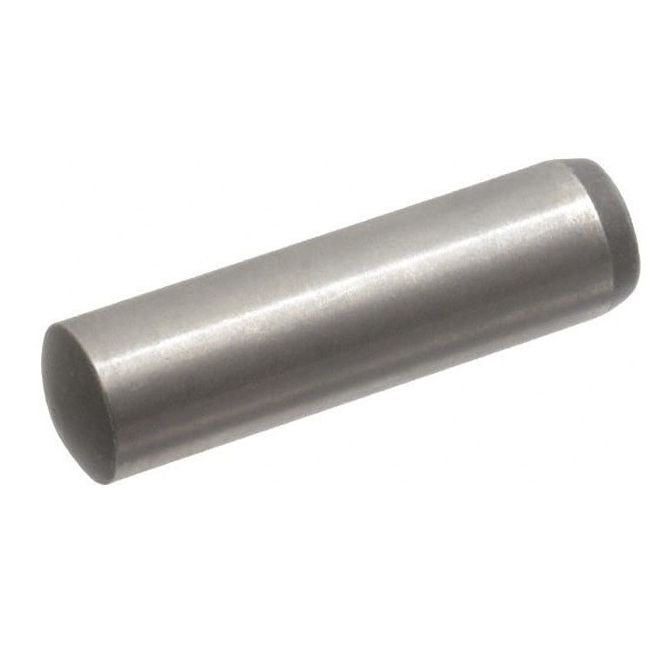

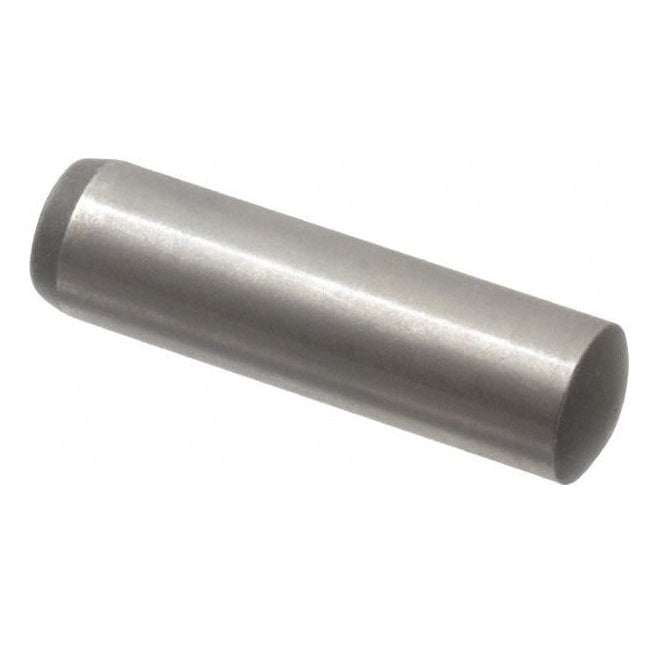

Dowel Pins - 6.35x22.23 Standard - Steel Alloy - Heat Treated and Ground Rc 58-62 Pin

Name: 1078774 | DP064-022-CH-1 (Each) --- Dowel Pins - 6.35x22.23 Standard - Steel Alloy - Heat Treated and Ground Rc 58-62 Pin
Rating: 5.0 (1 reviews)

DP064-022-CH-1 (Each)

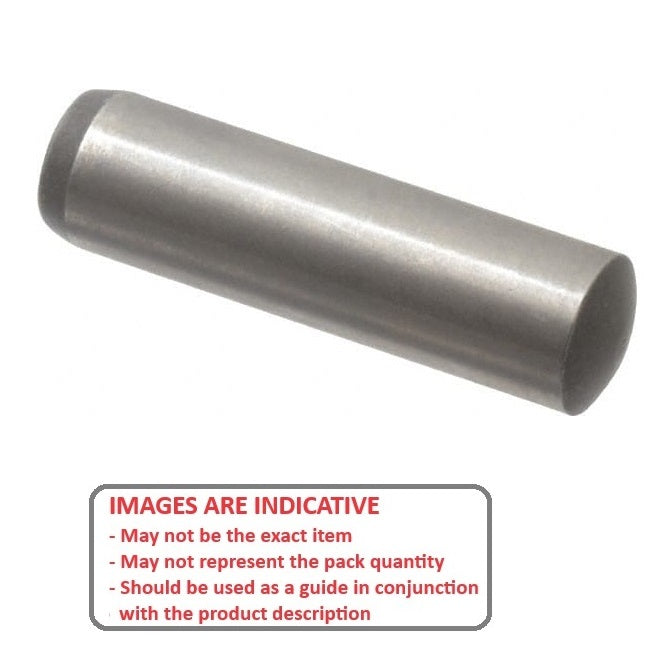

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

NoCor

Store Name: Small Parts & Bearings

Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$3.34 AUD

~~$4.00 AUD~~ $3.34 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 66 available now

Order 50 or more
for $3.01 AUD Each

Product Details

Deleted Item. Available while stocks last.

Diameter (D): 6.350mm
_{+ 0.006 / + 0.015}
_{(6.350mm is 0.25 in.)}

Steel Alloy - Heat Treated and Ground Rc 58-62

Diameter (D): 6.350mm
_{+ 0.006 / + 0.015}
_{(6.350mm is 0.25 in.)}
Length (L): 22.23mm
_{+/- 0.420}
_{(22.23mm is 0.875 in.)}
Approx. Overall Length: 22.23mm
_{+/- 0.420}
_{(22.23mm is 0.875 in.)}

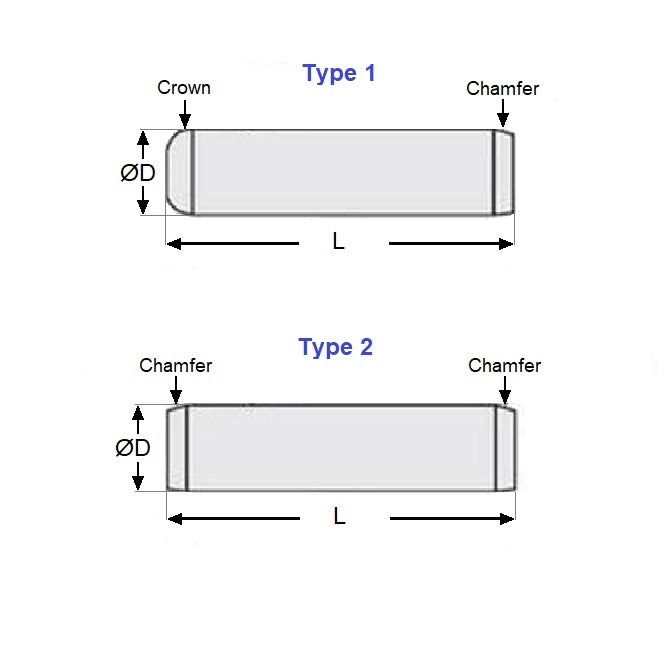

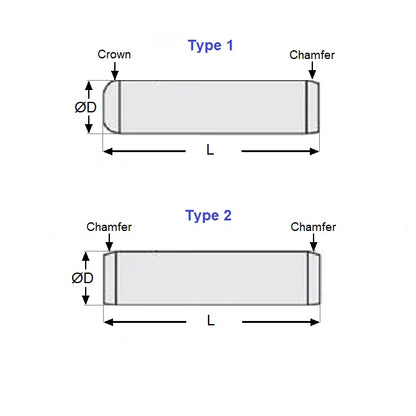

Type: 1 (Chamfer One End)
Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: TW

Product Compliance and Data

Similar to

Brighton Best® 241166
Reid Tool® BRB-241166P
NoCor® DOW-250-0875
BRB241166P
DOW2500875
A9Q32-0828
A9Q320828

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DP064022CH1, DP064022
