Ball Lock Pins - 6.35x33.02 mm - Carbon Steel

BLP-064-0330-K1-C

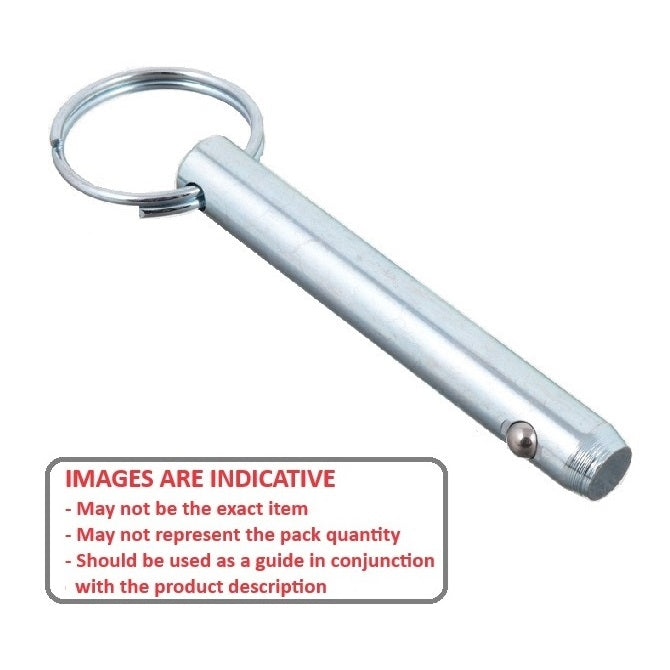

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$4.23 AUD
$4.23 AUD
Each
Qty: 19 available now
Order 50 or more for $3.81 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Dec 22, 2025

Couldn't load pickup availability

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Keyring Style - Single Ball - Steel

Product Details:

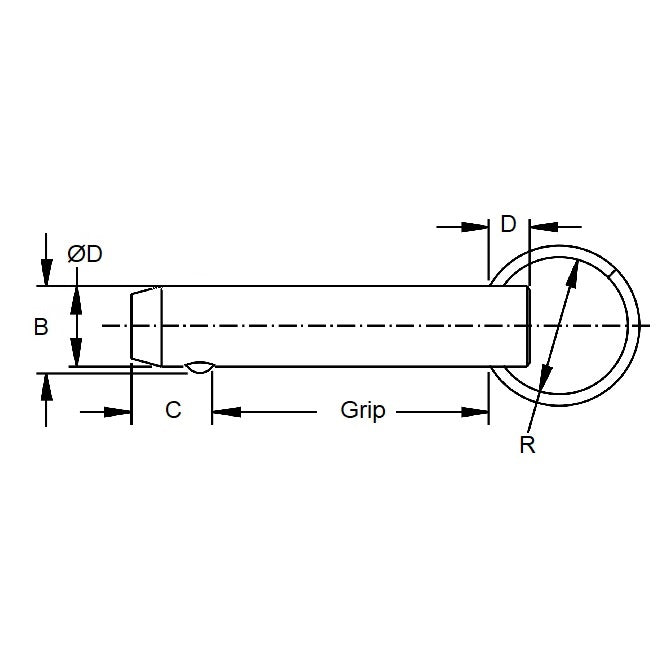

Nominal Diameter: 6.35mm
  • Grip Length (B): 33.02mm
  • Pin Material Grade: Carbon Steel
  • Locking Ball to End (C): 7.93mm
  • Open Ball Distance (B): 7.26mm
  • Ring Diameter (R ): 25.40mm
  • Depth of Ring in Pin (D): 5.59mm
  • Detent Style: 1 Ball Plain Pin No Shoulder

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98320A133, FPC4-13R, FPC413R, DTP02501200, DTP-0250-1200, ALTPART, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
