External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22

WRE-0050-LS-S1 (5 Pcs)

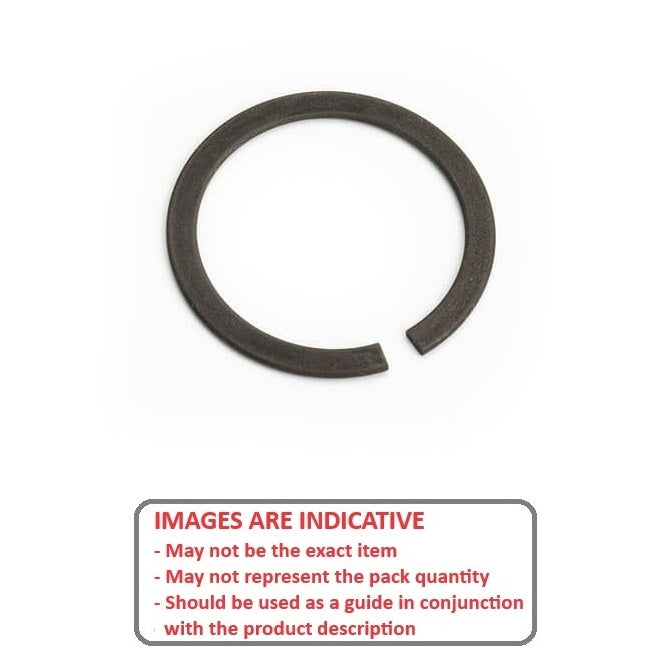

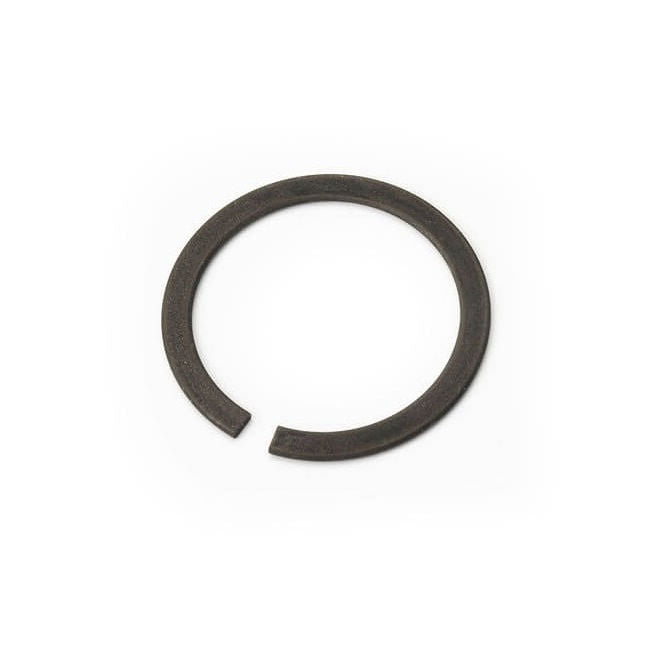

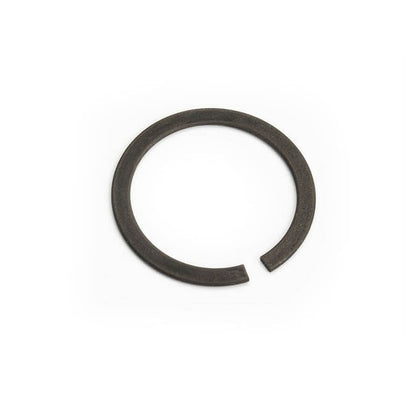

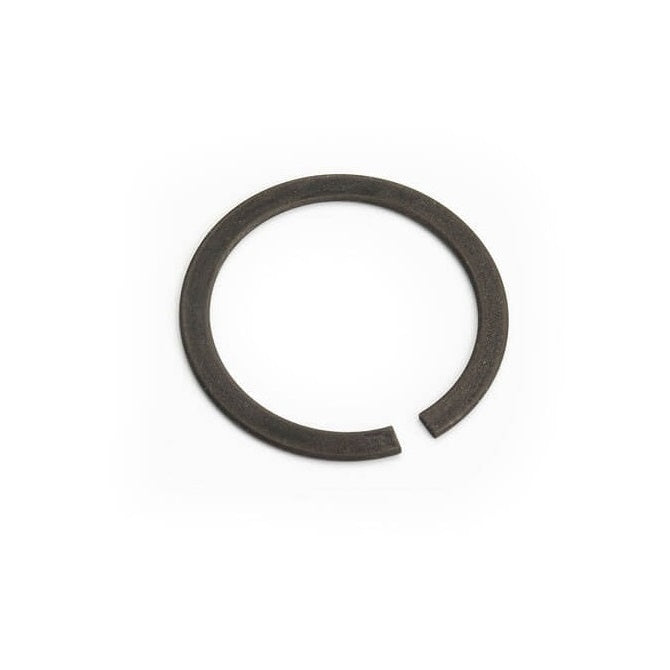

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

Myonic

Additional resources:
Snap Rings and Spiral Rings PDF
Price:
$7.50 AUD
$7.50 AUD
per 5
Qty: 115 available now (575 pcs)
Order 50 or more (250 pcs) for $6.75 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 17, 2025

Pickup available at Shop Location

Usually ready in 4 hours

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Stainless Steel

Product Details:

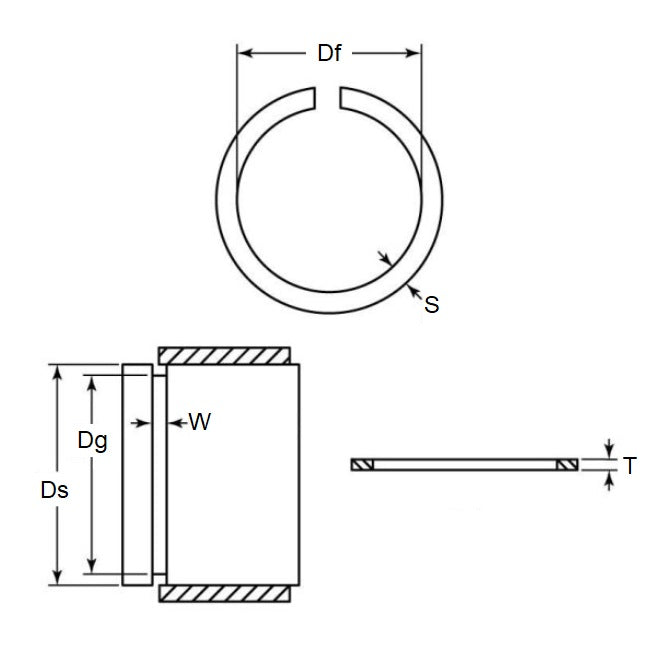

Shaft or Bearing OD (d1): 5.00mm
Stainless Steel 301 S11/S22
  • Clip Thickness (T): 0.40mm
    +/- 0.02
  • Groove Dia. (Dg): 4.60mm
    + 0 / - 0.05
  • Approx. Loose Circlip ID (A): 4.50mm
  • Radial Wall (S) min/max: 0.70mm
    + 0 / - 0.10
  • Groove Width (W): 0.44mm
  • Approx. Loose Clip OD: 5.9
  • Section Profile: Rectangular with Square Edge

Brand: Myonic
Country of Origin: DE

Alternative Parts Include: WRE0050SQS1, WSR05, WSR5

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
