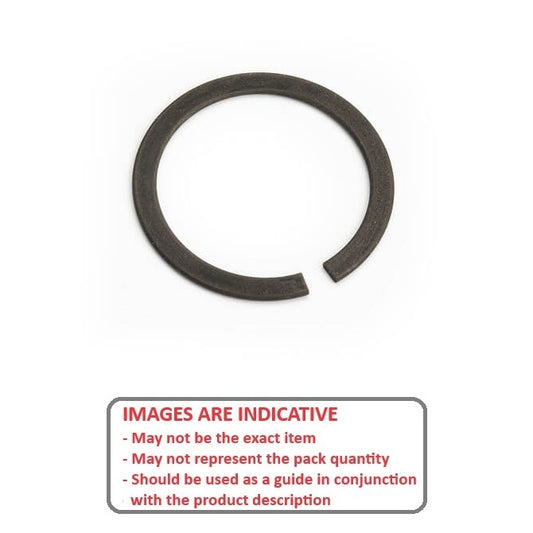

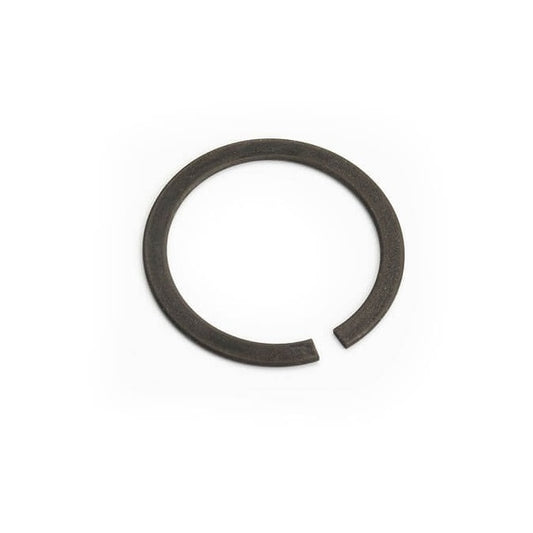

Retaining Rings - External - Snap Rings - Stainless Steel

1 Item Available
  • Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
  • 301 S11/S22 Stainless Steel.
  • Used on the outside diameter of a bearing, shaft or similar equipment
Small Parts & Bearings

Additional resources:
Snap Rings and Spiral Rings PDF

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - External - Snap Rings - Stainless Steel.
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) min/max Groove Width (W) Indicative
Shaft or Bearing OD (d1)
5.00
mm

(0.197 in.)
Clip Thickness (T)
0.40
mm
+/- 0.02
(0.016 in.)
Groove Dia. (Dg)
4.60
mm
+ 0 / - 0.05
(0.181 in.)
Approx. Loose Circlip ID (A)
4.50
mm
Radial Wall (S) min/max
0.70
mm
+ 0 / - 0.10
Groove Width (W)
0.44
mm
External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22
Material: Stainless Steel 301 S11/S22    Approx. Loose Clip OD: 5.9    Section Profile: Rectangular with Square Edge
Part Number: WRE-0050-LS-S1 (5 Pcs) External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22
115 units (575 pcs) Available Now | Further orders can be expected around Sat, Aug 16, 2025
$7.23 AUD
$7.23 AUD
Per 5
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft or Bearing OD (d1)
5.00
mm

(0.197 in.)
Clip Thickness (T)
0.40
mm
+/- 0.02
(0.016 in.)
Groove Dia. (Dg)
4.60
mm
+ 0 / - 0.05
(0.181 in.)
Approx. Loose Circlip ID (A)
4.50
mm
External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22
Material: Stainless Steel 301 S11/S22    Radial Wall (S) min/max: 0.70 mm + 0 / - 0.10    Groove Width (W): 0.44 mm    Approx. Loose Clip OD: 5.9    Section Profile: Rectangular with Square Edge
Part Number: WRE-0050-LS-S1 (5 Pcs) External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22
115 units (575 pcs) Available Now | Further orders can be expected around Sat, Aug 16, 2025
$7.23 AUD
$7.23 AUD
Per 5
View the product page first if you are unsure.
