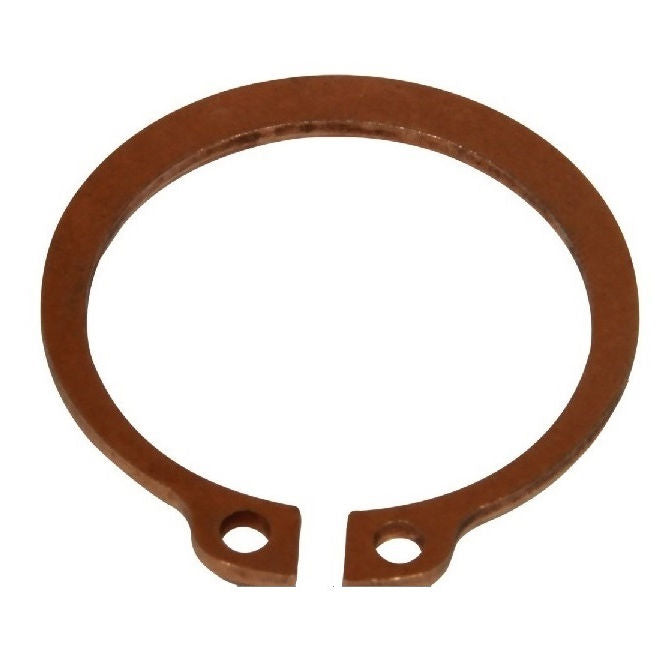

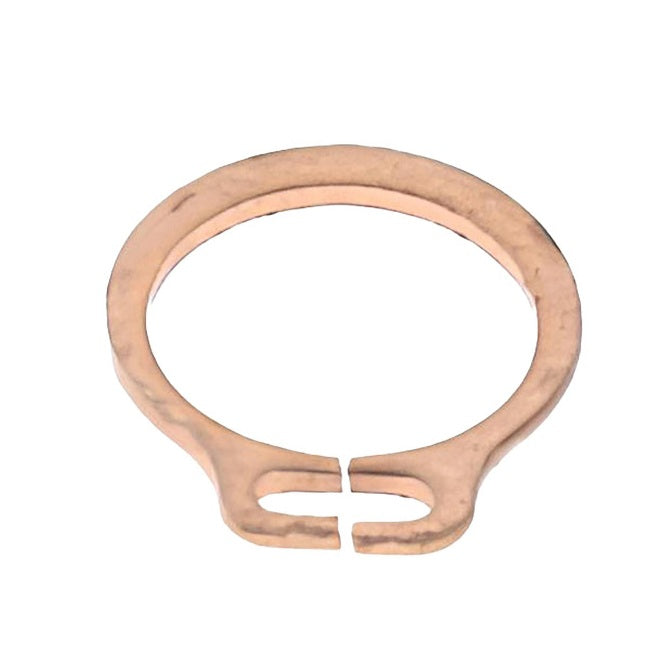

External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Beryllium Copper Circlip

Name: 1065467 | CCE-00478-B (Pack of 50) --- External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Beryllium Copper Circlip
Rating: 5.0 (1 reviews)

CCE-00478-B (Pack of 50)

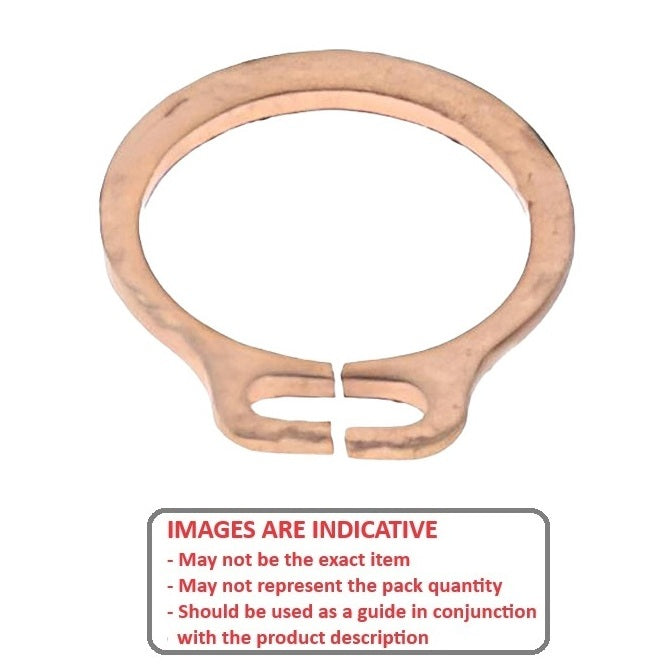

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$33.32 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 50 (2500 pcs)
for $29.99 AUD per 50 pack

Product Details

Additional stock available from USA subject to Prior Sale = 12995

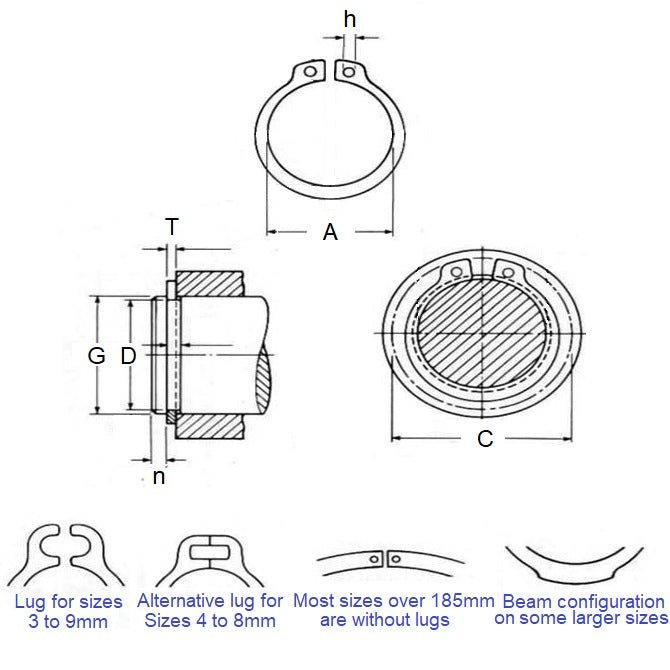

Shaft Diameter (Ds): 4.78mm
_{(4.78mm is 0.188 in.)}

Beryllium Copper

Shaft Diameter (Ds): 4.78mm
_{(4.78mm is 0.188 in.)}
Clip Thickness (T): 0.38mm
_{+/- 0.051}
_{(0.38mm is 0.015 in.)}
Groove Dia. (Dg): 4.45mm
_{+/- 0.038}
_{(4.45mm is 0.175 in.)}
Approx. Loose Circlip ID (A): 4.27mm
Groove Width (W): 0.46mm
Clearance on Shaft (C1): 7.62mm
Clearance in Groove (C1): 7.26mm
Min. Lug Diameter (h): 0.58mm
Min. Extension (n): 0.56
Standard: MIL-16624

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Seeger® A3-16X.015IN
Small Parts RE-3
Huyett® SH-018-BC
NoCor® SH-018-BC
A316X015IN
SH018BC
RE3
N14000018
N1400-0018
N14000018BC
N1400-0018BC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE00478B, CCE00478
