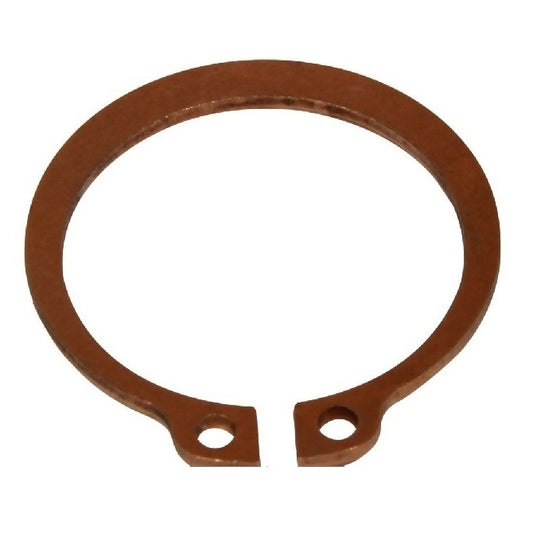

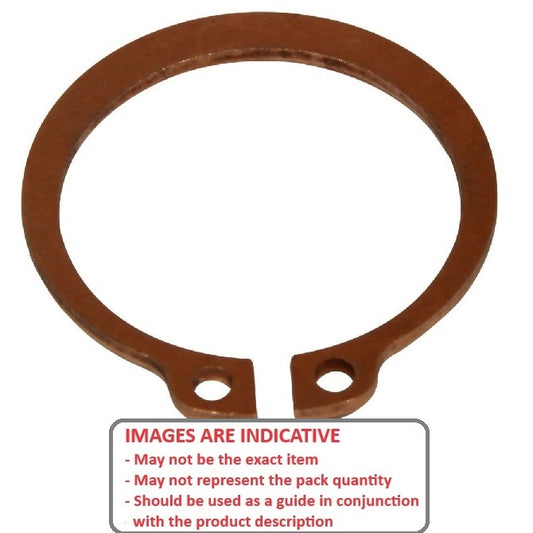

Retaining Rings - External - Circlips - Standard - Beryllium Copper

7 Products in this selection
  • Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).
Small Parts & Bearings

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - External - Circlips - Standard - Beryllium Copper.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) min/max Groove Width (W) Indicative
Shaft Diameter (Ds)
3.18
mm

(0.125 in.)
Clip Thickness (T)
0.25
mm
+/- 0.038
(0.01 in.)
Groove Dia. (Dg)
2.97
mm
+/- 0.025
(0.117 in.)
Approx. Loose Circlip ID (A)
2.84
mm
Groove Width (W)
0.30
mm
External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper
Material: Beryllium Copper    Clearance on Shaft (C1): 5.59 mm    Clearance in Groove (C1): 5.44 mm    Min. Lug Diameter (h): 0.61 mm    Min. Extension (n): 0.36    Standard: MIL-16624
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper
12 units (240 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$9.68 AUD
$9.68 AUD
Per 20
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
3.18
mm

(0.125 in.)
Clip Thickness (T)
0.25
mm
+/- 0.038
(0.01 in.)
Groove Dia. (Dg)
2.97
mm
+/- 0.025
(0.117 in.)
Approx. Loose Circlip ID (A)
2.84
mm
External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper
Material: Beryllium Copper    Groove Width (W): 0.30 mm    Clearance on Shaft (C1): 5.59 mm    Clearance in Groove (C1): 5.44 mm    Min. Lug Diameter (h): 0.61 mm    Min. Extension (n): 0.36    Standard: MIL-16624
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper
12 units (240 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$9.68 AUD
$9.68 AUD
Per 20
View the product page first if you are unsure.
Shaft Diameter (Ds)
3.97
mm

(0.156 in.)
Clip Thickness (T)
0.30
mm
+/- 0.038
(0.012 in.)
Groove Dia. (Dg)
3.71
mm
+/- 0.025
(0.146 in.)
Approx. Loose Circlip ID (A)
3.60
mm
Groove Width (W)
0.30
mm
External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper
Material: Beryllium Copper    Standard: MIL-16624
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper
81 units (810 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$6.32 AUD
$6.32 AUD
Per 10
Shaft Diameter (Ds)
3.97
mm

(0.156 in.)
Clip Thickness (T)
0.30
mm
+/- 0.038
(0.012 in.)
Groove Dia. (Dg)
3.71
mm
+/- 0.025
(0.146 in.)
Approx. Loose Circlip ID (A)
3.60
mm
External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper
Material: Beryllium Copper    Groove Width (W): 0.30 mm    Standard: MIL-16624
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper
81 units (810 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$6.32 AUD
$6.32 AUD
Per 10
View the product page first if you are unsure.
Shaft Diameter (Ds)
4.78
mm

(0.188 in.)
Clip Thickness (T)
0.38
mm
+/- 0.038
(0.015 in.)
Groove Dia. (Dg)
4.45
mm
+/- 0.051
(0.175 in.)
Approx. Loose Circlip ID (A)
4.27
mm
Groove Width (W)
0.46
mm
External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper
Material: Beryllium Copper    Clearance on Shaft (C1): 7.62 mm    Clearance in Groove (C1): 7.26 mm    Min. Lug Diameter (h): 0.58 mm    Min. Extension (n): 0.56    Standard: MIL-16624
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper
20 units (400 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$12.59 AUD
$12.59 AUD
Per 20
Shaft Diameter (Ds)
4.78
mm

(0.188 in.)
Clip Thickness (T)
0.38
mm
+/- 0.038
(0.015 in.)
Groove Dia. (Dg)
4.45
mm
+/- 0.051
(0.175 in.)
Approx. Loose Circlip ID (A)
4.27
mm
External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper
Material: Beryllium Copper    Groove Width (W): 0.46 mm    Clearance on Shaft (C1): 7.62 mm    Clearance in Groove (C1): 7.26 mm    Min. Lug Diameter (h): 0.58 mm    Min. Extension (n): 0.56    Standard: MIL-16624
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper
20 units (400 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$12.59 AUD
$12.59 AUD
Per 20
View the product page first if you are unsure.
Shaft Diameter (Ds)
5.01
mm

(0.197 in.)
Clip Thickness (T)
0.38
mm
+/- 0.038
(0.015 in.)
Groove Dia. (Dg)
4.78
mm
+/- 0.051
(0.188 in.)
Approx. Loose Circlip ID (A)
4.60
mm
Groove Width (W)
0.46
mm
External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper
Material: Beryllium Copper    Standard: MIL-16624
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 21, 2025
$1.59 AUD
$3.54 AUD $1.59 AUD
Per 5
Shaft Diameter (Ds)
5.01
mm

(0.197 in.)
Clip Thickness (T)
0.38
mm
+/- 0.038
(0.015 in.)
Groove Dia. (Dg)
4.78
mm
+/- 0.051
(0.188 in.)
Approx. Loose Circlip ID (A)
4.60
mm
External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper
Material: Beryllium Copper    Groove Width (W): 0.46 mm    Standard: MIL-16624
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 21, 2025
$1.59 AUD
$3.54 AUD $1.59 AUD
Per 5
View the product page first if you are unsure.
Shaft Diameter (Ds)
7.94
mm

(0.313 in.)
Clip Thickness (T)
0.64
mm
+/- 0.051
(0.025 in.)
Groove Dia. (Dg)
7.37
mm
+/- 0.051
(0.29 in.)
Approx. Loose Circlip ID (A)
7.14
mm
Groove Width (W)
0.74
mm
External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper
Material: Beryllium Copper    Clearance on Shaft (C1): 13.72 mm    Clearance in Groove (C1): 13.21 mm    Min. Extension (n): 0.91    Standard: MIL-16624
Part Number: CCE-00794-B External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper
100 Available Now | Further orders can be expected around Thu, Aug 14, 2025
$3.23 AUD
$3.23 AUD
Each
Shaft Diameter (Ds)
7.94
mm

(0.313 in.)
Clip Thickness (T)
0.64
mm
+/- 0.051
(0.025 in.)
Groove Dia. (Dg)
7.37
mm
+/- 0.051
(0.29 in.)
Approx. Loose Circlip ID (A)
7.14
mm
External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper
Material: Beryllium Copper    Groove Width (W): 0.74 mm    Clearance on Shaft (C1): 13.72 mm    Clearance in Groove (C1): 13.21 mm    Min. Extension (n): 0.91    Standard: MIL-16624
Part Number: CCE-00794-B External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper
100 Available Now | Further orders can be expected around Thu, Aug 14, 2025
$3.23 AUD
$3.23 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (Ds)
15.88
mm

(0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.076
(0.035 in.)
Groove Dia. (Dg)
14.94
mm
+/- 0.051
(0.588 in.)
Approx. Loose Circlip ID (A)
14.70
mm
Radial Wall (S) min/max
B (Square Ends)
mm
Groove Width (W)
1.00
mm
External Retaining Rings - 15.88x0.89x14.94 mm - Beryllium Copper
Material: Beryllium Copper    Standard: MIL-16624
Part Number: CCE-01588-B External Retaining Rings - 15.88x0.89x14.94 mm - Beryllium Copper
33 Available Now | Further orders can be expected around Sat, Sep 20, 2025
$4.32 AUD
$4.32 AUD
Each
Shaft Diameter (Ds)
15.88
mm

(0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.076
(0.035 in.)
Groove Dia. (Dg)
14.94
mm
+/- 0.051
(0.588 in.)
Approx. Loose Circlip ID (A)
14.70
mm
External Retaining Rings - 15.88x0.89x14.94 mm - Beryllium Copper
Material: Beryllium Copper    Radial Wall (S) min/max: B (Square Ends) mm    Groove Width (W): 1.00 mm    Standard: MIL-16624
Part Number: CCE-01588-B External Retaining Rings - 15.88x0.89x14.94 mm - Beryllium Copper
33 Available Now | Further orders can be expected around Sat, Sep 20, 2025
$4.32 AUD
$4.32 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (Ds)
25.40
mm

(1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(0.042 in.)
Groove Dia. (Dg)
23.88
mm
+/- 0.051
(0.94 in.)
Approx. Loose Circlip ID (A)
23.50
mm
Radial Wall (S) min/max
B (Square Ends)
mm
Groove Width (W)
1.20
mm
External Retaining Rings - 25.4x1.07x23.88 mm - Beryllium Copper
Material: Beryllium Copper    Standard: MIL-16624
Part Number: CCE-02540-B External Retaining Rings - 25.4x1.07x23.88 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 21, 2025
$10.50 AUD
$22.36 AUD $10.50 AUD
Each
Shaft Diameter (Ds)
25.40
mm

(1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(0.042 in.)
Groove Dia. (Dg)
23.88
mm
+/- 0.051
(0.94 in.)
Approx. Loose Circlip ID (A)
23.50
mm
External Retaining Rings - 25.4x1.07x23.88 mm - Beryllium Copper
Material: Beryllium Copper    Radial Wall (S) min/max: B (Square Ends) mm    Groove Width (W): 1.20 mm    Standard: MIL-16624
Part Number: CCE-02540-B External Retaining Rings - 25.4x1.07x23.88 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 21, 2025
$10.50 AUD
$22.36 AUD $10.50 AUD
Each
View the product page first if you are unsure.
