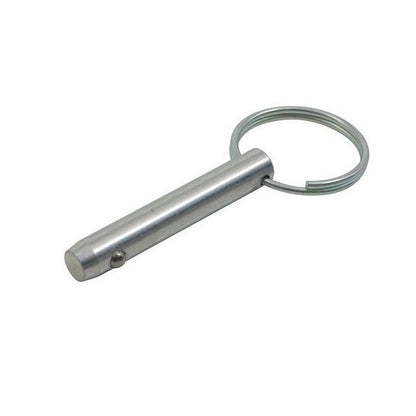

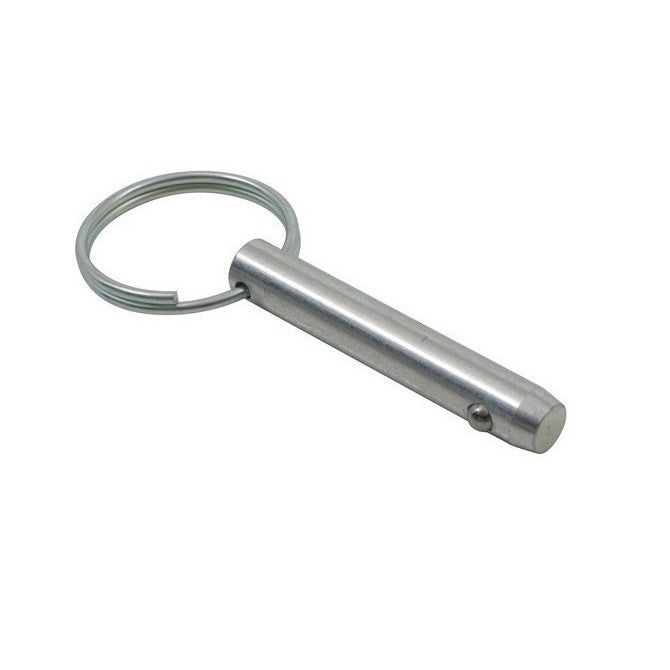

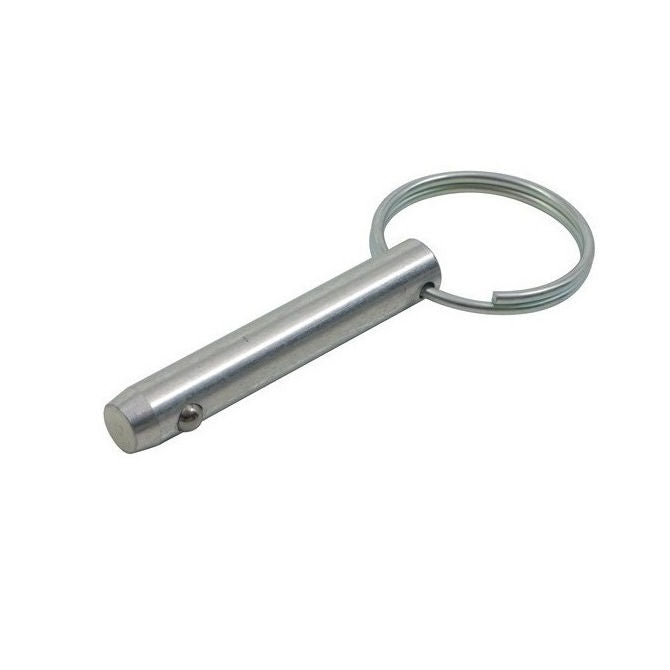

Ball Lock Pins - 4.76x25.4 mm - 316 Stainless Steel Keyring Style

BLP-048-0254-K1-S6

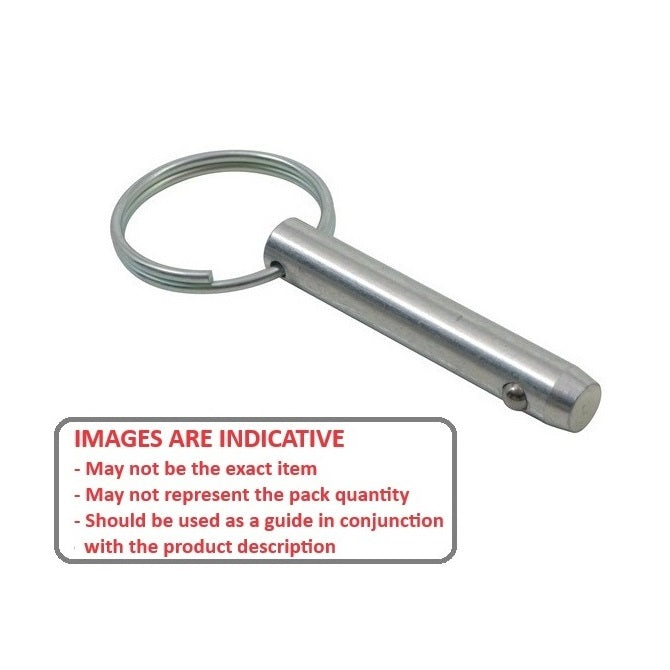

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Ball Lock Pins - 4.76x25.4 mm - 316 Stainless Steel
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$5.14 AUD
$5.14 AUD
Each
Qty: 484 available now
Order 50 or more for $4.63 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 12, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Keyring Style - Single Ball - 316 Stainless Steel

Product Details:


Additional stock available from USA subject to Prior Sale = 419

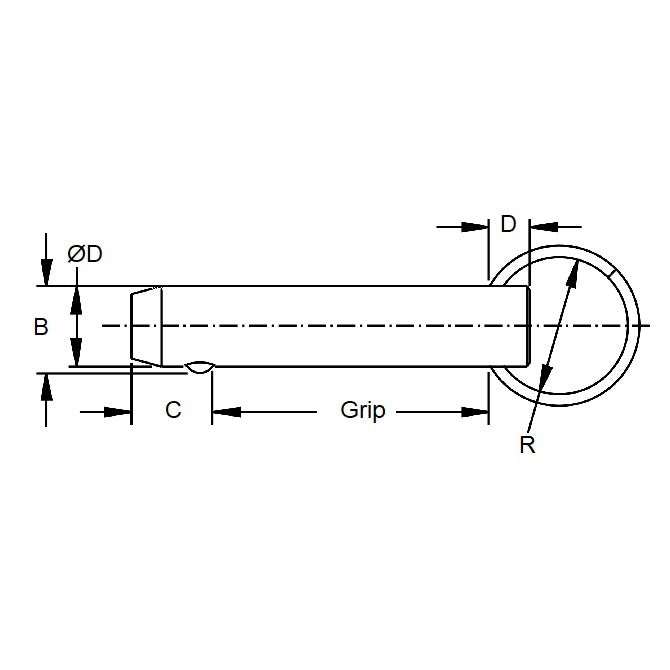

Nominal Diameter: 4.76mm
(4.76mm is 0.187 in.)

Stainless Steel 316 (Similar to A4, 18-10)
  • Grip Length (B): 25.40mm
    (25.40mm is 1 in.)
  • Pin Material Grade: 316 Stainless Steel
  • Locking Ball to End (C ): 5.08mm
  • Open Ball Distance (B): 5.18mm
  • Ring Diameter (R ): 25.40mm
  • Depth of Ring in Pin (D): 4.75mm
  • Detent Style: 1 Ball Plain Pin No Shoulder

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

  • ALTPART 95255A219
  • NoCor DTPS6-0187-1000
  • DTPS601871000

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
