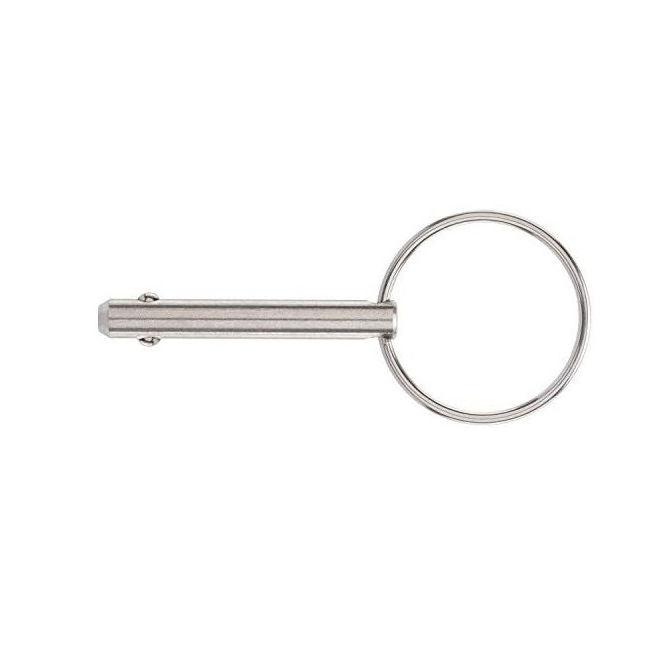

BLP-048-0254-K2-S4
Pins - 4.76 mm x 25.4 mm 304 Stainless Steel
MBA
Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Qty: 1 available now
Couldn't load pickup availability
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - Keyring Style - 300 Grade Stainless Steel - Dual Ball
Product Details:Nominal Diameter: 4.76mm
Stainless 304 Grade
- Grip Length: 25.40mm
- Pin Material Grade: 304 Stainless Steel

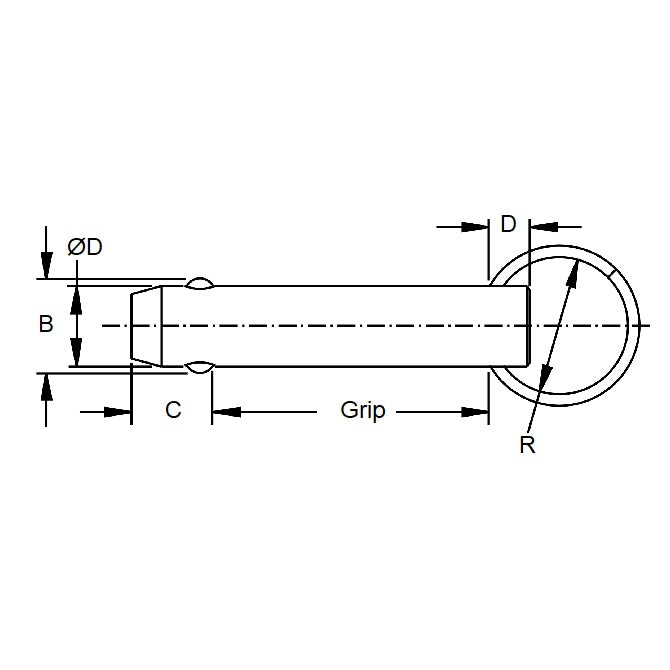

- Locking Ball to End (C ): 5.08mm
- Open Ball Distance (B): 5.18mm
- Detent Style: 2 Ball with Shoulder
- Ring Diameter (R ): 25.40mm
- Depth of Ring in Pin (D): 4.75mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: SMP-803A
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
