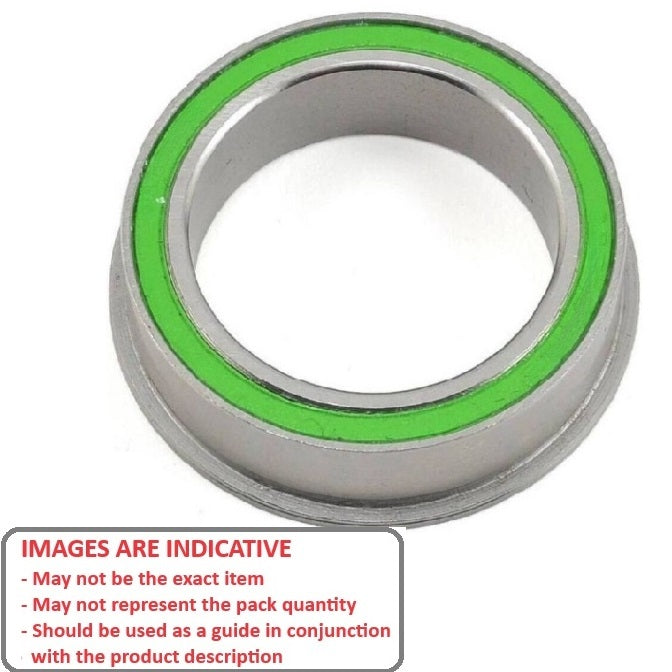

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

FMR63A-2RG-ECO (10 Pcs)

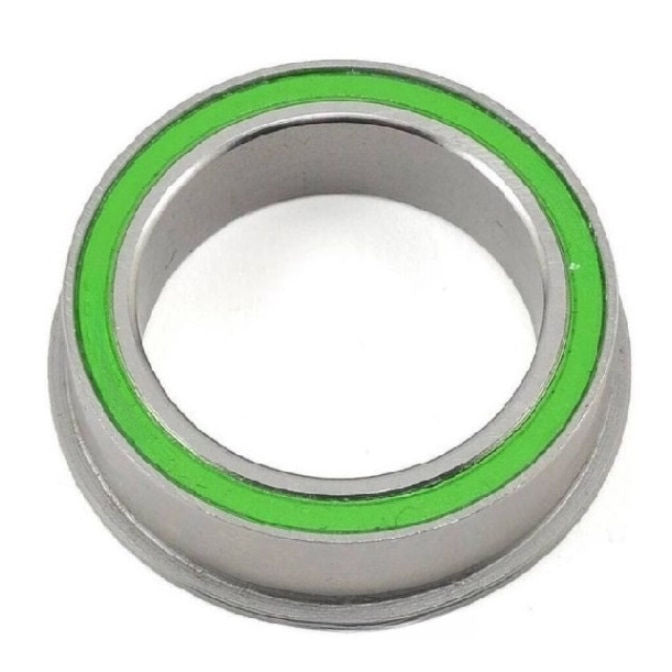

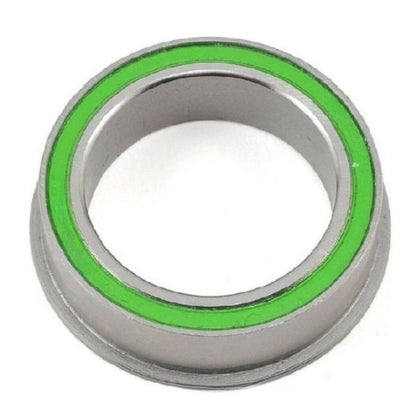

Bearings - 3 mm x 6 mm x 2.5 mm

MBA

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$8.00 AUD
$0.00 AUD $8.00 AUD
per 10
Qty: 183 available now (1830 pcs)
Order 50 or more (500 pcs) for $7.20 AUD per 10
Only 183 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

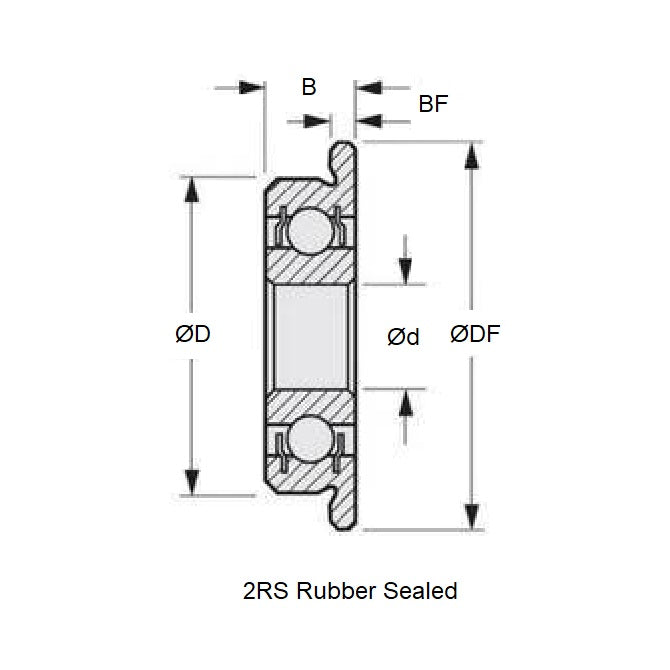

Product Details:

ID (d): 3.000mm
SAE52100 Chrome Steel
  • OD (D): 6.000mm
  • Width (B): 2.500mm
  • Flange Diameter (DF): 7.200mm
  • Flange Width (BF): 0.600mm
  • Precision Grade: Economy
  • Closure Type: 2RG
  • Bearing Type: Radial Flanged

Brand: ECO
Country of Origin: TW

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for RC Car Parts. Brands: Academy and MRC, Cox, HPI, Kyosho, Royal, Tamiya, Yokomo. Models: Dodge Ram, Laser ZX, Laser ZX Upgrade, Laser ZX5 Complete, MR-4TC BD, RS4 Pro 4, Scorpion, SP-3 Extreme 1/2 Scale EP, SP-3 Matiz 1/12 Scale, Superbike Complete, Superbike Trans., TB Evolution IV 4Evo 4, TF-4 Spider Type R, TRF 415MS Complete, YR-4M.
