FMR63A-2RG-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

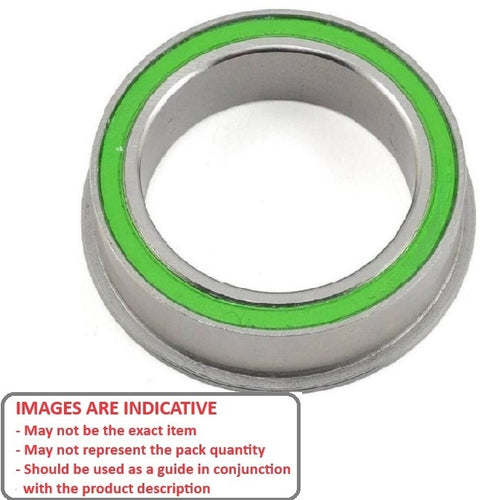

Deleted Item. Available while stocks last. Double green sealed flanged economy bearing
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

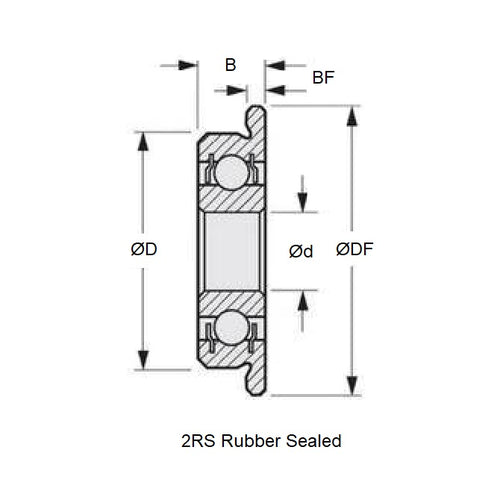

- ID (d) : 3.000 mm
- O.D. (D) 6.000 mm
- Width (B) 2.500 mm
- Flange Diameter (DF) 7.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Economy
- Closure Type 2RG
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR63A
- Limiting Speed 45866
- Cage Type Crown
- Static Load Rating KGf 7.1
- Dynamic Load Rating KGf 20
- Radii 0.10 mm
- Inner Shoulder (UI) 3.70mm
- Outer Shoulder (UO) 5.40 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RG
- Max Temperature 80 Deg. C
