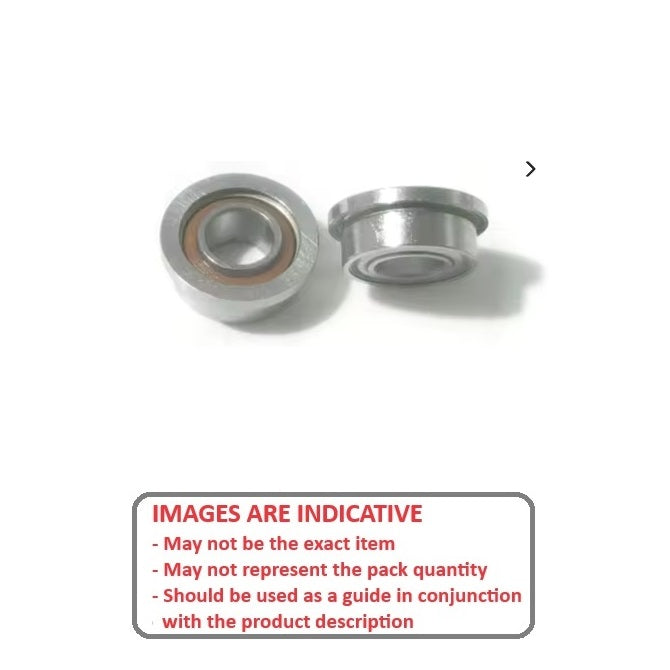

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

SFR144-D28-ZSO

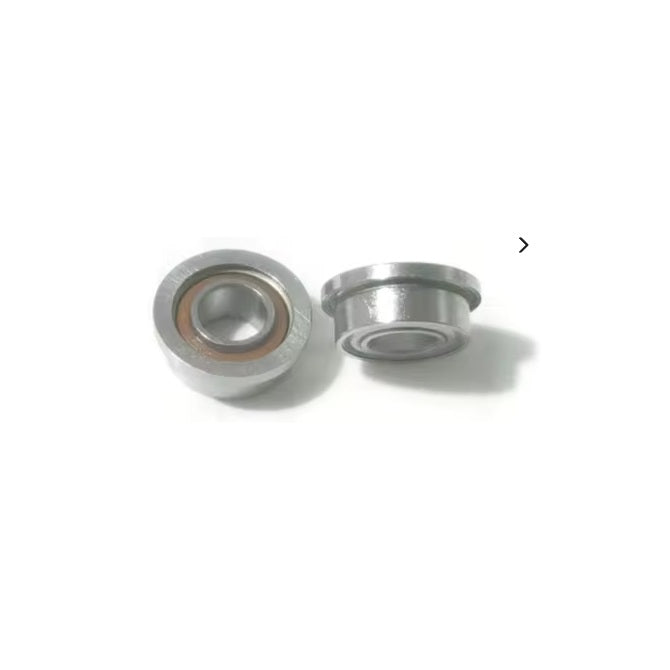

Bearings - 3.175 mm x 6.35 mm x 2.381 mm

MBA

Additional resources:
Aftermarket Dental Handpiece Parts
Dental replacement Parts
Price:
$55.00 AUD
$0.00 AUD $55.00 AUD
Each
Qty: 4 available now
Only 4 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Dental Applications

Top Level Category: Bearings - Dental Applications

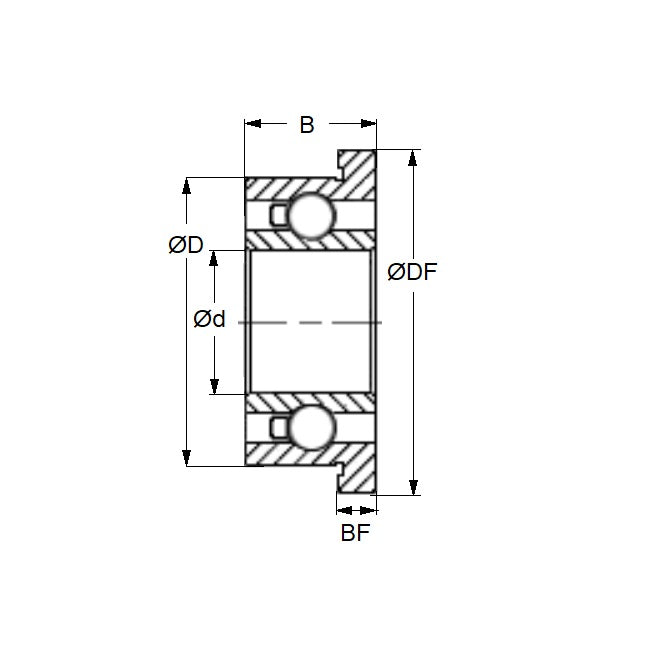

Product Details:

ID (d): 3.175mm
+0.000/-0.004

AIS I 440C Stainless Steel
  • OD (D): 6.350mm
    +0.000/-0.005
  • Width (B): 2.381mm
    +0.000/-0.040
  • Flange Diameter (DF): 7.518mm
  • Flange Width (BF): 0.584
  • Precision Grade: Abec 7
  • Closure Type: ZS
  • Bearing Type: Radial Flanged
  • Lubricant: Oil - Special

Brand: MBA
Country of Origin: DE

Alternatives: 9A0013, 9A0013-821B, 9A0013-831, SFR144RSTAY133K4CXOG-28, SSF3175A-002Z-A7-K25GPRXBTHBL020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for Dental Handpiece Parts. Brands: NSK. Models: CHQD, Pana Air SU03 - TU03 Green-Black.
