Dental Applications Bearings - 3.175 6.350 / 5.979 - 3.200 / 4.200 - Stainless Steel AISI 440C - Dental Special Bearing

SR144A-D650-ZS (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dental Applications Bearings - 3.175 6.350 / 5.979 - 3.200 / 4.200 - Stainless Steel AISI 440C - Dental Special Bearing
1 2

MBA

Store Name: Small Parts & Bearings

Additional resources:
Aftermarket Dental Handpiece Parts
Dental replacement Parts
Price:
$44.51 AUD
$137.07 AUD $44.51 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Dental Applications

Top Level Category: Bearings - Dental Applications

Product Details


Deleted Item. Available while stocks last.

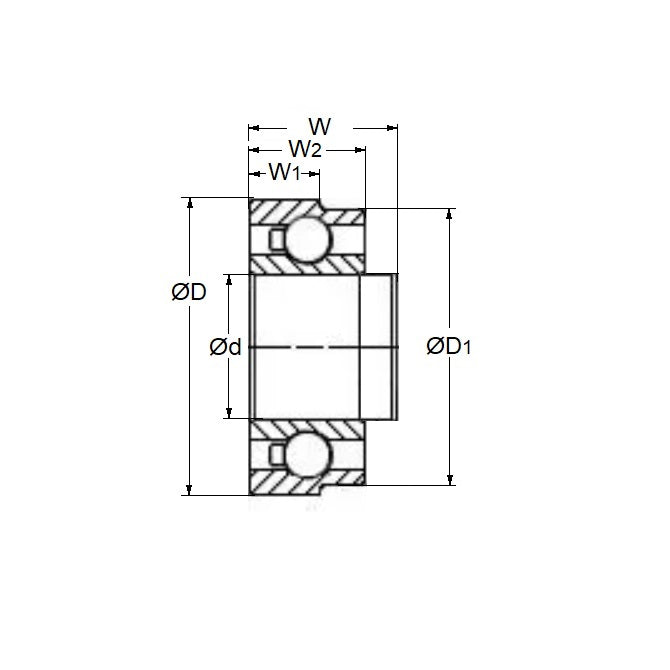

ID (d): 3.175mm
+ 0.000 / - 0.004
(3.175mm is 0.125 in.)

Stainless Steel AISI 440C - Dental Special
  • ID (d): 3.175mm
    + 0.000 / - 0.004
    (3.175mm is 0.125 in.)
  • OD (D): 6.350 / 5.979mm
    + 0.000 / - 0.005
    (6.350 / 5.979mm is 0.25 in.)
  • Width (B): 3.200 / 4.200mm
    + 0.000 / - 0.040
    (3.200 / 4.200mm is 0.126 in.)
  • Precision Grade: Abec 7
  • Closure Type: ZS
  • Bearing Type: D650 (Large Shroud)
  • Lubricant: Oil - Undisclosed
  • Additional Information: Outer ring is stepped from 6.35mm to 5.979mm. Inner ring is wider than outer ring.

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • KaVo 220-2009
  • KaVo 220NK2009
  • 2202009
  • R144STAY39K3C10

Used for

  • Dental Handpiece Parts
  • Kavo - 637B Mini Lux 3 BellaTorque - Top Bearing
  • Kavo - 650A FG - Chuck End Bearing
  • Kavo - 650B PB - 650C PB - Chuck End Bearing

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
