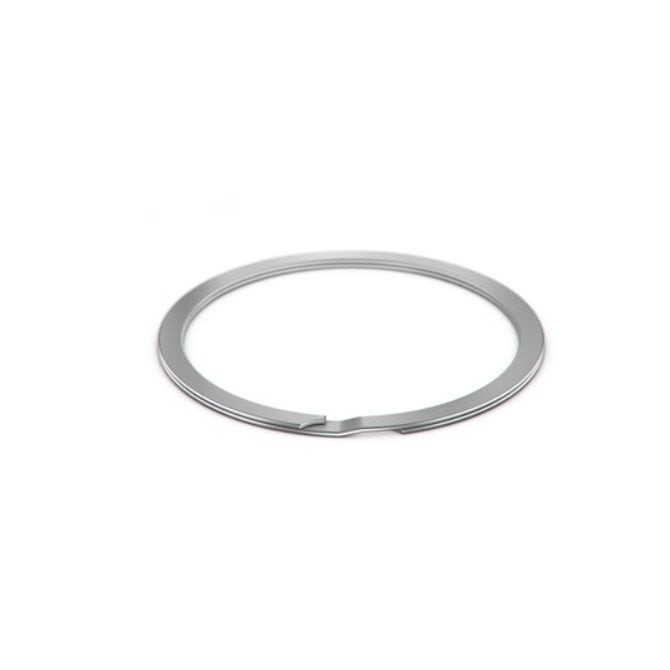

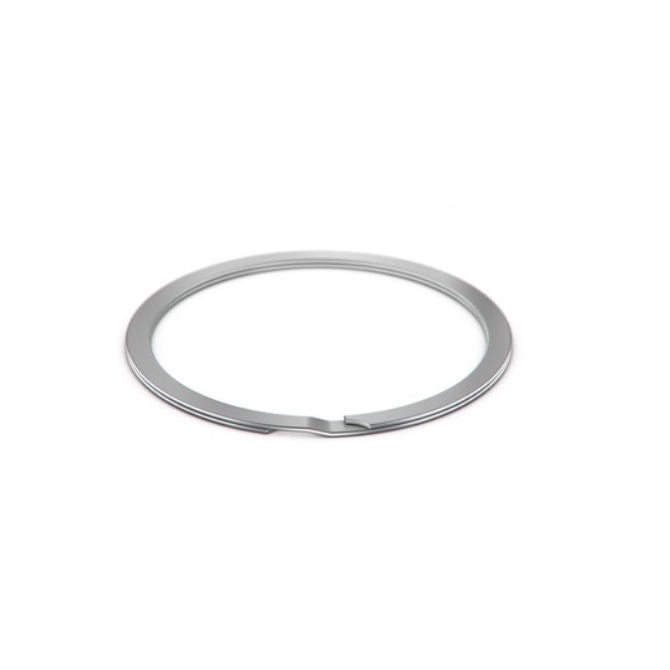

Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel

Name: 1138148 | RR-112 (2 Pcs) --- Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel
Brand: MBA
SKU: RR112
Price: 1.59 AUD
Availability: InStock

RR-112 (2 Pcs)

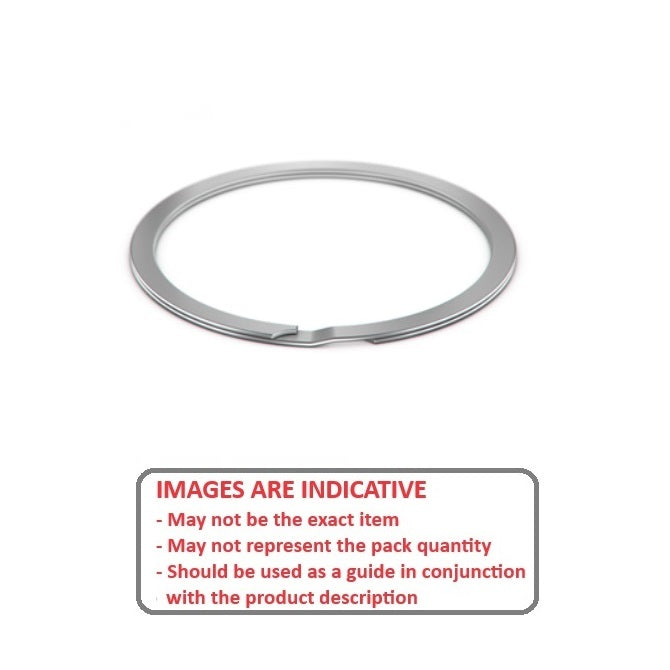

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$1.59 AUD

per 2
Qty: 54 available now (108 pcs)
Order 50 or more (100 pcs) for $1.43 AUD per 2

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 22, 2025

Quantity

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 8845

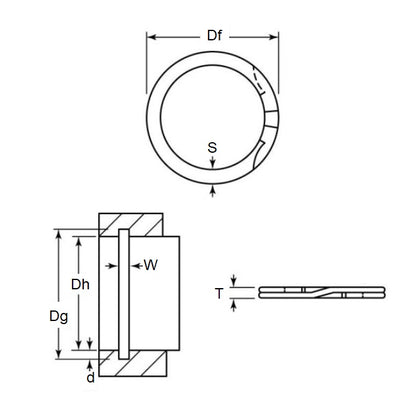

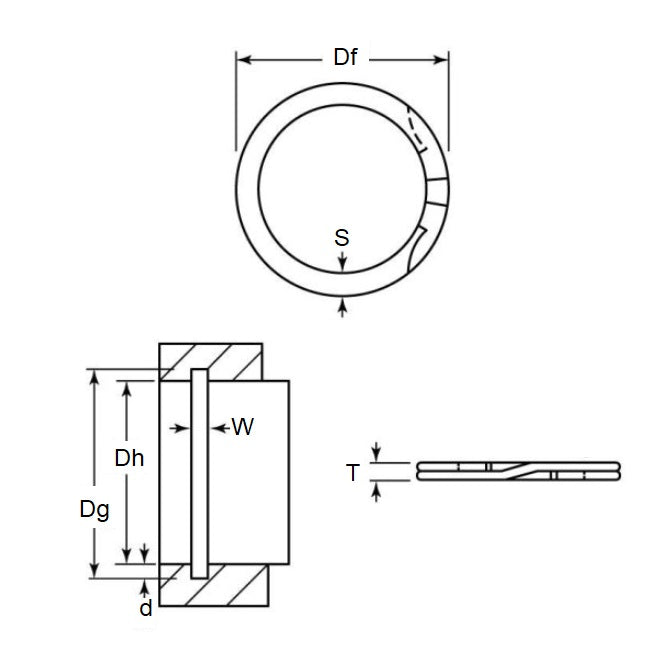

Housing Bore (B): 28.58mm
_{(28.58mm is 1.125 in.)}

Spring Steel

Clip Thickness (T): 0.94mm
_{+/- 0.05}
_{(0.94mm is 0.037 in.)}
Groove Dia. (Dg): 29.64mm
_{(29.64mm is 1.167 in.)}
Approx. Loose Circlip OD (Dr): 29.84mm
_{+ 0.38 / - 0.00}
Radial Wall (S): 1.91mm
_{+/- 0.11}
Groove Width (W): 1.11mm
_{+/- 0.10}
Approx. Loose Clip ID: 26.02
_{+/- 0.03}
Groove Depth (d): 0.53

Brand: MBA
Country of Origin: US

Alternative Parts Include: 92602A160, AI-112, AI112, WH-112, WH112, ALTPART, Associated Spring, Smalley, Spirolox

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
