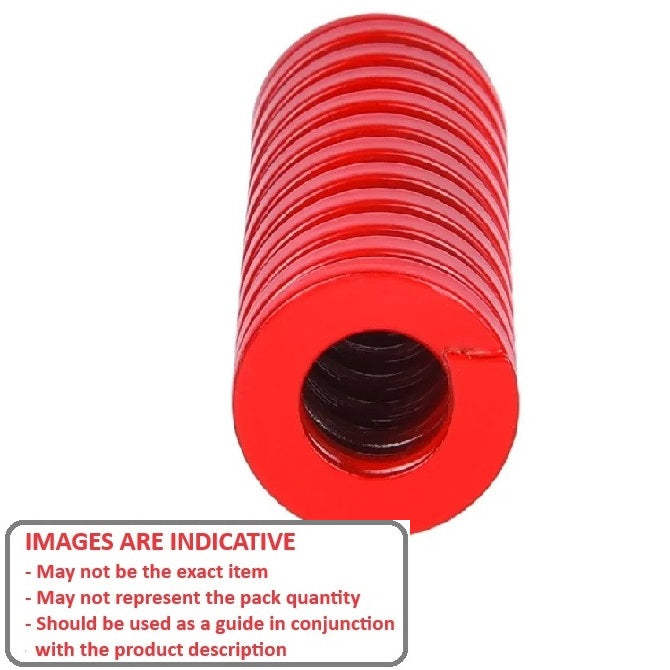

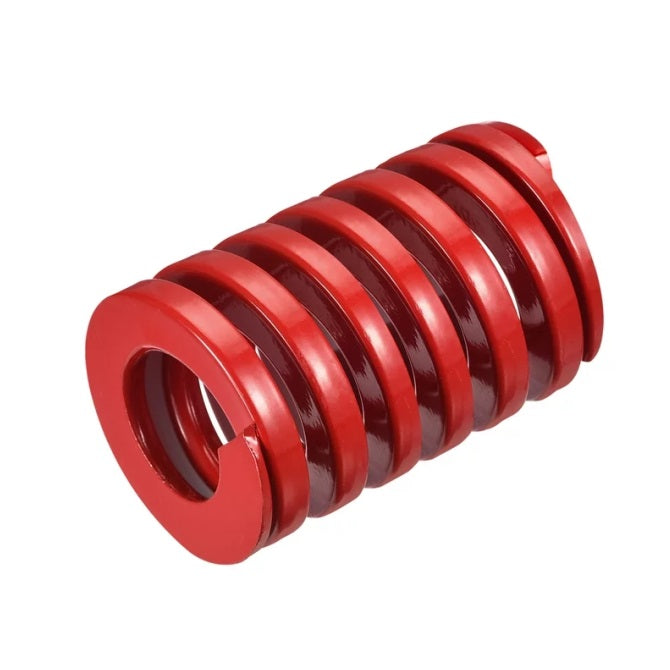

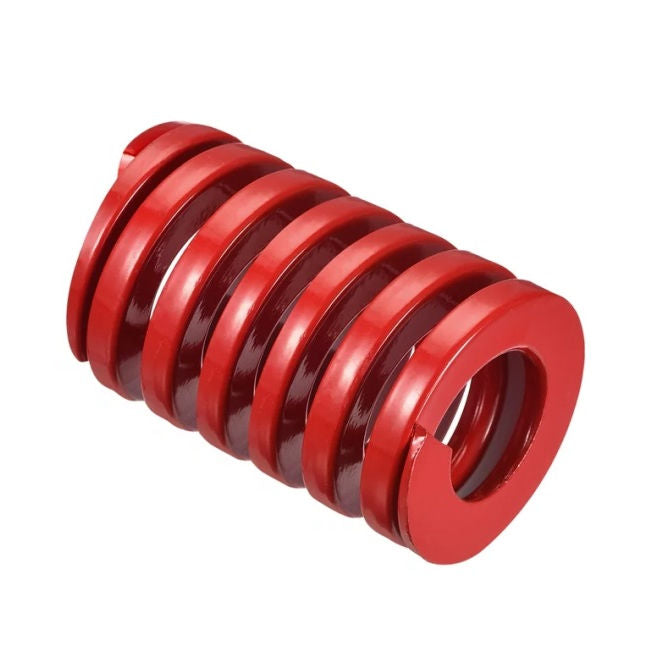

Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel

Name: 1139556 | DS-250-076-HD (Each) --- Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel
Rating: 5.0 (1 reviews)

DS-250-076-HD (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Springs - Die - Metric - Heavy Duty

Additional resources:
Spings Catalogue PDF

1 total reviews

Price:

$40.32 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more
for $36.29 AUD Each

Product Details

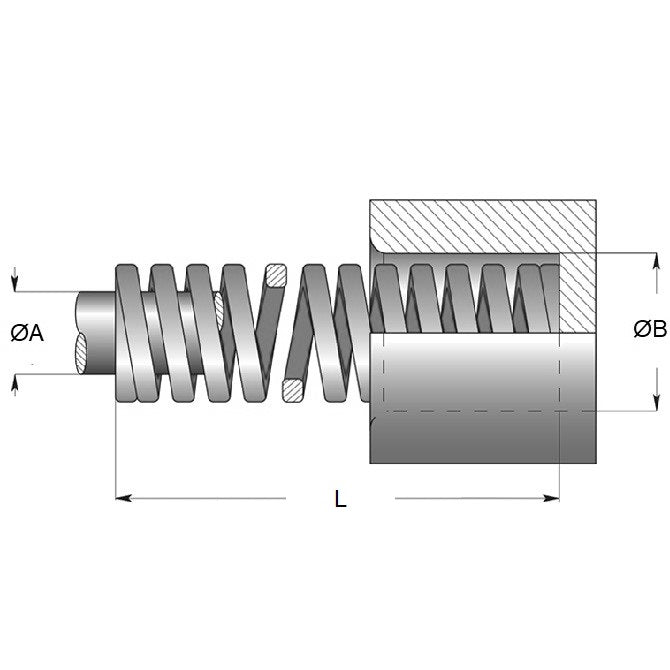

Hole Diameter (B): 25.00mm
_{(25.00mm is 0.984 in.)}

Carbon Spring Steel

Hole Diameter (B): 25.00mm
_{(25.00mm is 0.984 in.)}
Rod Diameter (A): 12.50mm
_{(12.50mm is 0.492 in.)}
Length (L): 76.00mm
_{(76.00mm is 2.992 in.)}
Optimum Deflection: 25Percent
Optimum Deflection: 19.0mm
Load at Optimal: 1881.0N
Maximum Deflection: 37Percent
Maximum Deflection: 28.1mm
Load at Maximum: 2781.9N
Spring Rate: 99.0N/mm
Colour Code: Red

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
1804N215
R205512

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DS250076HD, DS250

View full details
