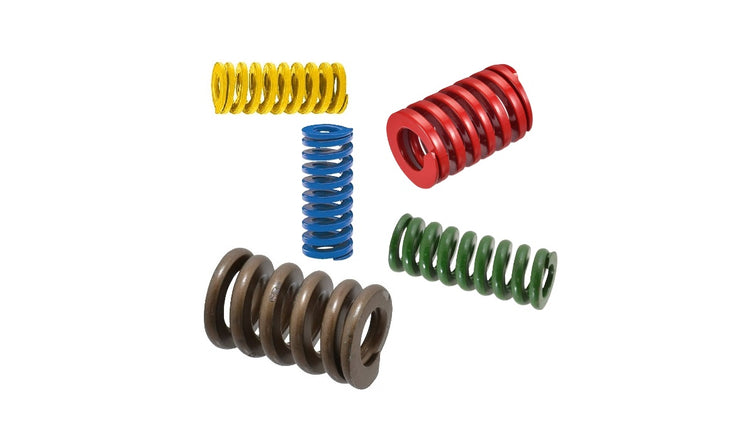

Collection: Springs - Die
Springs -> DieThere are 16 products in the sub-categories of Springs - Die. Browse the Springs - Die products table. To narrow down the selection, please choose a sub-category from the links below.
Springs - Die - Imperial
This category includes various types of die springs. Heavy duty, high-stress compression...
Springs - Die - Metric
This category includes various types of die springs. Heavy duty, high-stress compression...
Category Details
This category includes various types of die springs.
- Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
- Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
- Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Springs - Die category on the MBA Minibearings main store.
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection | Optimum Deflection | Load at Optimal |
Indicative Image |
|---|---|---|---|---|---|---|
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
139.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 20 Percent
Maximum Deflection: 5.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-025-EHD (Each)

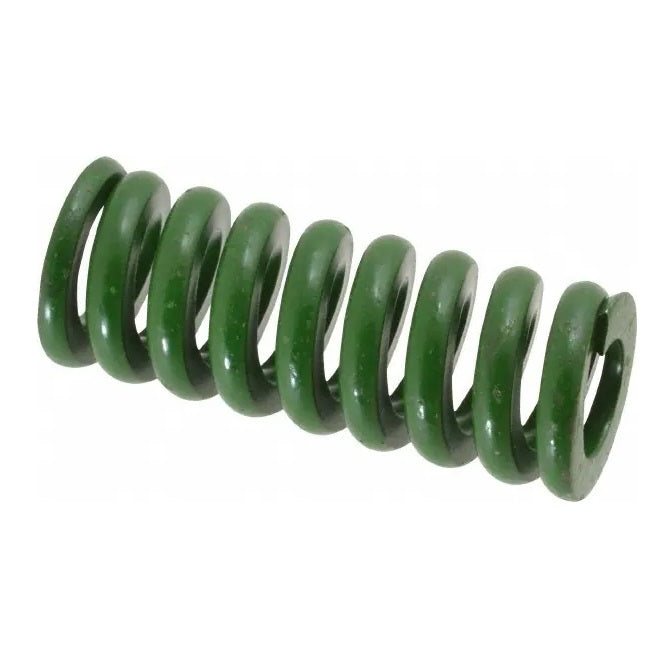

Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$7.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection |
Indicative Image |
||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 3.8 mm
Load at Optimal: 139.8 N
Maximum Deflection: 20 Percent
Maximum Deflection: 5.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-025-EHD (Each)
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$7.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
77.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-025-HD (Each)
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
25.400
mm (Equiv. 1 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 3.8 mm
Load at Optimal: 77.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-025-HD (Each)
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.7
mm |
Load at Optimal
68.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-051-MDS (Each)
Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 12.7 mm
Load at Optimal: 68.6 N
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-051-MDS (Each)
Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
15.9
mm |
Load at Optimal
73.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MD (Each)
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 15.9 mm
Load at Optimal: 73.1 N
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MD (Each)
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
113.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-MD (Each)
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 113.1 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-MD (Each)

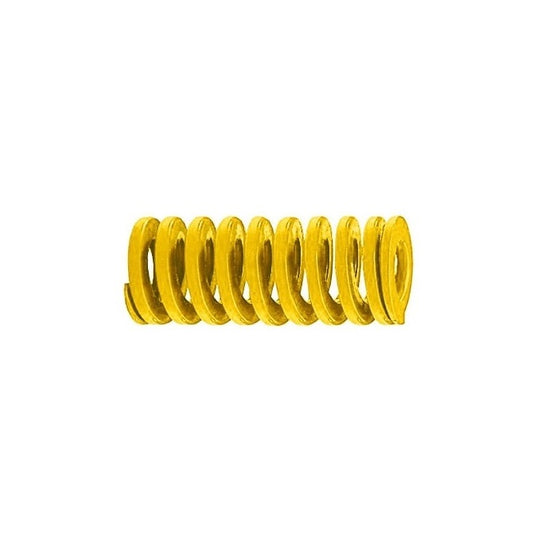

Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
162.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-HD (Each)

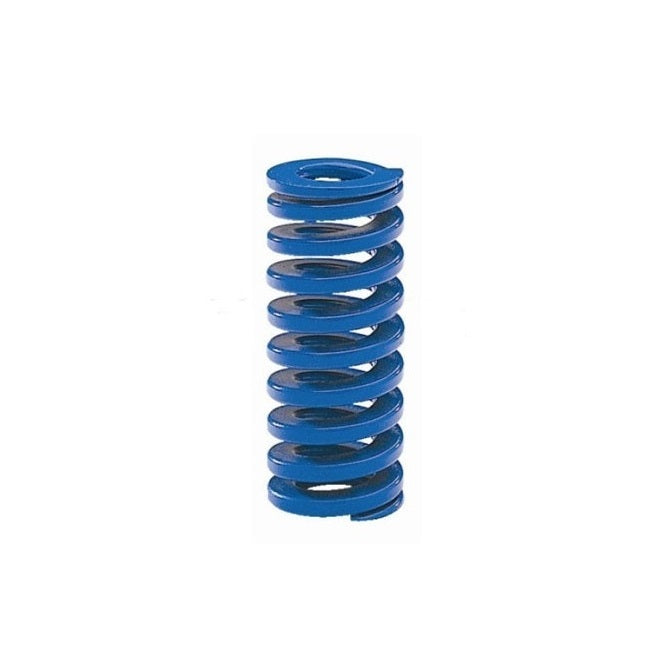

Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 162.5 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-HD (Each)
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
225.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-EHD (Each)
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$16.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 225.2 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-EHD (Each)
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$16.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
64.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-LD (Each)
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$18.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 64.6 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-LD (Each)
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$18.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
305.00
mm (Equiv. 12.008 in.) |
Optimum Deflection
1.1
Percent |
Load at Optimal
83.9
N |
|
|
|
Material: Carbon Spring Steel
Maximum Deflection: 100.7 Percent
Maximum Deflection: 17.4 mm
Category: Springs - Die - Metric Deleted Item. Available while stocks last. |
||||||
|
Part Number: DS-100-305-LD (Each)
Die Springs - 10x5x305 mm Metric - Carbon Spring Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
305.00
mm (Equiv. 12.008 in.) |
Optimum Deflection
1.1
Percent |
|
||
|
Material: Carbon Spring Steel
Load at Optimal: 83.9 N
Maximum Deflection: 100.7 Percent
Maximum Deflection: 17.4 mm
Category: Springs - Die - Metric Deleted Item. Available while stocks last. |
||||||
|
Part Number: DS-100-305-LD (Each)
Die Springs - 10x5x305 mm Metric - Carbon Spring Steel 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
147.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-127-038-HDS (Each)
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
12.70
mm (Equiv. 0.5 in.) |
Rod Diameter (A)
7.144
mm (Equiv. 0.281 in.) |
Length (L)
38.100
mm (Equiv. 1.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 5.7 mm
Load at Optimal: 147.6 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-127-038-HDS (Each)
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
25.00
mm (Equiv. 0.984 in.) |
Rod Diameter (A)
12.50
mm (Equiv. 0.492 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.0
mm |
Load at Optimal
1881.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-250-076-HD (Each)
Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel 2 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$50.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
25.00
mm (Equiv. 0.984 in.) |
Rod Diameter (A)
12.50
mm (Equiv. 0.492 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 19.0 mm
Load at Optimal: 1881.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-250-076-HD (Each)
Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel 2 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$50.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
7.6
mm |
Load at Optimal
1160.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial |
||||||
|

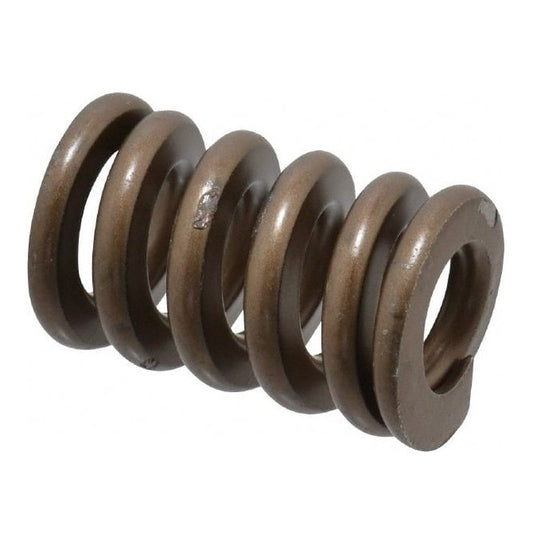

Part Number: DS-254-051-HD (Each)
Die Springs - 25.4x12.7x50.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$34.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 7.6 mm
Load at Optimal: 1160.5 N
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-254-051-HD (Each)
Die Springs - 25.4x12.7x50.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$34.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
11.1
mm |
Load at Optimal
621.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 17.8 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-254-044-MD (Each)
Die Springs - 25.4x12.7x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$25.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.1 mm
Load at Optimal: 621.6 N
Maximum Deflection: 40 Percent
Maximum Deflection: 17.8 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-254-044-MD (Each)
Die Springs - 25.4x12.7x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$25.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
20
Percent |
Optimum Deflection
10.2
mm |
Load at Optimal
714.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 30 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-254-051-MHD (Each)
Die Springs - 25.4x12.7x50.8 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$28.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
20
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 10.2 mm
Load at Optimal: 714.0 N
Maximum Deflection: 30 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-254-051-MHD (Each)
Die Springs - 25.4x12.7x50.8 mm Imperial - Carbon Spring Steel 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$28.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
20
Percent |
Optimum Deflection
12.7
mm |
Load at Optimal
716.3
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 30 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|

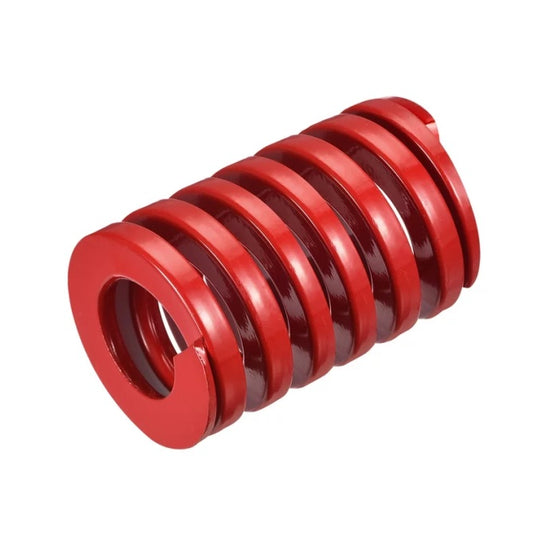

Part Number: DS-254-064-MHDS (Each)
Die Springs - 25.4x12.7x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$47.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
20
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 12.7 mm
Load at Optimal: 716.3 N
Maximum Deflection: 30 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-254-064-MHDS (Each)
Die Springs - 25.4x12.7x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$47.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
40.00
mm (Equiv. 1.575 in.) |
Rod Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.0
mm |
Load at Optimal
2052.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-400-076-MD (Each)
Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 14, 2026 Regular price
$139.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
40.00
mm (Equiv. 1.575 in.) |
Rod Diameter (A)
20.00
mm (Equiv. 0.787 in.) |
Length (L)
76.00
mm (Equiv. 2.992 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 19.0 mm
Load at Optimal: 2052.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 28.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-400-076-MD (Each)
Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 14, 2026 Regular price
$139.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
