Collection: Springs - Die - Metric

Springs -> Die -> Metric

There are 7 products in the sub-categories of Springs - Die - Metric. Browse the Springs - Die - Metric products table. To narrow down the selection, please choose a sub-category from the links below.

Springs - Die - Metric - Extra Heavy Duty

A selection of Extra Heavy Duty Metric Die Springs. Colour coded yellow....

Springs - Die - Metric - Extra Heavy Duty

Springs - Die - Metric - Heavy Duty

A selection of Heavy Duty Metric Die Springs. Colour coded red. High...

Springs - Die - Metric - Heavy Duty

Springs - Die - Metric - Light Duty

A selection of Light Duty Metric Die Springs. Colour coded green. High...

Springs - Die - Metric - Light Duty

Springs - Die - Metric - Medium Duty

A selection of Medium Duty Metric Die Springs. Colour coded blue. High...

Springs - Die - Metric - Medium Duty

Category Details

This category includes various types of die springs.

Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.

Small Parts & Bearings

Additional resources:

Spings Catalogue PDF

A more comprehensive listing may be found in the Springs - Die - Metric category on the MBA Minibearings main store.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 113.1 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-038-MD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 113.1 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-100-038-MD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-MD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-MD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 4 Available Now

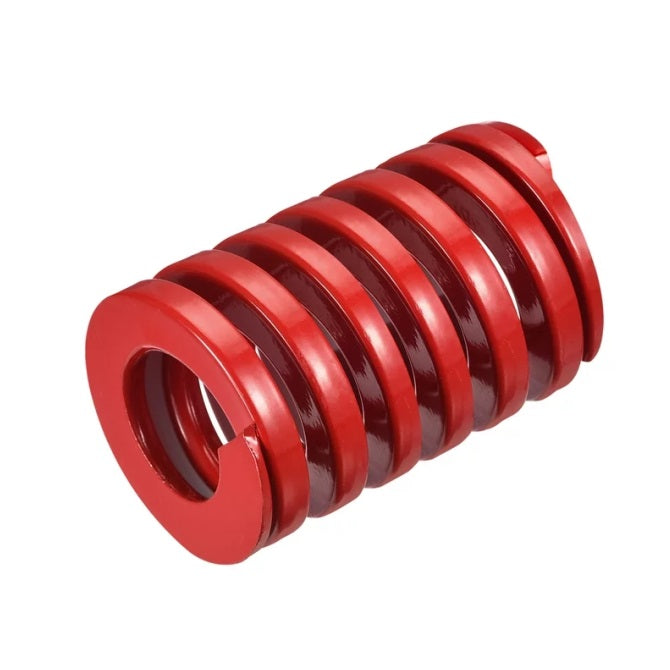

Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 162.5 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-038-HD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 162.5 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-100-038-HD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-HD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-HD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 4 Available Now

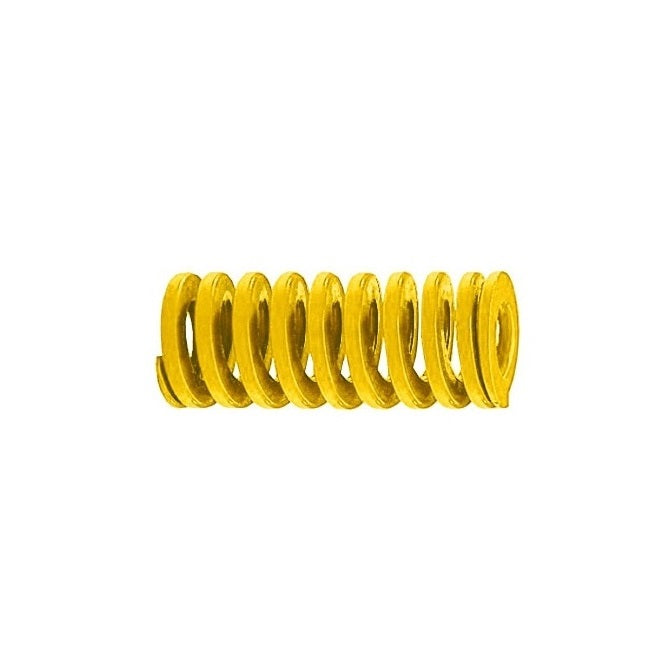

Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 225.2 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-038-EHD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 225.2 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Extra Heavy Duty
Part Number: DS-100-038-EHD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-EHD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-EHD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 4 Available Now

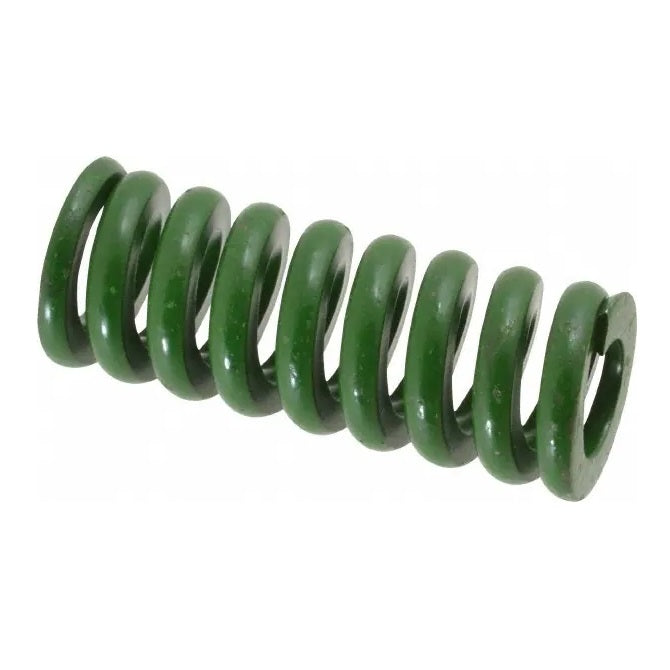

Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 64.6 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-038-LD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 38.00 mm (Equiv. 1.496 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 64.6 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric - Light Duty
Part Number: DS-100-038-LD (Each) Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
DS-100-038-LD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel DS-100-038-LD (Each) --- Die Springs - 10x5x38 mm Metric - Carbon Spring Steel Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 4 Available Now
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 305.00 mm (Equiv. 12.008 in.)	Optimum Deflection 1.1 Percent		Load at Optimal 83.9 N
Material: Carbon Spring Steel Maximum Deflection: 100.7 Percent Maximum Deflection: 17.4 mm Category: Springs - Die - Metric - Light Duty Deleted Item. Available while stocks last.
Part Number: DS-100-305-LD (Each) Die Springs - 10x5x305 mm Metric - Carbon Spring Steel 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Hole Diameter (B) 10.00 mm (Equiv. 0.394 in.)	Rod Diameter (A) 5.00 mm (Equiv. 0.197 in.)	Length (L) 305.00 mm (Equiv. 12.008 in.)	Optimum Deflection 1.1 Percent
Material: Carbon Spring Steel Load at Optimal: 83.9 N Maximum Deflection: 100.7 Percent Maximum Deflection: 17.4 mm Category: Springs - Die - Metric - Light Duty Deleted Item. Available while stocks last.
Part Number: DS-100-305-LD (Each) Die Springs - 10x5x305 mm Metric - Carbon Spring Steel 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
DS-100-305-LD (Each) --- Die Springs - 10x5x305 mm Metric - Carbon Spring Steel Sale DS-100-305-LD (Each) --- Die Springs - 10x5x305 mm Metric - Carbon Spring Steel Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 1881.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-250-076-HD (Each) Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel 2 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
Hole Diameter (B) 25.00 mm (Equiv. 0.984 in.)	Rod Diameter (A) 12.50 mm (Equiv. 0.492 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 1881.0 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric - Heavy Duty
Part Number: DS-250-076-HD (Each) Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel 2 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
DS-250-076-HD (Each) --- Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel DS-250-076-HD (Each) --- Die Springs - 25x12.5x76 mm Metric - Carbon Spring Steel Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 2052.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-400-076-MD (Each) Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jan 14, 2026 Regular price $139.05 AUD Regular price Sale price $139.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 2052.0 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric - Medium Duty
Part Number: DS-400-076-MD (Each) Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jan 14, 2026 Regular price $139.05 AUD Regular price Sale price $139.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-400-076-MD (Each) --- Die Springs - 40x20x76 mm Metric - Carbon Spring Steel DS-400-076-MD (Each) --- Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Regular price $139.05 AUD Regular price Sale price $139.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
