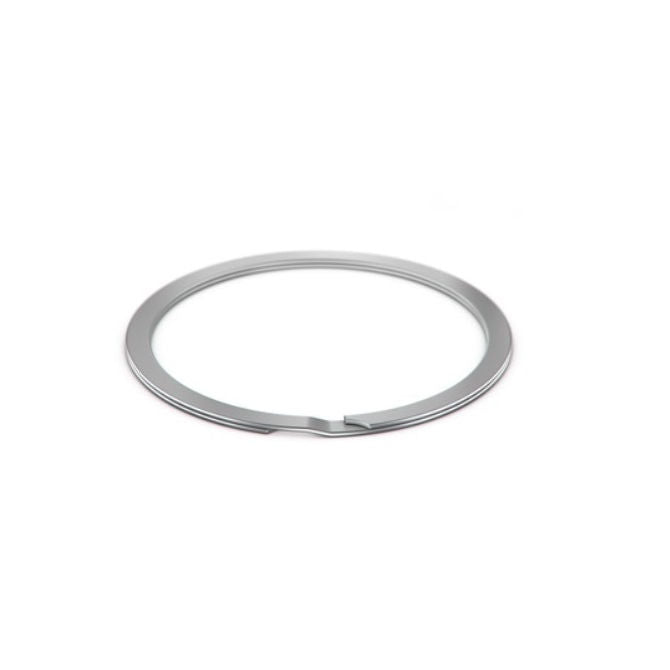

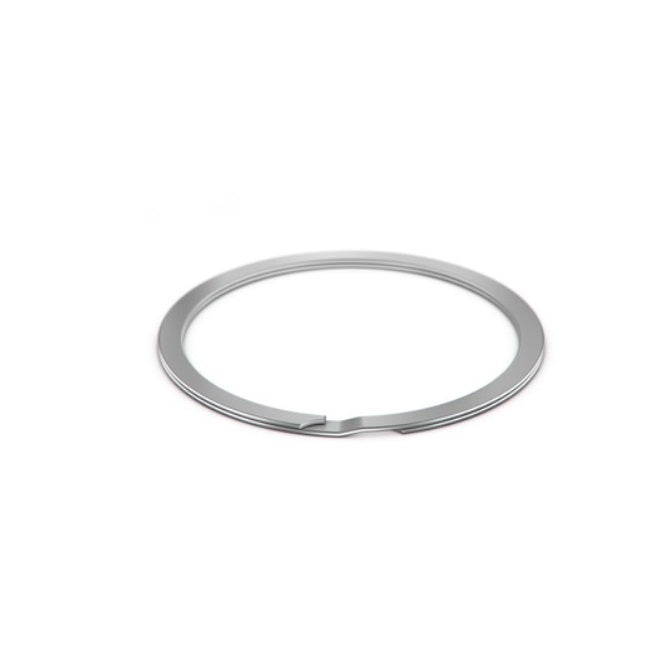

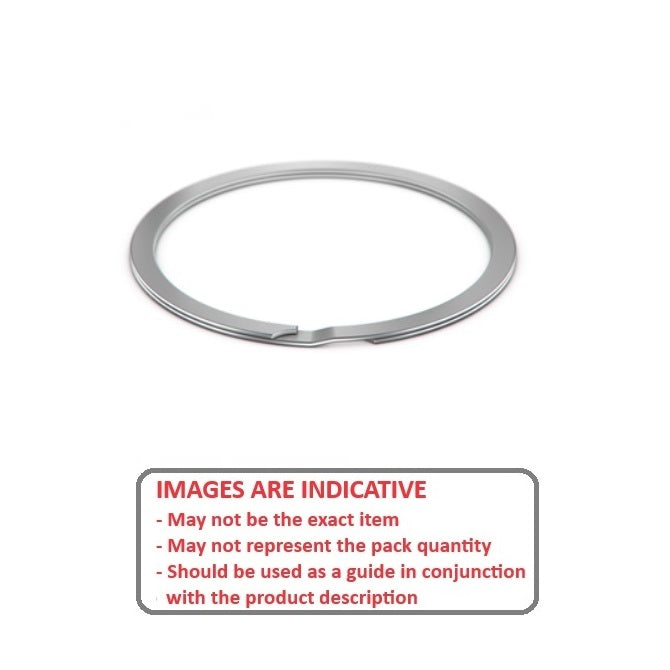

RR-100 (2 Pcs)
Spiral - 25.4 mm x 0.94 mm x 22.7 mm
MBA
Additional resources:Snap Rings
Spiral Rings and Snap Rings PDF
Qty: 111 available now (222 pcs)
Order 50 or more (100 pcs) for $4.29 AUD per 2
Couldn't load pickup availability
Base Category: Spiral Rings - Internal
Top Level Category: Spiral Rings - Internal - Medium Duty - Carbon Steel
Product Details:Additional stock available from USA subject to Prior Sale = 26102

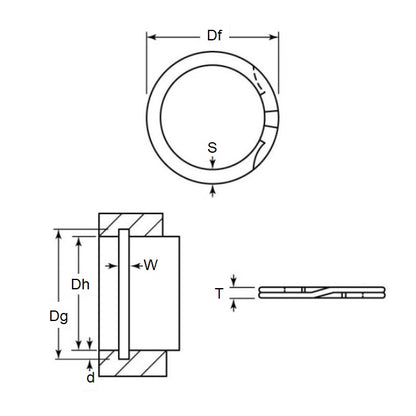

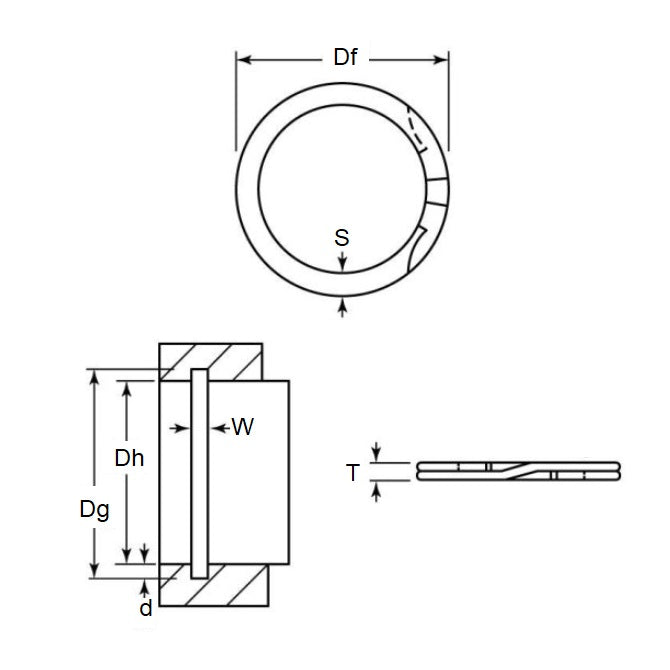

Bore (Db): 25.40mm
Spring Steel
- Thickness (T): 0.94mm
+/-0.05
- Approx. Free ID: 22.7mm
- Free OD Max. (Dr): 26.52mm
+0.33/-0.00
- Radial Wall (S): 1.91mm
+/-0.11
- Groove Dia. (Dg): 26.50mm
+/-0.07
- Groove Width (W): 1.11mm
-
+/-0.03
- Groove Depth (d): 0.53
Brand: MBA
Country of Origin: US
Alternatives: 92602A150, AI-100, WH-100
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
