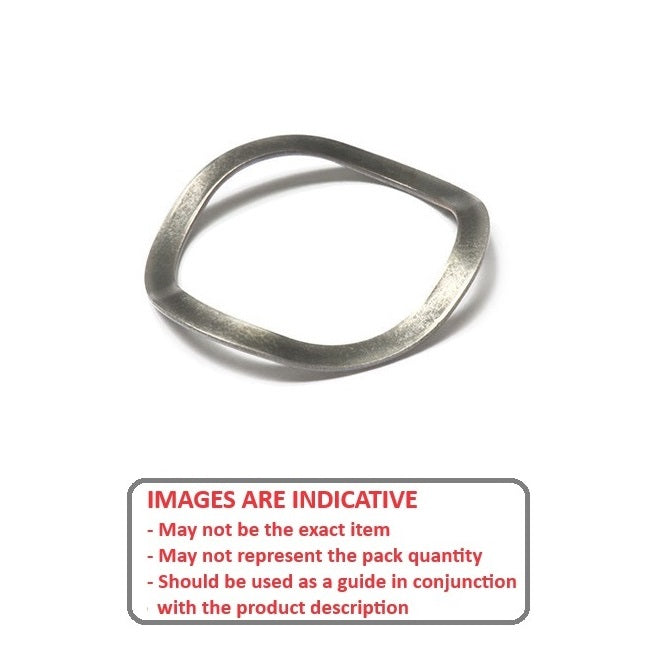

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

W0240-T-032-035-W3-C

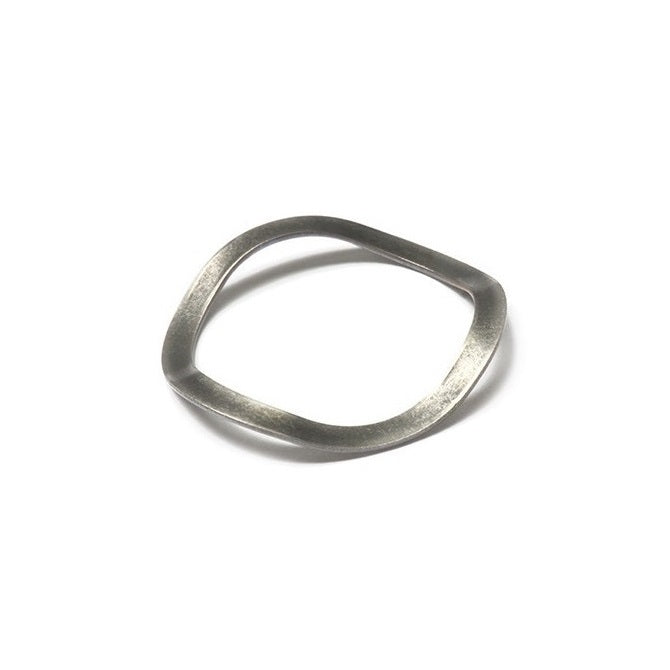

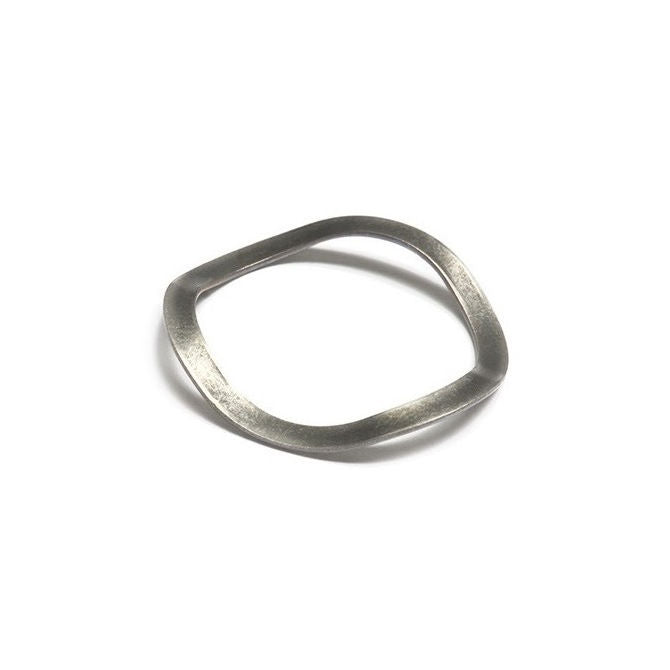

Spring Washers - 24 mm x 32 mm x 3.5 mm

Name: 1131264 | W0240-T-032-035-W3-C --- Spring Washers - 24 mm x 32 mm x 3.5 mm
Brand: MBA
SKU: W0240T032035W3C
Price: 4.41 AUD
Availability: InStock

MBA

Category: Washers - Spring - 3 Wave Type - Carbon Steel

Additional resources:
Screws

Price:

$4.41 AUD

Each
Qty: 90 available now
Order 50 or more for $3.97 AUD Each

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Apr 15, 2025

Quantity

Base Category: Washers - Spring

Top Level Category: Washers - Spring - 3 Wave Type - Carbon Steel

Product Details:

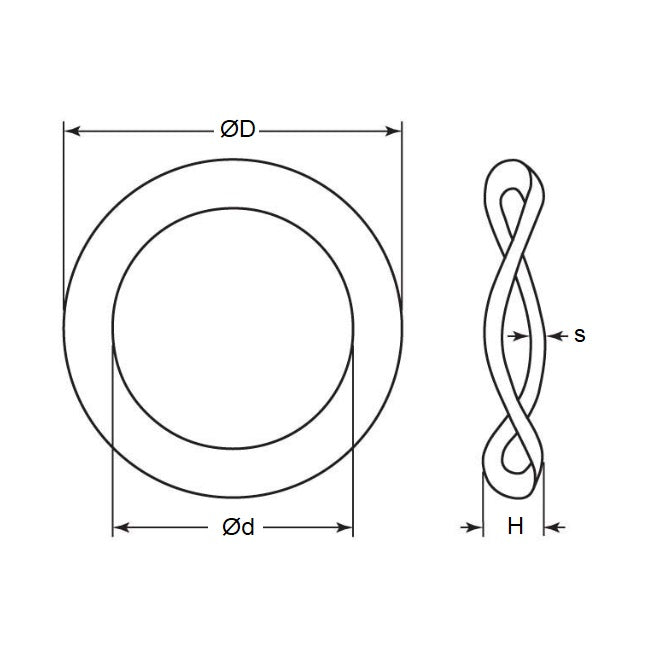

Nom. ID (d): 24.00mm
_{+ 0.3 / + 0.7}

Carbon Spring Steel

Nom. OD (D): 32.00mm
_{- 0.3 / - 0.7}
Nom. Height (H): 3.50mm
Thickness (s): 0.30mm
Info: Suits OD of 6002, 6201 bearing (Equiv EPL025)
Type: 3 Wave Series
Nominal Screw Size: M24
Actual ID (Ref): 25.5mm
Max Kg at Yeld Point: 7.4Kg

Brand: MBA
Country of Origin: DE

Alternatives: EPL025, EPL25, W0250T032030HW

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
