External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring

Name: 1132389 | RSN-098 (PK-10) --- External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Rating: 5.0 (1 reviews)

RSN-098 (PK-10)

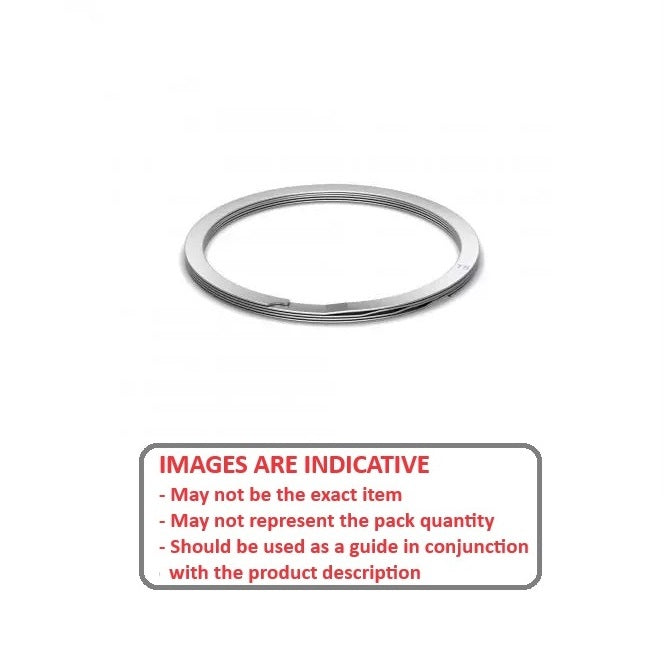

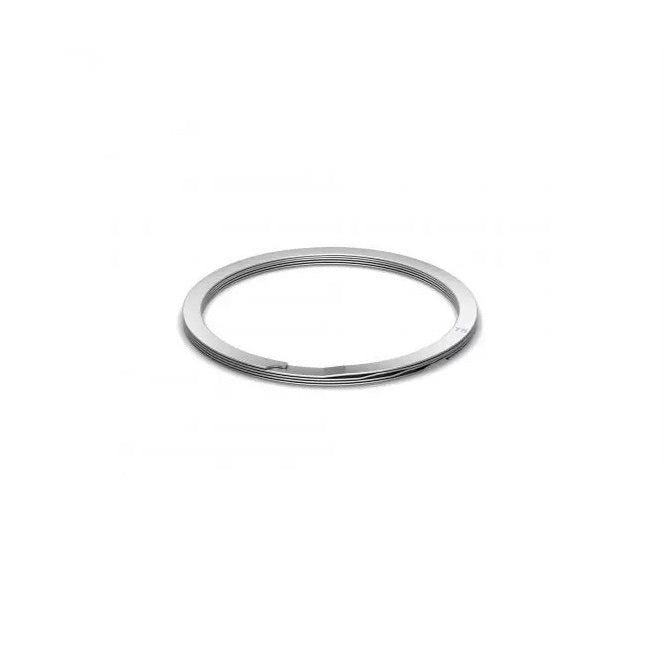

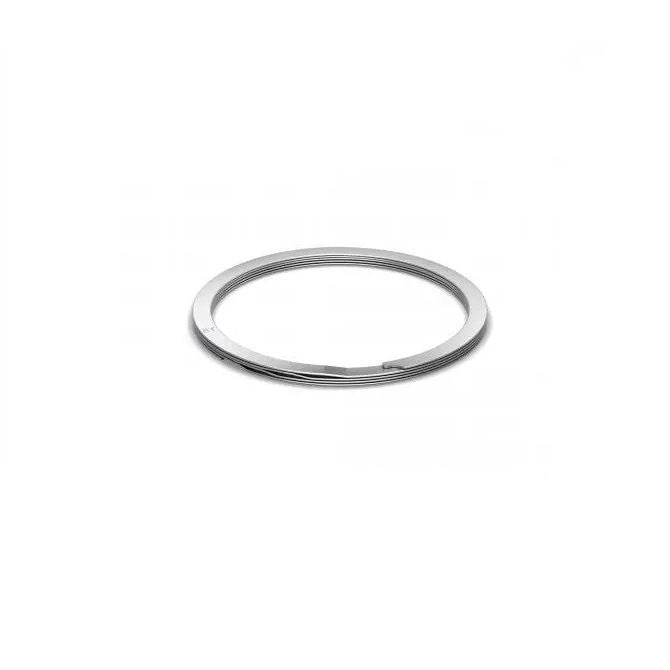

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$8.00 AUD

~~$15.20 AUD~~ $8.00 AUD

Priced, Stocked and Sold Per 10 Units

Excludes GST and overseas Taxes & Duties

Qty: 2 packs (20 pcs) available now

Only 2 packs may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

Product Details

Deleted Item. Available while stocks last.

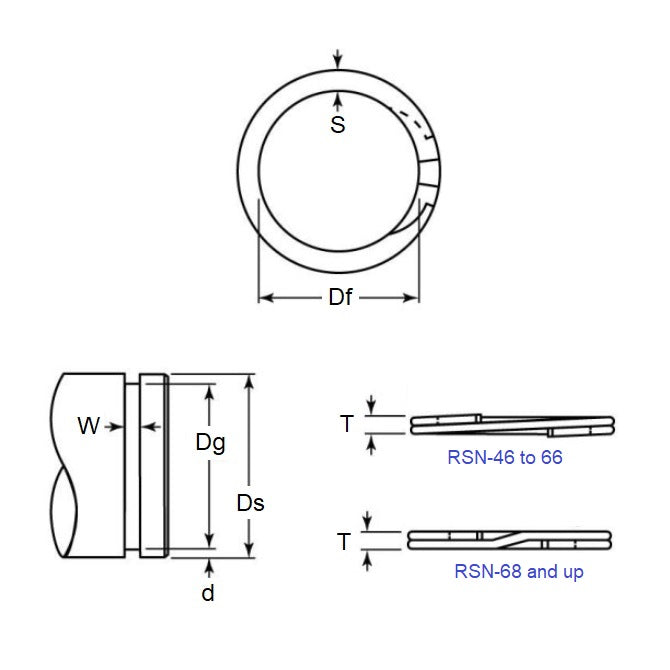

Shaft Diameter (Ds): 24.99mm
_{(24.99mm is 0.984 in.)}

Carbon Spring Steel

Shaft Diameter (Ds): 24.99mm
_{(24.99mm is 0.984 in.)}
Clip Thickness (T): 1.07mm
_{+/- 0.05}
_{(1.07mm is 0.042 in.)}
Groove Dia. (Dg): 23.52mm
_{(23.52mm is 0.926 in.)}
Approx. Loose Circlip ID (A): 23.24mm
_{+ 0.00 / - 0.33}
Radial Wall (S) Approx.: 2.16mm
_{+/- 0.10}
Groove Width (W): 1.21mm
_{+/- 0.08}
Approx. Loose Clip OD: 27.56
_{+/- 0.04}
Groove Depth (d): 0.74

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

Associated Spring® AHE-098
Smalley® RSN-098
Spirolox® RSN-098
Smalley® WSM-098
RSN098
WSM098
AHE098

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
