Collection: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

Retaining Rings (With Images)

External

Spiral Rings

Heavy Duty

Carbon Steel
Stainless Steel

44 Products in this selection

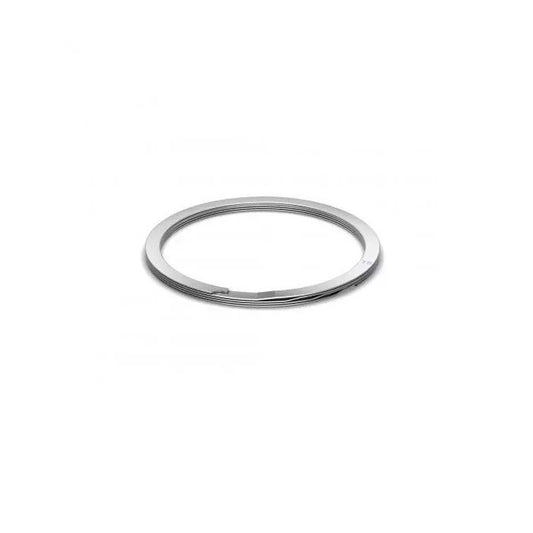

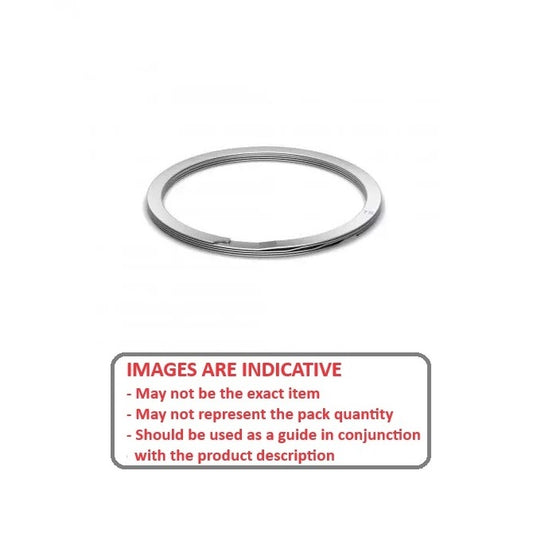

AHE / WSM / AS3216 / RSN / MIL-R-27426A2 - Spring Steel
Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
Requires no tools for removal.
Equivalent to Associated Spring: AHE, Smalley: WSM, Spirolox and Ramsey: RSN, Aerospace: AS3216, MIL-R-27426A2

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S)	Groove Width (W)
11.91 mm	0.64 mm +/-0.06	11.25 mm	11.08 mm +0.00/-0.33	1.14 mm +/-0.10	0.78 mm +/-0.05
Material: Spring Steel Approx. Loose Clip OD: 13.36 +/-0.04 Groove Depth (d): 0.33
Part Number: RSN-046 Spiral - 11.91 mm x 0.64 mm x 11.25 mm / Retaining Rings 6 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
11.91 mm	0.64 mm +/-0.06	11.25 mm	11.08 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.78 mm +/-0.05 Approx. Loose Clip OD: 13.36 +/-0.04 Groove Depth (d): 0.33
Part Number: RSN-046 Spiral - 11.91 mm x 0.64 mm x 11.25 mm / Retaining Rings 6 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each
RSN-046 --- Spiral - 11.91 mm x 0.64 mm x 11.25 mm Spring Steel RSN-046 --- Spiral - 11.91 mm x 0.64 mm x 11.25 mm Spring Steel Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 6 Available Now
12.70 mm	0.89 mm +/-0.05	11.89 mm	11.81 mm +0.00/-0.33	1.27 mm +/-0.10	1.03 mm +/-0.05
Material: Spring Steel Approx. Loose Clip OD: 14.35 +/-0.04 Groove Depth (d): 0.41
Part Number: RSN-050 (2 Pcs) Spiral - 12.7 mm x 0.89 mm x 11.89 mm / Retaining Rings 25 units (50 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 2
12.70 mm	0.89 mm +/-0.05	11.89 mm	11.81 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.27 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip OD: 14.35 +/-0.04 Groove Depth (d): 0.41
Part Number: RSN-050 (2 Pcs) Spiral - 12.7 mm x 0.89 mm x 11.89 mm / Retaining Rings 25 units (50 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 2
RSN-050 (2 Pcs) --- Spiral - 12.7 mm x 0.89 mm x 11.89 mm Spring Steel RSN-050 (2 Pcs) --- Spiral - 12.7 mm x 0.89 mm x 11.89 mm Spring Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per 25 Available Now
14.27 mm	0.89 mm +/-0.05	13.46 mm	13.27 mm +0.00/-0.33	1.27 mm +/-0.10	1.03 mm +/-0.05
Material: Spring Steel Approx. Loose Clip OD: 15.81 +/-0.04 Groove Depth (d): 0.41
Part Number: RSN-056 Spiral - 14.27 mm x 0.89 mm x 13.46 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each
14.27 mm	0.89 mm +/-0.05	13.46 mm	13.27 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.27 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip OD: 15.81 +/-0.04 Groove Depth (d): 0.41
Part Number: RSN-056 Spiral - 14.27 mm x 0.89 mm x 13.46 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each
RSN-056 --- Spiral - 14.27 mm x 0.89 mm x 13.46 mm Spring Steel RSN-056 --- Spiral - 14.27 mm x 0.89 mm x 13.46 mm Spring Steel Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Out of stock! Backorder Now
15.09 mm	0.89 mm +/-0.05	14.20 mm	14.03 mm +0.00/-0.33	1.27 mm +/-0.10	1.03 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 16.57 +/-0.04 Groove Depth (d): 0.46
Part Number: RSN-059 Spiral - 15.09 mm x 0.89 mm x 14.2 mm / Retaining Rings 40 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each
15.09 mm	0.89 mm +/-0.05	14.20 mm	14.03 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.27 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.08 Approx. Loose Clip OD: 16.57 +/-0.04 Groove Depth (d): 0.46
Part Number: RSN-059 Spiral - 15.09 mm x 0.89 mm x 14.2 mm / Retaining Rings 40 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each
RSN-059 --- Spiral - 15.09 mm x 0.89 mm x 14.2 mm Spring Steel RSN-059 --- Spiral - 15.09 mm x 0.89 mm x 14.2 mm Spring Steel Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 40 Available Now
15.88 mm	0.89 mm +/-0.05	14.94 mm	14.77 mm +0.00/-0.33	1.40 mm +/-0.10	1.03 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 17.57 +/-0.04 Groove Depth (d): 0.48
Part Number: RSN-062 Spiral - 15.88 mm x 0.89 mm x 14.94 mm / Retaining Rings 25 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each
15.88 mm	0.89 mm +/-0.05	14.94 mm	14.77 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.40 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.08 Approx. Loose Clip OD: 17.57 +/-0.04 Groove Depth (d): 0.48
Part Number: RSN-062 Spiral - 15.88 mm x 0.89 mm x 14.94 mm / Retaining Rings 25 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each
RSN-062 --- Spiral - 15.88 mm x 0.89 mm x 14.94 mm Spring Steel RSN-062 --- Spiral - 15.88 mm x 0.89 mm x 14.94 mm Spring Steel Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per 25 Available Now
17.48 mm	1.07 mm +/-0.05	16.41 mm	16.26 mm +0.00/-0.33	1.65 mm +/-0.10	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 19.56 +/-0.04 Groove Depth (d): 0.53
Part Number: RSN-068 Spiral - 17.48 mm x 1.07 mm x 16.41 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each
17.48 mm	1.07 mm +/-0.05	16.41 mm	16.26 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 19.56 +/-0.04 Groove Depth (d): 0.53
Part Number: RSN-068 Spiral - 17.48 mm x 1.07 mm x 16.41 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each
RSN-068 --- Spiral - 17.48 mm x 1.07 mm x 16.41 mm Spring Steel RSN-068 --- Spiral - 17.48 mm x 1.07 mm x 16.41 mm Spring Steel Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
19.05 mm	1.07 mm +/-0.05	17.89 mm	17.72 mm +0.00/-0.33	1.65 mm +/-0.10	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 21.02 +/-0.04 Groove Depth (d): 0.58
Part Number: RSN-075 (2 Pcs) Spiral - 19.05 mm x 1.07 mm x 17.89 mm / Retaining Rings 4 units (8 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 2
19.05 mm	1.07 mm +/-0.05	17.89 mm	17.72 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 21.02 +/-0.04 Groove Depth (d): 0.58
Part Number: RSN-075 (2 Pcs) Spiral - 19.05 mm x 1.07 mm x 17.89 mm / Retaining Rings 4 units (8 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 2
RSN-075 (2 Pcs) --- Spiral - 19.05 mm x 1.07 mm x 17.89 mm Spring Steel RSN-075 (2 Pcs) --- Spiral - 19.05 mm x 1.07 mm x 17.89 mm Spring Steel Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per 4 Available Now
19.84 mm	1.07 mm +/-0.05	18.62 mm	18.45 mm +0.00/-0.33	1.65 mm +/-0.10	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 21.75 +/-0.04 Groove Depth (d): 0.61
Part Number: RSN-078 Spiral - 19.84 mm x 1.07 mm x 18.62 mm / Retaining Rings 30 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
19.84 mm	1.07 mm +/-0.05	18.62 mm	18.45 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 21.75 +/-0.04 Groove Depth (d): 0.61
Part Number: RSN-078 Spiral - 19.84 mm x 1.07 mm x 18.62 mm / Retaining Rings 30 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
RSN-078 --- Spiral - 19.84 mm x 1.07 mm x 18.62 mm Spring Steel RSN-078 --- Spiral - 19.84 mm x 1.07 mm x 18.62 mm Spring Steel Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per 30 Available Now
22.23 mm	1.07 mm +/-0.05	20.86 mm	20.67 mm +0.00/-0.33	1.91 mm +/-0.11	1.21 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 24.49 +/-0.04 Groove Depth (d): 0.69
Part Number: RSN-087 Spiral - 22.23 mm x 1.07 mm x 20.86 mm / Retaining Rings 48 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each
22.23 mm	1.07 mm +/-0.05	20.86 mm	20.67 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip OD: 24.49 +/-0.04 Groove Depth (d): 0.69
Part Number: RSN-087 Spiral - 22.23 mm x 1.07 mm x 20.86 mm / Retaining Rings 48 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each
RSN-087 --- Spiral - 22.23 mm x 1.07 mm x 20.86 mm Spring Steel RSN-087 --- Spiral - 22.23 mm x 1.07 mm x 20.86 mm Spring Steel Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per 48 Available Now
23.83 mm	1.07 mm +/-0.05	22.41 mm	22.16 mm +0.00/-0.33	1.91 mm +/-0.11	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 25.98 +/-0.04 Groove Depth (d): 0.71
Part Number: RSN-093 Spiral - 23.83 mm x 1.07 mm x 22.41 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each
23.83 mm	1.07 mm +/-0.05	22.41 mm	22.16 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 25.98 +/-0.04 Groove Depth (d): 0.71
Part Number: RSN-093 Spiral - 23.83 mm x 1.07 mm x 22.41 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each
RSN-093 --- Spiral - 23.83 mm x 1.07 mm x 22.41 mm Spring Steel RSN-093 --- Spiral - 23.83 mm x 1.07 mm x 22.41 mm Spring Steel Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Out of stock! Backorder Now
24.99 mm	1.07 mm +/-0.05	23.52 mm	23.24 mm +0.00/-0.33	2.16 mm +/-0.10	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 27.56 +/-0.04 Groove Depth (d): 0.74
Part Number: RSN-098 (10 Pcs) Spiral - 24.99 mm x 1.07 mm x 23.52 mm / Retaining Rings 2 units (20 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$0.00 AUD~~ Sale price $8.00 AUD Unit price per Per 10
24.99 mm	1.07 mm +/-0.05	23.52 mm	23.24 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 27.56 +/-0.04 Groove Depth (d): 0.74
Part Number: RSN-098 (10 Pcs) Spiral - 24.99 mm x 1.07 mm x 23.52 mm / Retaining Rings 2 units (20 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $8.00 AUD Regular price ~~$0.00 AUD~~ Sale price $8.00 AUD Unit price per Per 10
RSN-098 (10 Pcs) --- Spiral - 24.99 mm x 1.07 mm x 23.52 mm Spring Steel RSN-098 (10 Pcs) --- Spiral - 24.99 mm x 1.07 mm x 23.52 mm Spring Steel Regular price $8.00 AUD Regular price ~~$0.00 AUD~~ Sale price $8.00 AUD Unit price per 2 Available Now
25.40 mm	1.07 mm +/-0.05	23.88 mm	23.62 mm +0.00/-0.33	2.16 mm +/-0.10	1.21 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 27.94 +/-0.04 Groove Depth (d): 0.76
Part Number: RSN-100 (5 Pcs) Spiral - 25.4 mm x 1.07 mm x 23.88 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Per 5
25.40 mm	1.07 mm +/-0.05	23.88 mm	23.62 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip OD: 27.94 +/-0.04 Groove Depth (d): 0.76
Part Number: RSN-100 (5 Pcs) Spiral - 25.4 mm x 1.07 mm x 23.88 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Per 5
RSN-100 (5 Pcs) --- Spiral - 25.4 mm x 1.07 mm x 23.88 mm Spring Steel RSN-100 (5 Pcs) --- Spiral - 25.4 mm x 1.07 mm x 23.88 mm Spring Steel Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Out of stock! Backorder Now
26.97 mm	1.27 mm +/-0.05	25.35 mm	25.08 mm +0.00/-0.33	2.62 mm +/-0.11	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 30.32 +/-0.05 Groove Depth (d): 0.81
Part Number: RSN-106 Spiral - 26.97 mm x 1.27 mm x 25.35 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each
26.97 mm	1.27 mm +/-0.05	25.35 mm	25.08 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 2.62 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 30.32 +/-0.05 Groove Depth (d): 0.81
Part Number: RSN-106 Spiral - 26.97 mm x 1.27 mm x 25.35 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each
RSN-106 --- Spiral - 26.97 mm x 1.27 mm x 25.35 mm Spring Steel RSN-106 --- Spiral - 26.97 mm x 1.27 mm x 25.35 mm Spring Steel Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Out of stock! Backorder Now
28.58 mm	1.27 mm +/-0.05	26.90 mm	26.58 mm +0.00/-0.33	2.62 mm +/-0.11	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 31.82 +/-0.05 Groove Depth (d): 0.84
Part Number: RSN-112 (4 Pcs) Spiral - 28.58 mm x 1.27 mm x 26.9 mm / Retaining Rings 1 pack (4 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Per 4
28.58 mm	1.27 mm +/-0.05	26.90 mm	26.58 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 2.62 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 31.82 +/-0.05 Groove Depth (d): 0.84
Part Number: RSN-112 (4 Pcs) Spiral - 28.58 mm x 1.27 mm x 26.9 mm / Retaining Rings 1 pack (4 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Per 4
RSN-112 (4 Pcs) --- Spiral - 28.58 mm x 1.27 mm x 26.9 mm Spring Steel RSN-112 (4 Pcs) --- Spiral - 28.58 mm x 1.27 mm x 26.9 mm Spring Steel Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per 1 Available Now
30.18 mm	1.27 mm +/-0.05	28.40 mm	28.07 mm +0.00/-0.33	2.62 mm +/-0.11	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 33.31 +/-0.05 Groove Depth (d): 0.89
Part Number: RSN-118 Spiral - 30.18 mm x 1.27 mm x 28.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Each
30.18 mm	1.27 mm +/-0.05	28.40 mm	28.07 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 2.62 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 33.31 +/-0.05 Groove Depth (d): 0.89
Part Number: RSN-118 Spiral - 30.18 mm x 1.27 mm x 28.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Each
RSN-118 --- Spiral - 30.18 mm x 1.27 mm x 28.4 mm Spring Steel RSN-118 --- Spiral - 30.18 mm x 1.27 mm x 28.4 mm Spring Steel Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Out of stock! Backorder Now
31.75 mm	1.27 mm +/-0.05	29.87 mm	29.53 mm +0.00/-0.33	2.62 mm +/-0.11	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 34.77 +/-0.05 Groove Depth (d): 0.94
Part Number: RSN-125 (5 Pcs) Spiral - 31.75 mm x 1.27 mm x 29.87 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $51.77 AUD Regular price Sale price $51.77 AUD Unit price per Per 5
31.75 mm	1.27 mm +/-0.05	29.87 mm	29.53 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 2.62 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 34.77 +/-0.05 Groove Depth (d): 0.94
Part Number: RSN-125 (5 Pcs) Spiral - 31.75 mm x 1.27 mm x 29.87 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $51.77 AUD Regular price Sale price $51.77 AUD Unit price per Per 5
RSN-125 (5 Pcs) --- Spiral - 31.75 mm x 1.27 mm x 29.87 mm Spring Steel RSN-125 (5 Pcs) --- Spiral - 31.75 mm x 1.27 mm x 29.87 mm Spring Steel Regular price $51.77 AUD Regular price Sale price $51.77 AUD Unit price per Out of stock! Backorder Now
33.32 mm	1.27 mm +/-0.05	31.29 mm	30.99 mm +0.00/-0.33	3.00 mm +/-0.10	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 36.99 +/-0.05 Groove Depth (d): 1.02
Part Number: RSN-131 Spiral - 33.32 mm x 1.27 mm x 31.29 mm / Retaining Rings 6 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each
33.32 mm	1.27 mm +/-0.05	31.29 mm	30.99 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 36.99 +/-0.05 Groove Depth (d): 1.02
Part Number: RSN-131 Spiral - 33.32 mm x 1.27 mm x 31.29 mm / Retaining Rings 6 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each
RSN-131 --- Spiral - 33.32 mm x 1.27 mm x 31.29 mm Spring Steel RSN-131 --- Spiral - 33.32 mm x 1.27 mm x 31.29 mm Spring Steel Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per 6 Available Now
34.93 mm	1.27 mm +/-0.05	32.79 mm	32.48 mm +0.00/-0.33	3.00 mm +/-0.10	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 38.48 +/-0.05 Groove Depth (d): 1.07
Part Number: RSN-137 (5 Pcs) Spiral - 34.93 mm x 1.27 mm x 32.79 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 5
34.93 mm	1.27 mm +/-0.05	32.79 mm	32.48 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 38.48 +/-0.05 Groove Depth (d): 1.07
Part Number: RSN-137 (5 Pcs) Spiral - 34.93 mm x 1.27 mm x 32.79 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 5
RSN-137 (5 Pcs) --- Spiral - 34.93 mm x 1.27 mm x 32.79 mm Spring Steel RSN-137 (5 Pcs) --- Spiral - 34.93 mm x 1.27 mm x 32.79 mm Spring Steel Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Out of stock! Backorder Now
36.53 mm	1.27 mm +/-0.05	34.29 mm	33.97 mm +0.00/-0.33	3.00 mm +/-0.10	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 39.97 +/-0.05 Groove Depth (d): 1.12
Part Number: RSN-143 Spiral - 36.53 mm x 1.27 mm x 34.29 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each
36.53 mm	1.27 mm +/-0.05	34.29 mm	33.97 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 39.97 +/-0.05 Groove Depth (d): 1.12
Part Number: RSN-143 Spiral - 36.53 mm x 1.27 mm x 34.29 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each
RSN-143 --- Spiral - 36.53 mm x 1.27 mm x 34.29 mm Spring Steel RSN-143 --- Spiral - 36.53 mm x 1.27 mm x 34.29 mm Spring Steel Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Out of stock! Backorder Now
38.10 mm	1.27 mm +/-0.05	35.71 mm	35.43 mm +0.00/-0.33	3.00 mm +/-0.10	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 41.43 +/-0.05 Groove Depth (d): 1.19
Part Number: RSN-150 Spiral - 38.1 mm x 1.27 mm x 35.71 mm / Retaining Rings 18 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Each
38.10 mm	1.27 mm +/-0.05	35.71 mm	35.43 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 41.43 +/-0.05 Groove Depth (d): 1.19
Part Number: RSN-150 Spiral - 38.1 mm x 1.27 mm x 35.71 mm / Retaining Rings 18 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Each
RSN-150 --- Spiral - 38.1 mm x 1.27 mm x 35.71 mm Spring Steel RSN-150 --- Spiral - 38.1 mm x 1.27 mm x 35.71 mm Spring Steel Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per 18 Available Now
39.67 mm	1.58 mm +/-0.08	37.29 mm	36.89 mm +0.00/-0.51	3.25 mm +/-0.10	1.78 mm +/-0.13
Material: Spring Steel Approx. Loose Clip OD: 43.39 +/-0.05 Groove Depth (d): 1.19
Part Number: RSN-156 Spiral - 39.67 mm x 1.58 mm x 37.29 mm / Retaining Rings 5 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.86 AUD Regular price Sale price $10.86 AUD Unit price per Each
39.67 mm	1.58 mm +/-0.08	37.29 mm	36.89 mm +0.00/-0.51
Material: Spring Steel Radial Wall (S): 3.25 mm +/-0.10 Groove Width (W): 1.78 mm +/-0.13 Approx. Loose Clip OD: 43.39 +/-0.05 Groove Depth (d): 1.19
Part Number: RSN-156 Spiral - 39.67 mm x 1.58 mm x 37.29 mm / Retaining Rings 5 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.86 AUD Regular price Sale price $10.86 AUD Unit price per Each
RSN-156 --- Spiral - 39.67 mm x 1.58 mm x 37.29 mm Spring Steel RSN-156 --- Spiral - 39.67 mm x 1.58 mm x 37.29 mm Spring Steel Regular price $10.86 AUD Regular price Sale price $10.86 AUD Unit price per 5 Available Now
41.28 mm	1.58 mm +/-0.08	38.84 mm	38.39 mm +0.00/-0.51	3.25 mm +/-0.10	1.78 mm +/-0.13
Material: Spring Steel Approx. Loose Clip OD: 44.89 +/-0.05 Groove Depth (d): 2.03
Part Number: RSN-162 Spiral - 41.28 mm x 1.58 mm x 38.84 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each
41.28 mm	1.58 mm +/-0.08	38.84 mm	38.39 mm +0.00/-0.51
Material: Spring Steel Radial Wall (S): 3.25 mm +/-0.10 Groove Width (W): 1.78 mm +/-0.13 Approx. Loose Clip OD: 44.89 +/-0.05 Groove Depth (d): 2.03
Part Number: RSN-162 Spiral - 41.28 mm x 1.58 mm x 38.84 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each
RSN-162 --- Spiral - 41.28 mm x 1.58 mm x 38.84 mm Spring Steel RSN-162 --- Spiral - 41.28 mm x 1.58 mm x 38.84 mm Spring Steel Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now
42.85 mm	1.58 mm +/-0.08	40.36 mm	39.85 mm +0.00/-0.51	3.25 mm +/-0.10	1.78 mm +/-0.13
Material: Spring Steel Approx. Loose Clip OD: 46.35 +/-0.05 Groove Depth (d): 1.24
Part Number: RSN-168 Spiral - 42.85 mm x 1.58 mm x 40.36 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each
42.85 mm	1.58 mm +/-0.08	40.36 mm	39.85 mm +0.00/-0.51
Material: Spring Steel Radial Wall (S): 3.25 mm +/-0.10 Groove Width (W): 1.78 mm +/-0.13 Approx. Loose Clip OD: 46.35 +/-0.05 Groove Depth (d): 1.24
Part Number: RSN-168 Spiral - 42.85 mm x 1.58 mm x 40.36 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each
RSN-168 --- Spiral - 42.85 mm x 1.58 mm x 40.36 mm Spring Steel RSN-168 --- Spiral - 42.85 mm x 1.58 mm x 40.36 mm Spring Steel Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Out of stock! Backorder Now
44.45 mm	1.58 mm +/-0.08	41.91 mm	41.34 mm +0.00/-0.51	3.25 mm +/-0.10	1.78 mm +/-0.13
Material: Spring Steel Approx. Loose Clip OD: 47.84 +/-0.05 Groove Depth (d): 1.27
Part Number: RSN-175 (2 Pcs) Spiral - 44.45 mm x 1.58 mm x 41.91 mm / Retaining Rings 160 units (320 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 2
44.45 mm	1.58 mm +/-0.08	41.91 mm	41.34 mm +0.00/-0.51
Material: Spring Steel Radial Wall (S): 3.25 mm +/-0.10 Groove Width (W): 1.78 mm +/-0.13 Approx. Loose Clip OD: 47.84 +/-0.05 Groove Depth (d): 1.27
Part Number: RSN-175 (2 Pcs) Spiral - 44.45 mm x 1.58 mm x 41.91 mm / Retaining Rings 160 units (320 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 2
RSN-175 (2 Pcs) --- Spiral - 44.45 mm x 1.58 mm x 41.91 mm Spring Steel RSN-175 (2 Pcs) --- Spiral - 44.45 mm x 1.58 mm x 41.91 mm Spring Steel Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 160 Available Now
