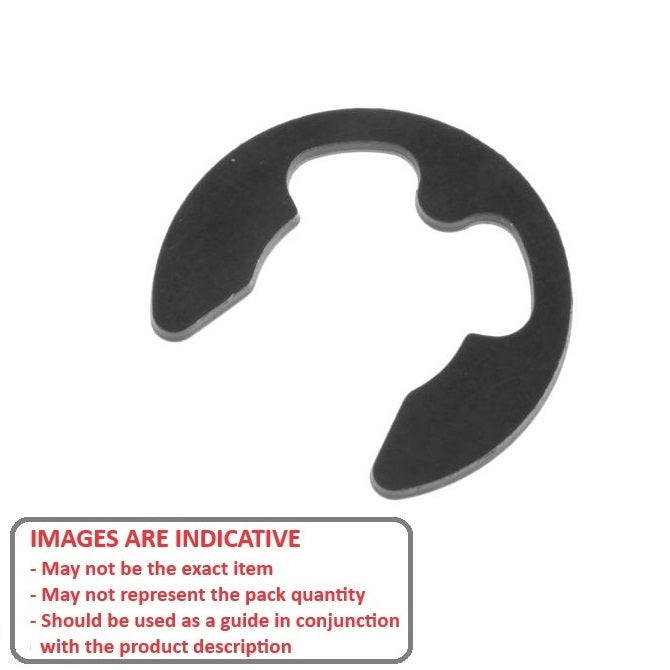

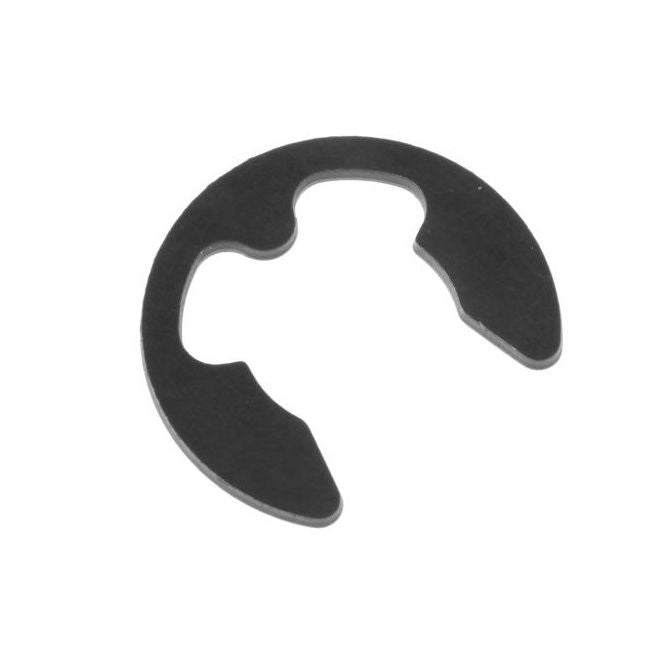

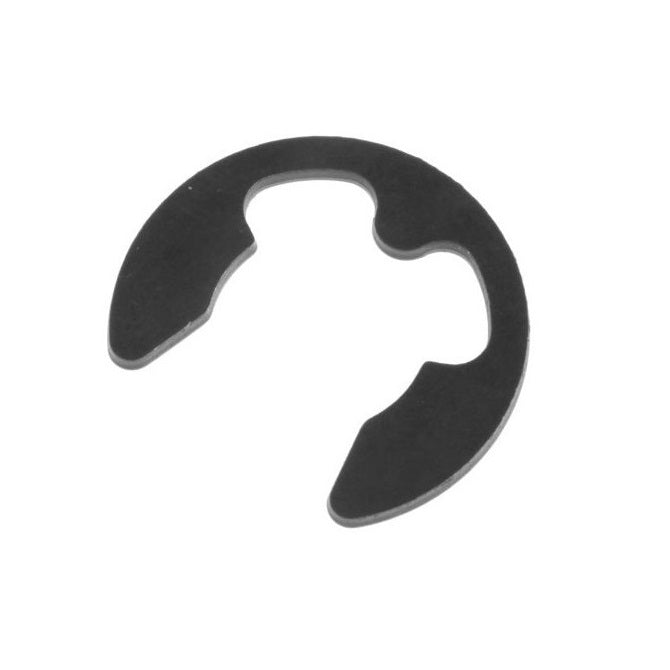

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

ECL-0190-0200-C (5 Pcs)
E-Clips Retaining Rings - 20 mm x 19 mm x 1.75 mm

ECL-0190-0200-C (5 Pcs)
E-Clips Retaining Rings - 20 mm x 19 mm x 1.75 mm

MBA

Additional resources:
E-Clip Applicators
Price:
$9.95 AUD
$9.95 AUD
per 5
Qty: 20 available now (100 pcs)
Order 50 or more (250 pcs) for $8.96 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Apr 19, 2025

Base Category: Retaining Rings - E-Clips

Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 1080

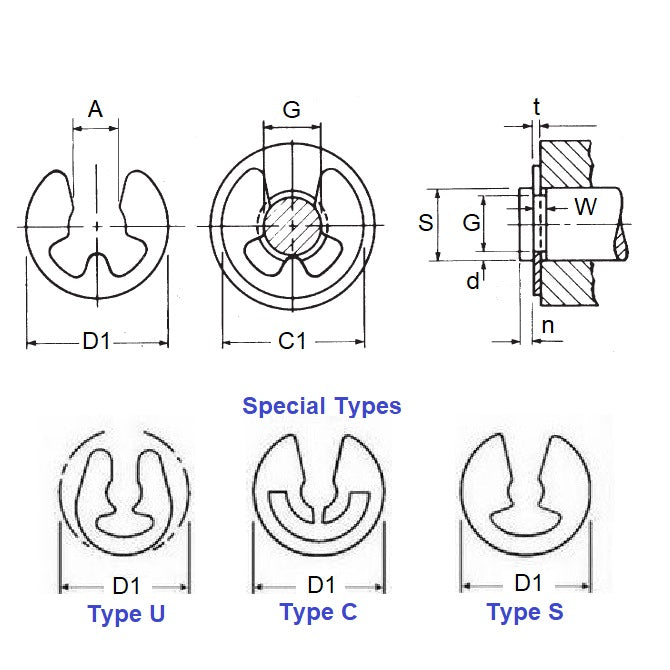

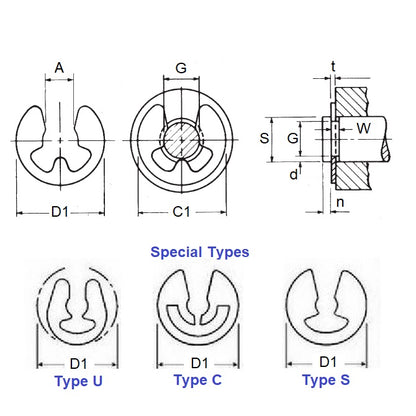

Minimum Rec. Shaft Dia (S): 20.00mm
+ 11.00 / - 0.00

Carbon Steel
  • Groove Dia. (Dg): 19.00mm
    + 0.00 / - 0.13
  • Clip Thickness (T): 1.75mm
    +/ - 0.03
  • Clip OD Loose (D1): 36.70mm
  • Groove Width (W): 1.85mm
  • Maximum Rec. Shaft Dia (S): 31.00
  • Clip OD in groove (C1): 37.60mm
  • Loose Clip ID (A): 15.92mm
  • Min. Extension (n): 3.50
  • Standard: DIN6799

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98543A121, RA19.0, DE-190, D1500-0190, D1500-0190APP, 1500-0190APP, 1500-0190, NoCor, Cirteq

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
