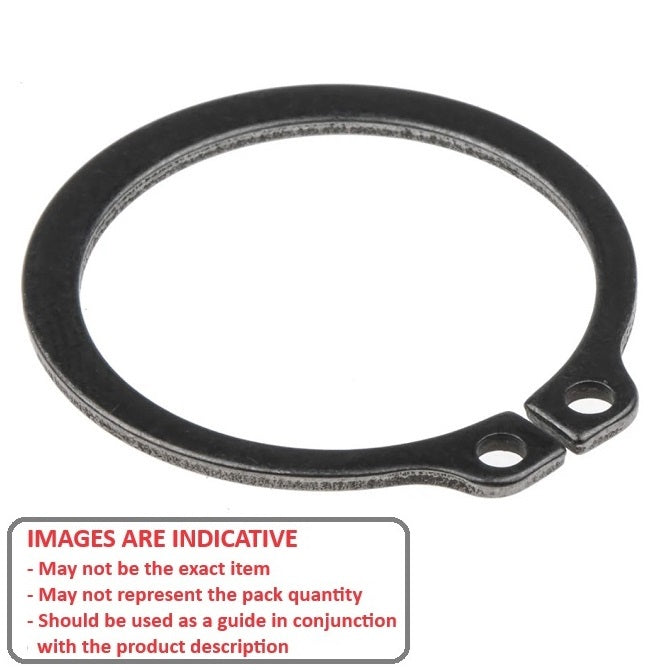

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

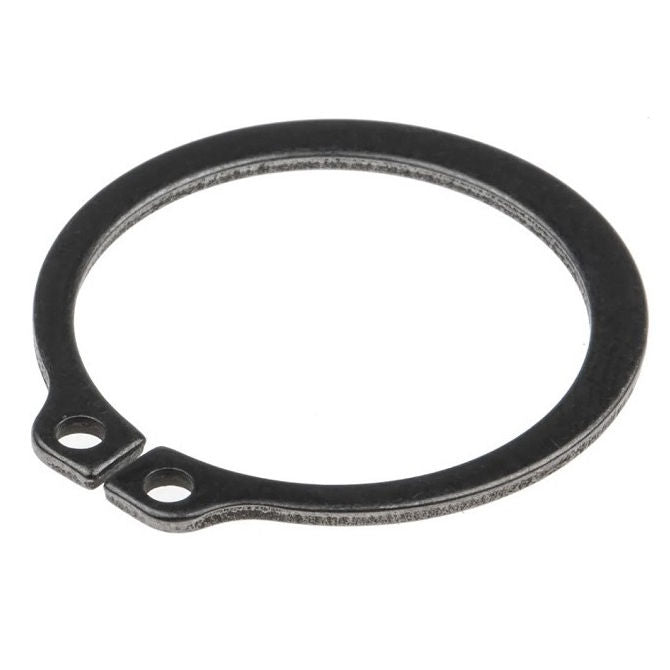

CCE-20000-C

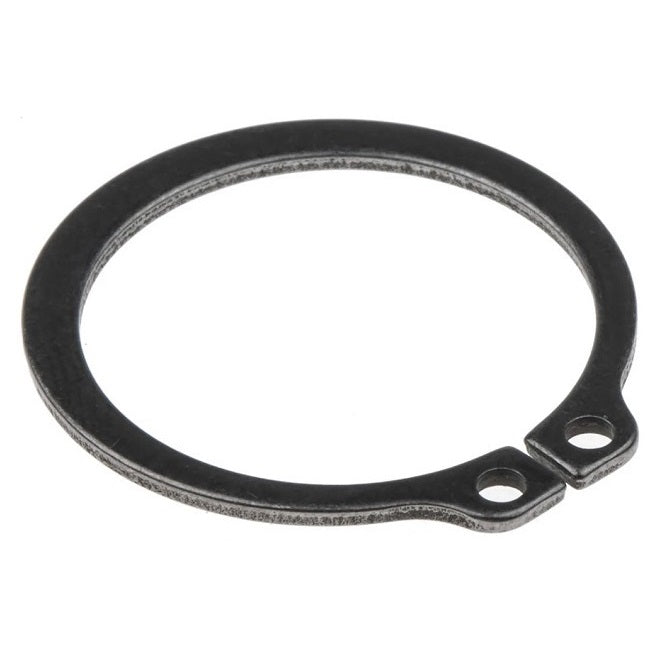

External Retaining Rings - 200 mm x 4 mm x 194.28 mm

CCE-20000-C
External Retaining Rings - 200 mm x 4 mm x 194.28 mm

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Price:
$45.32 AUD
$45.32 AUD
Each
Qty: 1 available now
Order 50 or more for $40.79 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Apr 19, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 7

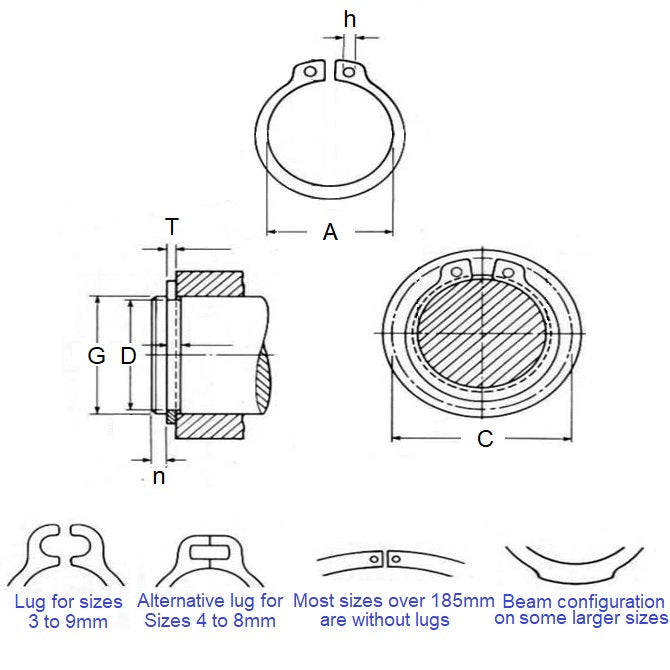

Shaft Diameter (Ds): 200.00mm
Carbon Steel
  • Clip Thickness (T): 4.00mm
    + 0.00 / - 0.72
  • Groove Dia. (Dg): 194.28mm
    + 0.00 / - 0.10
  • Approx. Loose Circlip ID (A): 191.22mm
  • Groove Width (W): 4.15mm
  • Clearance on Shaft (C1): 224.00mm
  • Clearance in Groove (C1): 230.00mm
  • Min. Lug Diameter (h): 4.00mm
  • Min. Extension (n): 7.50
  • Standard: DIN471

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98541A323, A200-WAS, A200X4, A-200, 471-200, DSH-200, D1400-200, D1400-2000, BN818-200, 1400-2000, Ellison, Seeger, Bossard, Waldes, NoCor, Rotor Clip

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
