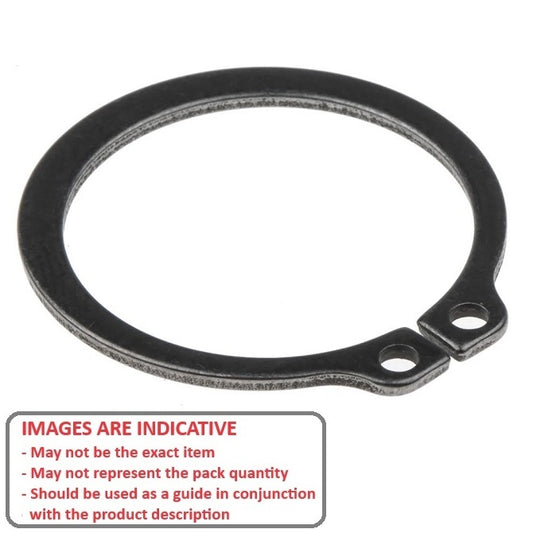

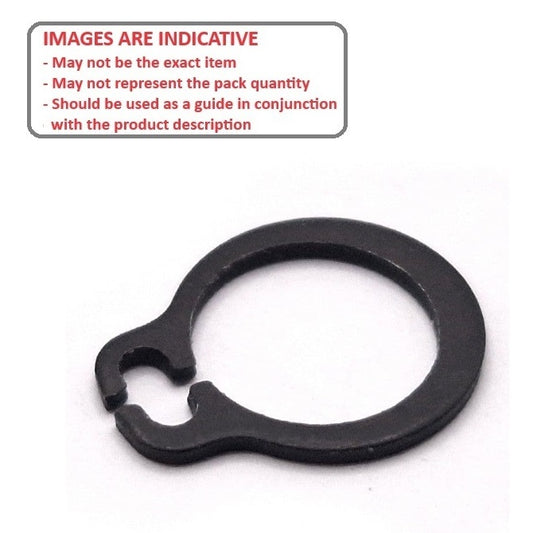

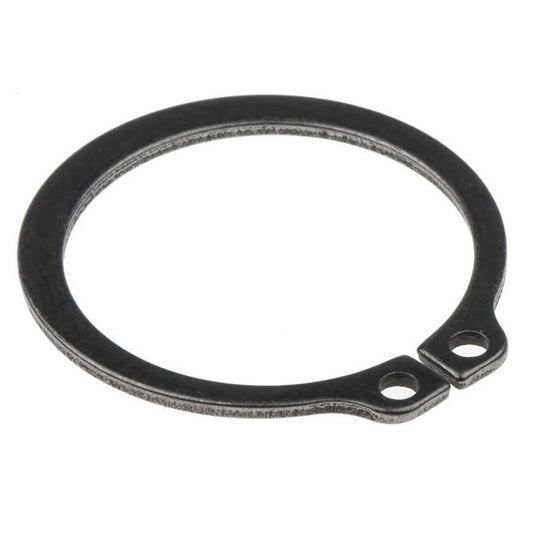

Collection: Retaining Rings - External - Circlips - Standard - Carbon Steel

Retaining Rings (With Images)

External

Circlips

Standard

380 Products in this selection

Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
Plain carbon steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S)	Groove Width (W)	Indicative Image
3.00 mm	0.40 mm + 0.00 / - 0.04	2.80 mm + 0.00 / - 0.05	2.70 mm		0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3 mm x 0.4 mm x 2.8 mm 34 units (3400 pcs) Available \| Backorders for more can be expected around Thu, Apr 17, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure ->
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
3.00 mm	0.40 mm + 0.00 / - 0.04	2.80 mm + 0.00 / - 0.05	2.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3 mm x 0.4 mm x 2.8 mm 34 units (3400 pcs) Available \| Backorders for more can be expected around Thu, Apr 17, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00300-C (100 Pcs) --- External Retaining Rings - 3 mm x 0.4 mm x 2.8 mm Carbon Steel CCE-00300-C (100 Pcs) --- External Retaining Rings - 3 mm x 0.4 mm x 2.8 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 34 Available Now
3.18 mm	0.25 mm +/- 0.038	2.97 mm +/- 0.025	2.80 mm		0.30 mm
Material: Carbon Steel Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Standard: MIL-16624
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18 mm x 0.25 mm x 2.97 mm 1 pack (140 pcs) Available \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$33.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
3.18 mm	0.25 mm +/- 0.038	2.97 mm +/- 0.025	2.80 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Standard: MIL-16624
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18 mm x 0.25 mm x 2.97 mm 1 pack (140 pcs) Available \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$33.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18 mm x 0.25 mm x 2.97 mm Carbon Steel Sale CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18 mm x 0.25 mm x 2.97 mm Carbon Steel Regular price $20.00 AUD Regular price ~~$33.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
3.97 mm	0.30 mm +/- 0.038	3.71 mm +/- 0.025	3.60 mm		0.30 mm
Material: Carbon Spring Steel Self Finish Standard: MIL-16624
Part Number: CCE-00397-C External Retaining Rings - 3.97 mm x 0.3 mm x 3.71 mm Contact Us \| Item Discontinued - Please contact us if you need a large quantity
3.97 mm	0.30 mm +/- 0.038	3.71 mm +/- 0.025	3.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.30 mm Standard: MIL-16624
Part Number: CCE-00397-C External Retaining Rings - 3.97 mm x 0.3 mm x 3.71 mm Contact Us \| Item Discontinued - Please contact us if you need a large quantity
4.00 mm	0.40 mm + 0.00 / - 0.04	3.80 mm + 0.00 / - 0.05	3.70 mm		0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4 mm x 0.4 mm x 3.8 mm 43 units (4300 pcs) Available \| Backorders for more can be expected around Tue, May 20, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure ->
4.00 mm	0.40 mm + 0.00 / - 0.04	3.80 mm + 0.00 / - 0.05	3.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4 mm x 0.4 mm x 3.8 mm 43 units (4300 pcs) Available \| Backorders for more can be expected around Tue, May 20, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00400-C (100 Pcs) --- External Retaining Rings - 4 mm x 0.4 mm x 3.8 mm Carbon Steel CCE-00400-C (100 Pcs) --- External Retaining Rings - 4 mm x 0.4 mm x 3.8 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 43 Available Now
4.78 mm	0.38 mm +/- 0.038	4.45 mm +/- 0.051	4.27 mm		0.46 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78 mm x 0.38 mm x 4.45 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Tue, Feb 18, 2025 Regular price $61.68 AUD Regular price Sale price $61.68 AUD Unit price per Per 100 View the product page first if you are unsure ->
4.78 mm	0.38 mm +/- 0.038	4.45 mm +/- 0.051	4.27 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78 mm x 0.38 mm x 4.45 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Tue, Feb 18, 2025 Regular price $61.68 AUD Regular price Sale price $61.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78 mm x 0.38 mm x 4.45 mm Carbon Steel CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78 mm x 0.38 mm x 4.45 mm Carbon Steel Regular price $61.68 AUD Regular price Sale price $61.68 AUD Unit price per Out of stock! Backorder Now
5.00 mm	0.60 mm + 0.00 / - 0.04	4.78 mm + 0.00 / - 0.05	4.70 mm		0.70 mm
Material: Carbon Steel Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5 mm x 0.6 mm x 4.78 mm 33 units (3300 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure ->
5.00 mm	0.60 mm + 0.00 / - 0.04	4.78 mm + 0.00 / - 0.05	4.70 mm
Material: Carbon Steel Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5 mm x 0.6 mm x 4.78 mm 33 units (3300 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00500-C (100 Pcs) --- External Retaining Rings - 5 mm x 0.6 mm x 4.78 mm Carbon Steel CCE-00500-C (100 Pcs) --- External Retaining Rings - 5 mm x 0.6 mm x 4.78 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 33 Available Now
5.01 mm	0.40 mm +/- 0.038	4.78 mm +/- 0.051	4.60 mm		0.50 mm
Material: Carbon Spring Steel Self Finish Standard: MIL-16624
Part Number: CCE-00501-C External Retaining Rings - 5.01 mm x 0.4 mm x 4.78 mm Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.01 mm	0.40 mm +/- 0.038	4.78 mm +/- 0.051	4.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.50 mm Standard: MIL-16624
Part Number: CCE-00501-C External Retaining Rings - 5.01 mm x 0.4 mm x 4.78 mm Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.56 mm	0.40 mm +/- 0.038	5.21 mm +/- 0.051	5.00 mm		0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Standard: MIL-16624
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56 mm x 0.4 mm x 5.21 mm 1 pack (50 pcs) Available \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$13.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
5.56 mm	0.40 mm +/- 0.038	5.21 mm +/- 0.051	5.00 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Standard: MIL-16624
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56 mm x 0.4 mm x 5.21 mm 1 pack (50 pcs) Available \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$13.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56 mm x 0.4 mm x 5.21 mm Carbon Steel Sale CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56 mm x 0.4 mm x 5.21 mm Carbon Steel Regular price $8.00 AUD Regular price ~~$13.20 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now Sale
5.95 mm	0.40 mm +/- 0.038	5.60 mm +/- 0.051	5.50 mm		0.50 mm
Material: Carbon Steel Standard: MIL-16624
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95 mm x 0.4 mm x 5.6 mm 3 units (300 pcs) Available \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$33.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
5.95 mm	0.40 mm +/- 0.038	5.60 mm +/- 0.051	5.50 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Standard: MIL-16624
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95 mm x 0.4 mm x 5.6 mm 3 units (300 pcs) Available \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$33.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95 mm x 0.4 mm x 5.6 mm Carbon Steel Sale CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95 mm x 0.4 mm x 5.6 mm Carbon Steel Regular price $20.00 AUD Regular price ~~$33.00 AUD~~ Sale price $20.00 AUD Unit price per 3 Available Now Sale
6.00 mm	0.70 mm + 0.00 / - 0.04	5.70 mm + 0.00 / - 0.05	5.60 mm		0.80 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6 mm x 0.7 mm x 5.7 mm 20 units (2000 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100 View the product page first if you are unsure ->
6.00 mm	0.70 mm + 0.00 / - 0.04	5.70 mm + 0.00 / - 0.05	5.60 mm
Material: Carbon Steel Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6 mm x 0.7 mm x 5.7 mm 20 units (2000 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00600-C (100 Pcs) --- External Retaining Rings - 6 mm x 0.7 mm x 5.7 mm Carbon Steel CCE-00600-C (100 Pcs) --- External Retaining Rings - 6 mm x 0.7 mm x 5.7 mm Carbon Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 20 Available Now
6.35 mm	0.64 mm +/- 0.038	5.84 mm +/- 0.051	5.72 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35 mm x 0.64 mm x 5.84 mm 18 units (360 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 20 View the product page first if you are unsure ->
6.35 mm	0.64 mm +/- 0.038	5.84 mm +/- 0.051	5.72 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35 mm x 0.64 mm x 5.84 mm 18 units (360 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35 mm x 0.64 mm x 5.84 mm Carbon Steel CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35 mm x 0.64 mm x 5.84 mm Carbon Steel Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 18 Available Now
7.00 mm	0.80 mm + 0.00 / - 0.06	6.70 mm + 0.00 / - 0.05	6.50 mm		0.90 mm
Material: Carbon Steel Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7 mm x 0.8 mm x 6.7 mm 9 units (450 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 50 View the product page first if you are unsure ->
7.00 mm	0.80 mm + 0.00 / - 0.06	6.70 mm + 0.00 / - 0.05	6.50 mm
Material: Carbon Steel Groove Width (W): 0.90 mm Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7 mm x 0.8 mm x 6.7 mm 9 units (450 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00700-C (50 Pcs) --- External Retaining Rings - 7 mm x 0.8 mm x 6.7 mm Carbon Steel CCE-00700-C (50 Pcs) --- External Retaining Rings - 7 mm x 0.8 mm x 6.7 mm Carbon Steel Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per 9 Available Now
7.01 mm	0.64 mm +/- 0.051	6.48 mm +/- 0.051	6.35 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-C (250 Pcs) External Retaining Rings - 7.01 mm x 0.64 mm x 6.48 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Thu, Apr 17, 2025 Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Per 250 View the product page first if you are unsure ->
7.01 mm	0.64 mm +/- 0.051	6.48 mm +/- 0.051	6.35 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-C (250 Pcs) External Retaining Rings - 7.01 mm x 0.64 mm x 6.48 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Thu, Apr 17, 2025 Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Per 250 View the product page first if you are unsure.
CCE-00701-C (250 Pcs) --- External Retaining Rings - 7.01 mm x 0.64 mm x 6.48 mm Carbon Steel CCE-00701-C (250 Pcs) --- External Retaining Rings - 7.01 mm x 0.64 mm x 6.48 mm Carbon Steel Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Out of stock! Backorder Now
7.14 mm	0.64 mm +/- 0.051	6.63 mm +/- 0.051	6.50 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-C (20 Pcs) External Retaining Rings - 7.14 mm x 0.64 mm x 6.63 mm 29 units (580 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 View the product page first if you are unsure ->
7.14 mm	0.64 mm +/- 0.051	6.63 mm +/- 0.051	6.50 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-C (20 Pcs) External Retaining Rings - 7.14 mm x 0.64 mm x 6.63 mm 29 units (580 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00714-C (20 Pcs) --- External Retaining Rings - 7.14 mm x 0.64 mm x 6.63 mm Carbon Steel CCE-00714-C (20 Pcs) --- External Retaining Rings - 7.14 mm x 0.64 mm x 6.63 mm Carbon Steel Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 29 Available Now
7.94 mm	0.64 mm +/- 0.051	7.37 mm +/- 0.051	7.14 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16624
Part Number: CCE-00794-C (20 Pcs) External Retaining Rings - 7.94 mm x 0.64 mm x 7.37 mm 31 units (620 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 View the product page first if you are unsure ->
7.94 mm	0.64 mm +/- 0.051	7.37 mm +/- 0.051	7.14 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16624
Part Number: CCE-00794-C (20 Pcs) External Retaining Rings - 7.94 mm x 0.64 mm x 7.37 mm 31 units (620 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00794-C (20 Pcs) --- External Retaining Rings - 7.94 mm x 0.64 mm x 7.37 mm Carbon Steel CCE-00794-C (20 Pcs) --- External Retaining Rings - 7.94 mm x 0.64 mm x 7.37 mm Carbon Steel Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 31 Available Now
8.00 mm	0.80 mm + 0.00 / - 0.06	7.60 mm + 0.00 / - 0.05	7.40 mm		0.90 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00800-C (50 Pcs) External Retaining Rings - 8 mm x 0.8 mm x 7.6 mm 27 units (1350 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 50 View the product page first if you are unsure ->
8.00 mm	0.80 mm + 0.00 / - 0.06	7.60 mm + 0.00 / - 0.05	7.40 mm
Material: Carbon Steel Groove Width (W): 0.90 mm Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00800-C (50 Pcs) External Retaining Rings - 8 mm x 0.8 mm x 7.6 mm 27 units (1350 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00800-C (50 Pcs) --- External Retaining Rings - 8 mm x 0.8 mm x 7.6 mm Carbon Steel CCE-00800-C (50 Pcs) --- External Retaining Rings - 8 mm x 0.8 mm x 7.6 mm Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 27 Available Now
8.74 mm	0.64 mm +/- 0.051	8.15 mm +/- 0.051	7.85 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-C (20 Pcs) External Retaining Rings - 8.74 mm x 0.64 mm x 8.15 mm 22 units (440 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 20 View the product page first if you are unsure ->
8.74 mm	0.64 mm +/- 0.051	8.15 mm +/- 0.051	7.85 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-C (20 Pcs) External Retaining Rings - 8.74 mm x 0.64 mm x 8.15 mm 22 units (440 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00874-C (20 Pcs) --- External Retaining Rings - 8.74 mm x 0.64 mm x 8.15 mm Carbon Steel CCE-00874-C (20 Pcs) --- External Retaining Rings - 8.74 mm x 0.64 mm x 8.15 mm Carbon Steel Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per 22 Available Now
8.99 mm	0.64 mm +/- 0.051	8.38 mm +/- 0.051	8.13 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00899-C (20 Pcs) External Retaining Rings - 8.99 mm x 0.64 mm x 8.38 mm 47 units (940 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20 View the product page first if you are unsure ->
8.99 mm	0.64 mm +/- 0.051	8.38 mm +/- 0.051	8.13 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00899-C (20 Pcs) External Retaining Rings - 8.99 mm x 0.64 mm x 8.38 mm 47 units (940 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00899-C (20 Pcs) --- External Retaining Rings - 8.99 mm x 0.64 mm x 8.38 mm Carbon Steel CCE-00899-C (20 Pcs) --- External Retaining Rings - 8.99 mm x 0.64 mm x 8.38 mm Carbon Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 47 Available Now

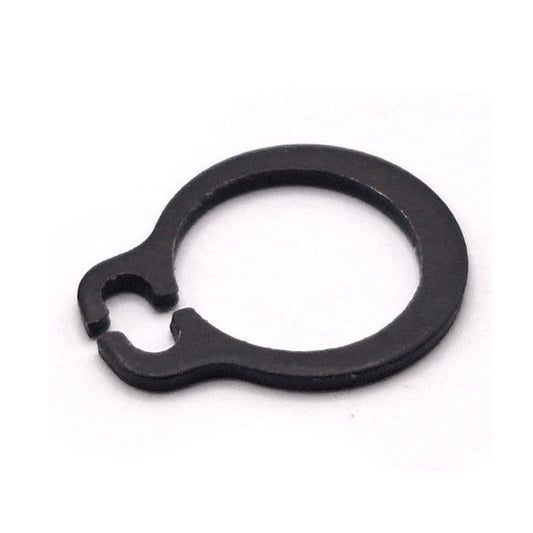

9.00 mm	1.00 mm + 0.00 / - 0.06	8.60 mm + 0.00 / - 0.06	8.40 mm		1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9 mm x 1 mm x 8.6 mm 2 units (100 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 50 View the product page first if you are unsure ->
9.00 mm	1.00 mm + 0.00 / - 0.06	8.60 mm + 0.00 / - 0.06	8.40 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9 mm x 1 mm x 8.6 mm 2 units (100 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00900-C (50 Pcs) --- External Retaining Rings - 9 mm x 1 mm x 8.6 mm Carbon Steel CCE-00900-C (50 Pcs) --- External Retaining Rings - 9 mm x 1 mm x 8.6 mm Carbon Steel Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 2 Available Now
9.53 mm	0.64 mm +/- 0.051	8.94 mm +/- 0.051	8.59 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53 mm x 0.64 mm x 8.94 mm 22 units (440 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20 View the product page first if you are unsure ->
9.53 mm	0.64 mm +/- 0.051	8.94 mm +/- 0.051	8.59 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53 mm x 0.64 mm x 8.94 mm 22 units (440 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00953-C (20 Pcs) --- External Retaining Rings - 9.53 mm x 0.64 mm x 8.94 mm Carbon Steel CCE-00953-C (20 Pcs) --- External Retaining Rings - 9.53 mm x 0.64 mm x 8.94 mm Carbon Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 22 Available Now
10.00 mm	1.00 mm + 0.00 / - 0.11	9.60 mm + 0.00 / - 0.06	9.30 mm		1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10 mm x 1 mm x 9.6 mm 78 units (3900 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50 View the product page first if you are unsure ->
10.00 mm	1.00 mm + 0.00 / - 0.11	9.60 mm + 0.00 / - 0.06	9.30 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10 mm x 1 mm x 9.6 mm 78 units (3900 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-01000-C (50 Pcs) --- External Retaining Rings - 10 mm x 1 mm x 9.6 mm Carbon Steel CCE-01000-C (50 Pcs) --- External Retaining Rings - 10 mm x 1 mm x 9.6 mm Carbon Steel Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 78 Available Now
10.01 mm	0.64 mm +/- 0.051	9.37 mm +/- 0.051	8.99 mm		0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01 mm x 0.64 mm x 9.37 mm 3 units (60 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure ->
10.01 mm	0.64 mm +/- 0.051	9.37 mm +/- 0.051	8.99 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01 mm x 0.64 mm x 9.37 mm 3 units (60 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01 mm x 0.64 mm x 9.37 mm Carbon Steel CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01 mm x 0.64 mm x 9.37 mm Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 3 Available Now
10.01 mm	0.89 mm + 0.025 / - 0.052	9.35 mm +/- 0.051	9.20 mm		1.00 mm
Material: Carbon Steel Standard: MIL-3217
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01 mm x 0.89 mm x 9.35 mm 39 units (390 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10 View the product page first if you are unsure ->
10.01 mm	0.89 mm + 0.025 / - 0.052	9.35 mm +/- 0.051	9.20 mm
Material: Carbon Steel Groove Width (W): 1.00 mm Standard: MIL-3217
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01 mm x 0.89 mm x 9.35 mm 39 units (390 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01 mm x 0.89 mm x 9.35 mm Carbon Steel CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01 mm x 0.89 mm x 9.35 mm Carbon Steel Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 39 Available Now
10.32 mm	0.64 mm +/- 0.051	9.70 mm +/- 0.051	9.30 mm		0.74 mm
Material: Carbon Steel Min. Extension (n): 0.99 Standard: MIL-16624
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32 mm x 0.64 mm x 9.7 mm 4 units (80 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure ->
10.32 mm	0.64 mm +/- 0.051	9.70 mm +/- 0.051	9.30 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Standard: MIL-16624
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32 mm x 0.64 mm x 9.7 mm 4 units (80 pcs) Available \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32 mm x 0.64 mm x 9.7 mm Carbon Steel CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32 mm x 0.64 mm x 9.7 mm Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 4 Available Now
