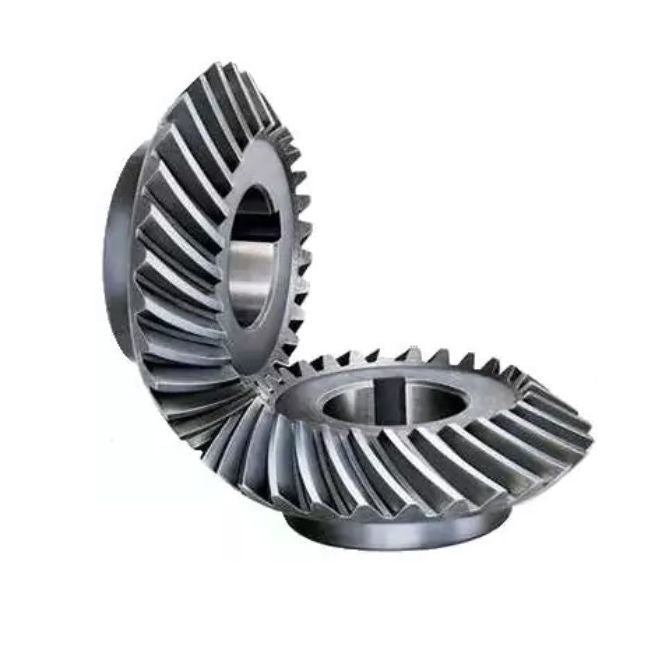

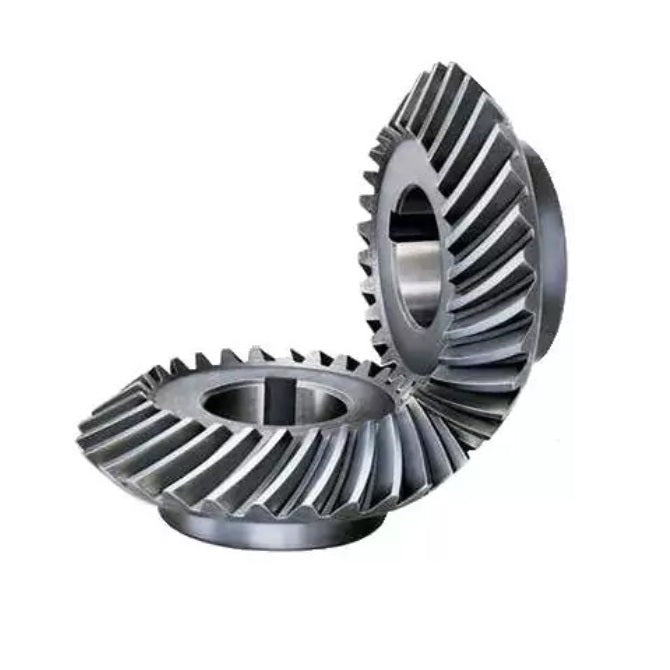

Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO CLASS 8 / Steel Gear

Name: 1131306 | GM-S030S-M15-120-C8-GK (Per Pair) --- Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO CLASS 8 / Steel Gear
Rating: 5.0 (1 reviews)

GM-S030S-M15-120-C8-GK (Per Pair)

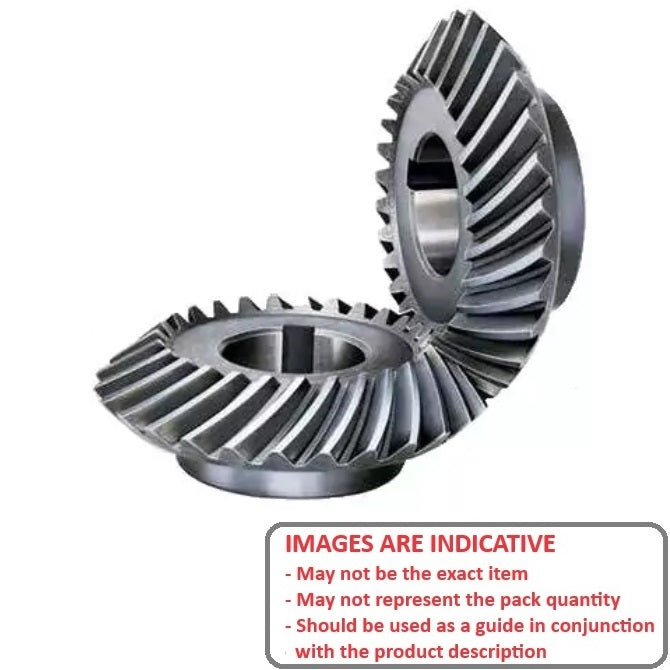

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Gears - Mitre - Module 1.5 - Spiral - Steel

Additional resources:
Bevel Gears

Price:

$90.00 AUD

~~$171.00 AUD~~ $90.00 AUD

Per Per Pair

Excludes GST and overseas Taxes & Duties

Qty: 1 available now

Product Details

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

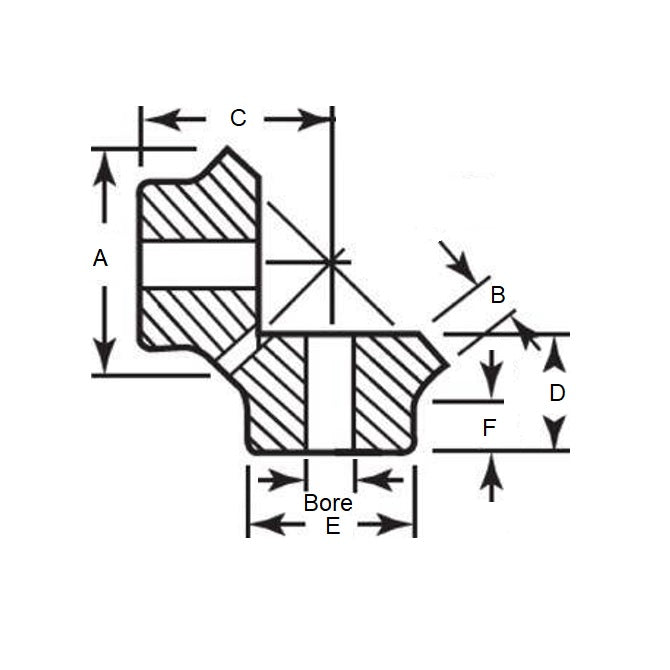

Number of Teeth: 20

ISO CLASS 8 / Steel

Number of Teeth: 20
Pitch Diameter (pd): 30mm
_{(30mm is 1.181 in.)}
Bore (d): 12.000mm
_{+0.015 / -0.000}
_{(12.000mm is 0.472 in.)}
Overall Length (L): 20.430mm
Direction: Right and Left HandMatch Opposite Direction
Hub Diameter (hd): 25.000 / With Set Screw and Keywaymm
Sold Per: Set of 2
Hub Projection (hp): 12.00mm
Mounting Distance (md): 30.000mm
Face Width (fw): 7.000mm
Outside Diameter: 31.870mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

A 1C44MYK15020S

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
GMS030SM15120C8GK, GMS030SM15

View full details
