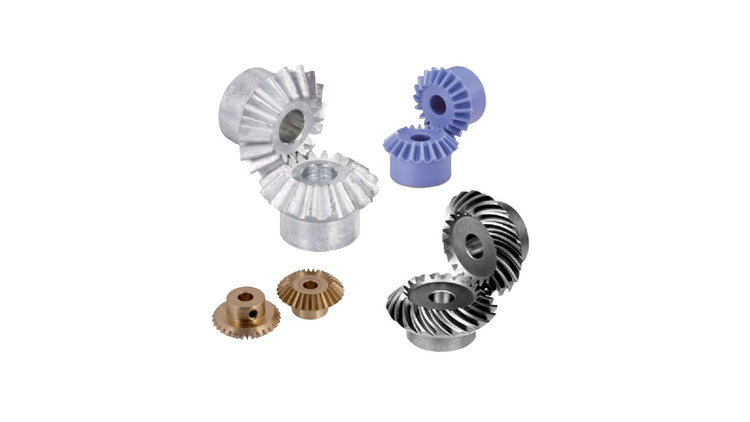

Gears - Mitre

10 Products in this selection
This is a combined category of Mitre Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Gears - Mitre
Additional resources:
Bevel Gears

A more comprehensive listing may be found on the MBA Minibearings main store at Gears - Mitre.
Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Sold Per Hub Diameter (hd) Indicative
12
6
mm 		2
mm 		5.3
mm 		6

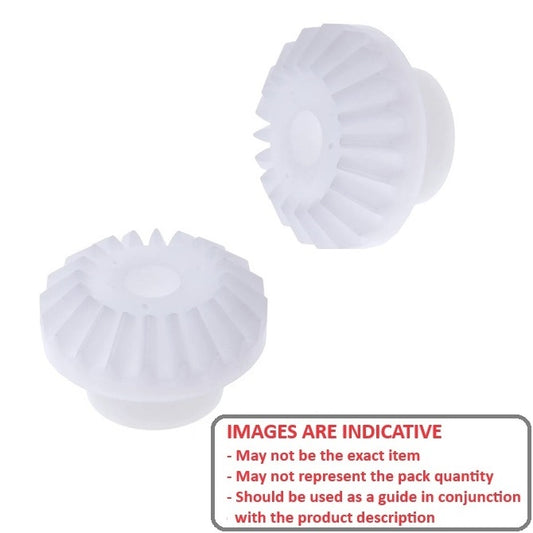

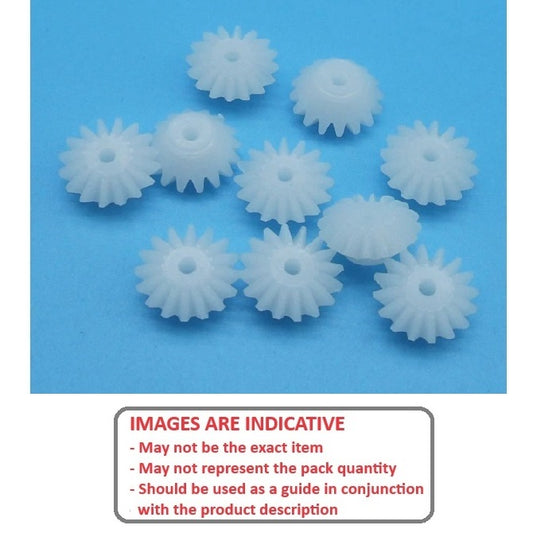

mm 		1097780 | GM-012-M05-020-PO (50 Pcs) --- Mitre Gears - 12 tooth - 6x2 mm - POM (Polyoxymethylene)
Material: POM (Polyoxymethylene)

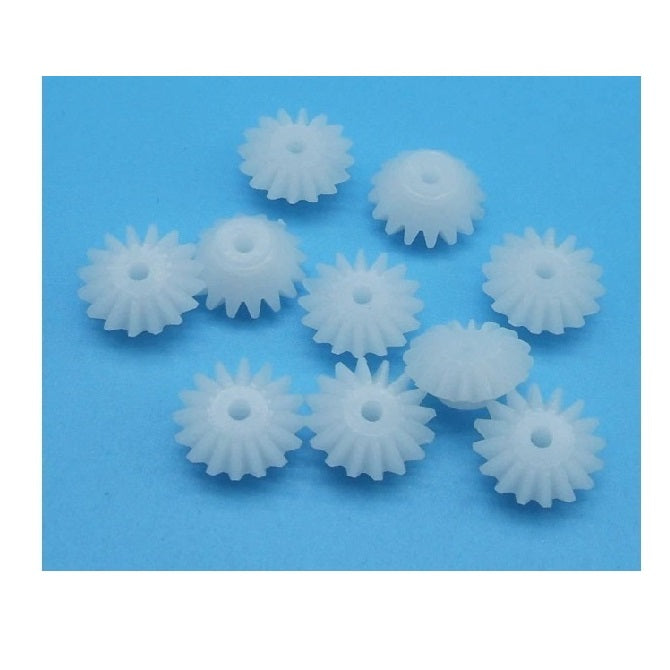

Category: Gears - Mitre - Module 0.5
Part Number: GM-012-M05-020-PO (50 Pcs) Mitre Gears - 12 tooth - 6x2 mm - POM (Polyoxymethylene)
6 units (300 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 50
Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Indicative
12
6
mm 		2
mm 		5.3
mm 		1097780 | GM-012-M05-020-PO (50 Pcs) --- Mitre Gears - 12 tooth - 6x2 mm - POM (Polyoxymethylene)
Material: POM (Polyoxymethylene)    Hub Diameter (hd): 6 mm
Category: Gears - Mitre - Module 0.5
Part Number: GM-012-M05-020-PO (50 Pcs) Mitre Gears - 12 tooth - 6x2 mm - POM (Polyoxymethylene)
6 units (300 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 50
16
8
mm 		2
mm 		5.3
mm 		6
mm 		1114052 | GM-016-M05-020-PO (15 Pcs) --- Mitre Gears - 16 tooth - 8x2 mm - POM (Polyoxymethylene)
Material: POM (Polyoxymethylene)
Category: Gears - Mitre - Module 0.5
Part Number: GM-016-M05-020-PO (15 Pcs) Mitre Gears - 16 tooth - 8x2 mm - POM (Polyoxymethylene)
1 pack (15 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 15
16
8
mm 		2
mm 		5.3
mm 		1114052 | GM-016-M05-020-PO (15 Pcs) --- Mitre Gears - 16 tooth - 8x2 mm - POM (Polyoxymethylene)
Material: POM (Polyoxymethylene)    Hub Diameter (hd): 6 mm
Category: Gears - Mitre - Module 0.5
Part Number: GM-016-M05-020-PO (15 Pcs) Mitre Gears - 16 tooth - 8x2 mm - POM (Polyoxymethylene)
1 pack (15 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 15
16
16.000
mm 		6.000
mm 		13.100
mm 		12.000 / No Set Screw

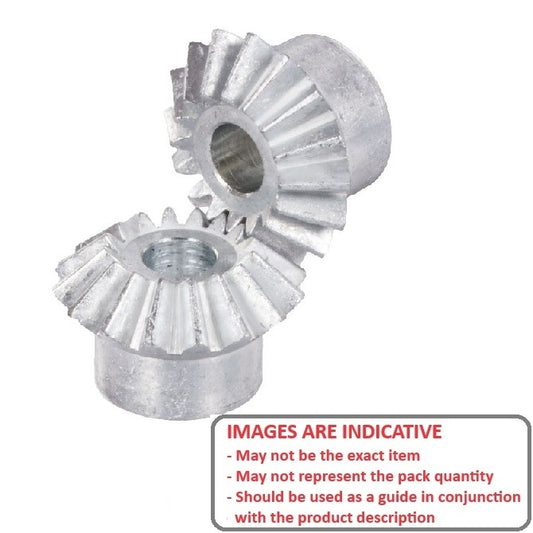

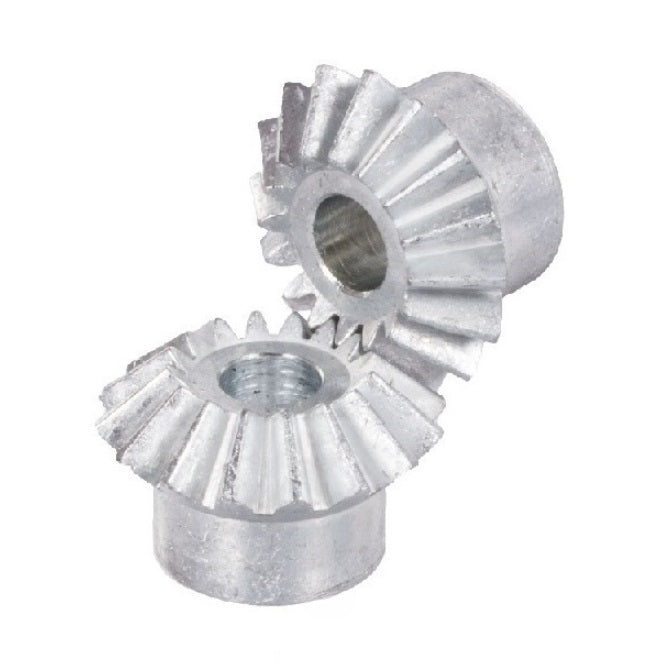

mm 		1114426 | GM-016-M1-060-ZD (2 Pcs) --- Mitre Gears - 16 tooth - 16x6 mm - Die Cast Zinc - Commercial
Material: Die Cast Zinc - Commercial    Hub Projection (F): 7.50 mm
Category: Gears - Mitre - Module 1
Part Number: GM-016-M1-060-ZD (2 Pcs) Mitre Gears - 16 tooth - 16x6 mm - Die Cast Zinc - Commercial
20 units (40 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 2
16
16.000
mm 		6.000
mm 		13.100
mm 		1114426 | GM-016-M1-060-ZD (2 Pcs) --- Mitre Gears - 16 tooth - 16x6 mm - Die Cast Zinc - Commercial
Material: Die Cast Zinc - Commercial    Hub Diameter (hd): 12.000 / No Set Screw mm    Hub Projection (F): 7.50 mm
Category: Gears - Mitre - Module 1
Part Number: GM-016-M1-060-ZD (2 Pcs) Mitre Gears - 16 tooth - 16x6 mm - Die Cast Zinc - Commercial
20 units (40 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 2
20
20.000
mm 		6.000
mm 		14.000
mm 		16.000 / No Set Screw

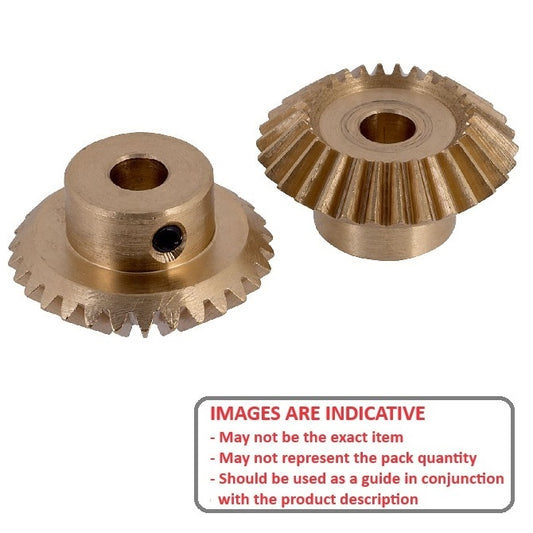

mm 		1124062 | GM-020-M1-060-B --- Mitre Gears - 20 tooth - 20x6 mm - ISO 8 / Brass
Material: ISO 8 / Brass    Hub Projection (F): 8.50 mm
Category: Gears - Mitre - Module 1
Part Number: GM-020-M1-060-B Mitre Gears - 20 tooth - 20x6 mm - ISO 8 / Brass
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
20
20.000
mm 		6.000
mm 		14.000
mm 		1124062 | GM-020-M1-060-B --- Mitre Gears - 20 tooth - 20x6 mm - ISO 8 / Brass
Material: ISO 8 / Brass    Hub Diameter (hd): 16.000 / No Set Screw mm    Hub Projection (F): 8.50 mm
Category: Gears - Mitre - Module 1
Part Number: GM-020-M1-060-B Mitre Gears - 20 tooth - 20x6 mm - ISO 8 / Brass
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
20
30
mm 		10.000 (+0.015 / -0.000)
mm 		18.430
mm 		Right and Left Hand
24.000 / No set screw

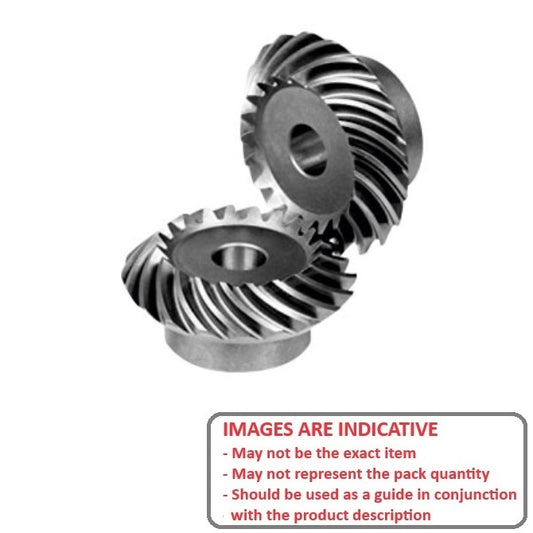

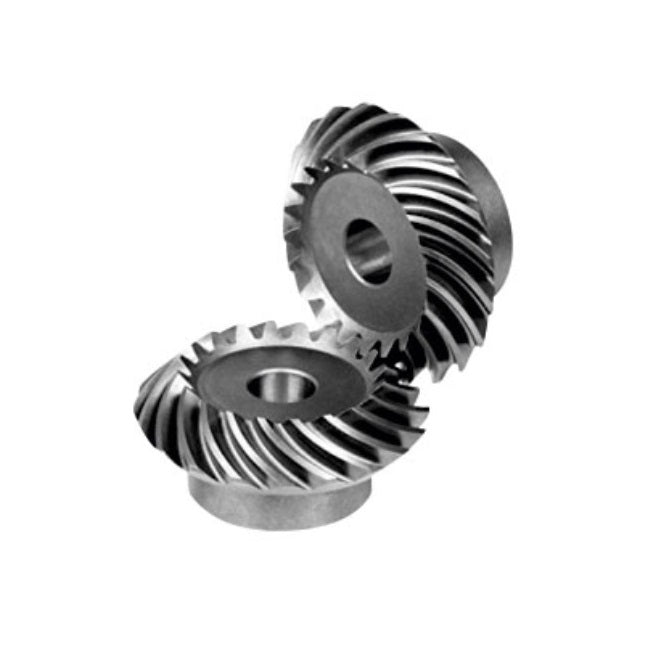

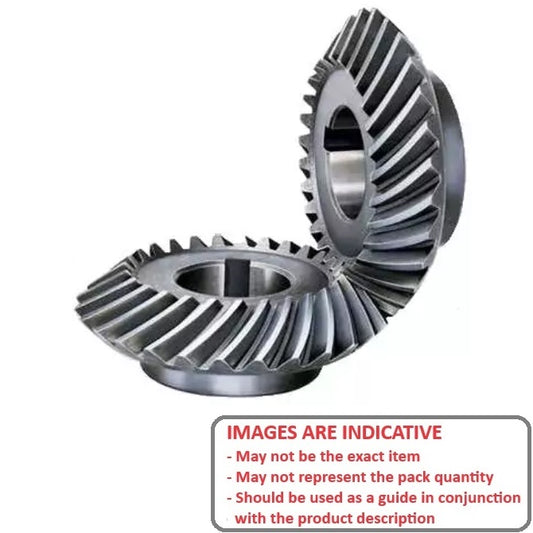

mm 		1124775 | GM-S030S-M15-100-C8-N-B (Pair) --- Mitre Gears - 20 tooth - 30 - 10.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Hub Projection (F): 10.00 mm
Category: Gears - Mitre - Module 1.5
Part Number: GM-S030S-M15-100-C8-N-B (Pair) Mitre Gears - 20 tooth - 30 - 10.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Per Pair
20
30
mm 		10.000 (+0.015 / -0.000)
mm 		18.430
mm 		1124775 | GM-S030S-M15-100-C8-N-B (Pair) --- Mitre Gears - 20 tooth - 30 - 10.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Sold Per: Right and Left Hand    Hub Diameter (hd): 24.000 / No set screw mm    Hub Projection (F): 10.00 mm
Category: Gears - Mitre - Module 1.5
Part Number: GM-S030S-M15-100-C8-N-B (Pair) Mitre Gears - 20 tooth - 30 - 10.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Per Pair
20
30
mm 		12.000 (+0.015 / -0.000)
mm 		20.430
mm 		Right and Left Hand
25.000 / With Set Screw and Keyway
mm 		1124786 | GM-S030S-M15-120-C8-GK (Pair) --- Mitre Gears - 20 tooth - 30 - 12.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Hub Projection (F): 12.00 mm
Category: Gears - Mitre - Module 1.5
Part Number: GM-S030S-M15-120-C8-GK (Pair) Mitre Gears - 20 tooth - 30 - 12.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$90.00 AUD
$171.00 AUD $90.00 AUD
Per Pair
20
30
mm 		12.000 (+0.015 / -0.000)
mm 		20.430
mm 		1124786 | GM-S030S-M15-120-C8-GK (Pair) --- Mitre Gears - 20 tooth - 30 - 12.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Sold Per: Right and Left Hand    Hub Diameter (hd): 25.000 / With Set Screw and Keyway mm    Hub Projection (F): 12.00 mm
Category: Gears - Mitre - Module 1.5
Part Number: GM-S030S-M15-120-C8-GK (Pair) Mitre Gears - 20 tooth - 30 - 12.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$90.00 AUD
$171.00 AUD $90.00 AUD
Per Pair
20
30.000
mm 		12.000
mm 		15.500
mm 		18.000 / No Set Screw
mm 		1124790 | GM-030-M15-120-B --- Mitre Gears - 20 tooth - 30x12 mm - ISO 8 / Brass
Material: ISO 8 / Brass    Hub Projection (F): 7.00 mm
Category: Gears - Mitre - Module 1.5
Part Number: GM-030-M15-120-B Mitre Gears - 20 tooth - 30x12 mm - ISO 8 / Brass
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
20
30.000
mm 		12.000
mm 		15.500
mm 		1124790 | GM-030-M15-120-B --- Mitre Gears - 20 tooth - 30x12 mm - ISO 8 / Brass
Material: ISO 8 / Brass    Hub Diameter (hd): 18.000 / No Set Screw mm    Hub Projection (F): 7.00 mm
Category: Gears - Mitre - Module 1.5
Part Number: GM-030-M15-120-B Mitre Gears - 20 tooth - 30x12 mm - ISO 8 / Brass
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
24
25.400
mm 		6.350
mm 		14.275
mm 		15.875 / No Set Screw

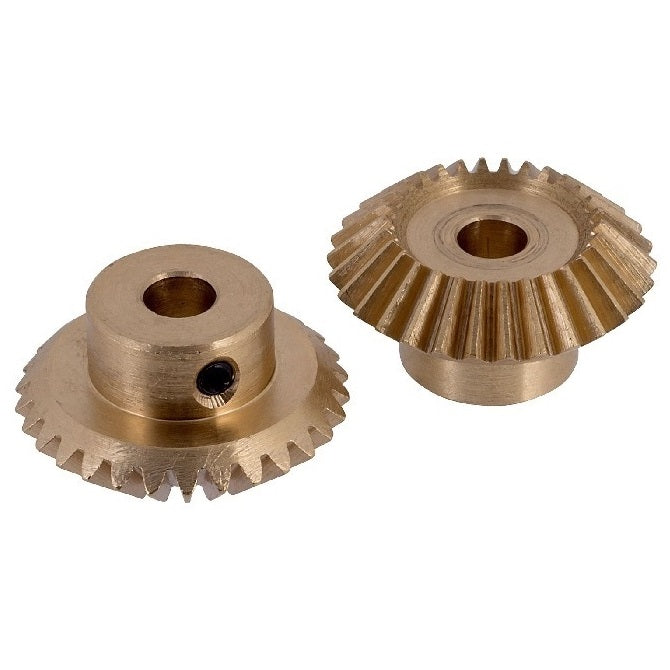

mm 		1131174 | GM-025-D24-064-B --- Mitre Gears - 24 tooth - 25.4x6.35 mm - Brass - Commercial
Material: Brass - Commercial    Hub Projection (F): 7.14 mm
Category: Gears - Mitre - 24 DP Brass
Part Number: GM-025-D24-064-B Mitre Gears - 24 tooth - 25.4x6.35 mm - Brass - Commercial
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
24
25.400
mm 		6.350
mm 		14.275
mm 		1131174 | GM-025-D24-064-B --- Mitre Gears - 24 tooth - 25.4x6.35 mm - Brass - Commercial
Material: Brass - Commercial    Hub Diameter (hd): 15.875 / No Set Screw mm    Hub Projection (F): 7.14 mm
Category: Gears - Mitre - 24 DP Brass
Part Number: GM-025-D24-064-B Mitre Gears - 24 tooth - 25.4x6.35 mm - Brass - Commercial
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
30
30.000
mm 		6.000
mm 		15.300
mm 		12.000 / No Set Screw
mm 		1141461 | GM-030-M1-060-A (5 Pcs) --- Mitre Gears - 30 tooth - 30x6 mm - Acetal - Commercial
Material: Acetal - Commercial    Hub Projection (F): 7.50 mm
Category: Gears - Mitre - Module 1
Part Number: GM-030-M1-060-A (5 Pcs) Mitre Gears - 30 tooth - 30x6 mm - Acetal - Commercial
1 pack (5 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 5
30
30.000
mm 		6.000
mm 		15.300
mm 		1141461 | GM-030-M1-060-A (5 Pcs) --- Mitre Gears - 30 tooth - 30x6 mm - Acetal - Commercial
Material: Acetal - Commercial    Hub Diameter (hd): 12.000 / No Set Screw mm    Hub Projection (F): 7.50 mm
Category: Gears - Mitre - Module 1
Part Number: GM-030-M1-060-A (5 Pcs) Mitre Gears - 30 tooth - 30x6 mm - Acetal - Commercial
1 pack (5 pcs) Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 5
36
38.100
mm 		7.938
mm 		15.479
mm 		17.463 / No Set Screw

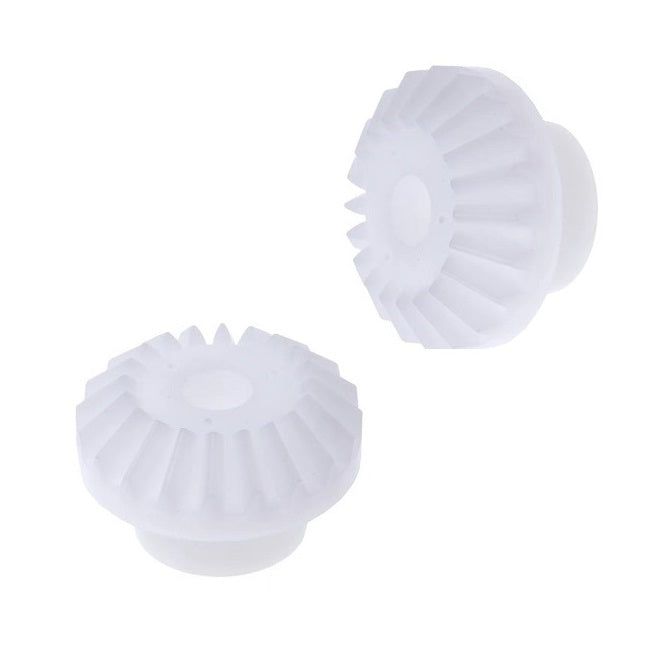

mm 		1149582 | GM-S038-D24-079-N (Pair) --- Mitre Gears - 36 tooth - 38.1x7.938 mm - Nylon - Commercial
Material: Nylon - Commercial    Hub Projection (F): 7.94 mm
Category: Gears - Mitre - 24 DP Plastic
Part Number: GM-S038-D24-079-N (Pair) Mitre Gears - 36 tooth - 38.1x7.938 mm - Nylon - Commercial
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Per Pair
36
38.100
mm 		7.938
mm 		15.479
mm 		1149582 | GM-S038-D24-079-N (Pair) --- Mitre Gears - 36 tooth - 38.1x7.938 mm - Nylon - Commercial
Material: Nylon - Commercial    Hub Diameter (hd): 17.463 / No Set Screw mm    Hub Projection (F): 7.94 mm
Category: Gears - Mitre - 24 DP Plastic
Part Number: GM-S038-D24-079-N (Pair) Mitre Gears - 36 tooth - 38.1x7.938 mm - Nylon - Commercial
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Per Pair
