Collection: Gears - Mitre - Module 1.5
Gears -> Mitre -> Module 1.5There are 3 products in the sub-categories of Gears - Mitre - Module 1.5. Browse the Gears - Mitre - Module 1.5 products table. To narrow down the selection, please choose a sub-category from the links below.
Gears - Mitre - Module 1.5 - Brass
A selection of Brass Module 1.5 Mitre Gears. 1:1 Ratio. 20 Degree...
Gears - Mitre - Module 1.5 - Spiral
This category includes various types of mitre gears.An expanded range may be...
Category Details
This category includes various types of mitre gears.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Gears - Mitre - Module 1.5 category on the MBA Minibearings main store.
| Number of Teeth | Pitch Diameter (pd) | Bore (d) | Overall Length (L) | Sold Per | Hub Diameter (hd) |
Indicative Image |
|---|---|---|---|---|---|---|

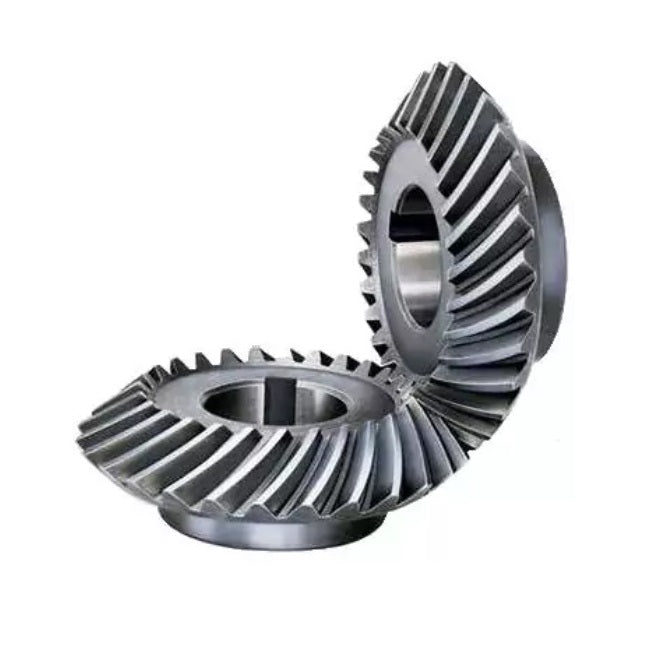

| Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO CLASS 8 / Steel Gear | ||||||
|
Number of Teeth
20
|
Pitch Diameter (pd)
30
mm (Equiv. 1.181 in.) |
Bore (d)
12.000
mm +0.015 / -0.000 (Equiv. 0.472 in.) |
Overall Length (L)
20.430
mm |
Sold Per
Right and Left Hand
|
Hub Diameter (hd)
25.000 / With Set Screw and Keyway
mm |
|
|
Material: ISO CLASS 8 / Steel
Hub Projection (F): 12.00 mm
Category: Gears - Mitre - Module 1.5 - Spiral Deleted Item. Available while stocks last. Deleted Item. Available while stocks last. |
||||||
|
Part Number: GM-S030S-M15-120-C8-GK (Pair)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$90.00 AUD
Regular price
Unit price
per
Per Pair
Excludes GST and overseas Taxes & Duties |
||||||
| Number of Teeth | Pitch Diameter (pd) | Bore (d) | Overall Length (L) |
Indicative Image |
||
| Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO CLASS 8 / Steel Gear | ||||||
|
Number of Teeth
20
|
Pitch Diameter (pd)
30
mm (Equiv. 1.181 in.) |
Bore (d)
12.000
mm +0.015 / -0.000 (Equiv. 0.472 in.) |
Overall Length (L)
20.430
mm |
|
||
|
Material: ISO CLASS 8 / Steel
Sold Per: Right and Left Hand
Hub Diameter (hd): 25.000 / With Set Screw and Keyway mm
Hub Projection (F): 12.00 mm
Category: Gears - Mitre - Module 1.5 - Spiral Deleted Item. Available while stocks last. Deleted Item. Available while stocks last. |
||||||
|
Part Number: GM-S030S-M15-120-C8-GK (Pair)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$90.00 AUD
Regular price
Unit price
per
Per Pair
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Mitre Gears - 20 tooth - 30x10 mm Module 1.5 - ISO CLASS 8 / Steel Gear | ||||||
|
Number of Teeth
20
|
Pitch Diameter (pd)
30
mm (Equiv. 1.181 in.) |
Bore (d)
10.000
mm +0.015 / -0.000 (Equiv. 0.394 in.) |
Overall Length (L)
18.430
mm |
Sold Per
Right and Left Hand
|
Hub Diameter (hd)
24.000 / No set screw
mm |
|
|
Material: ISO CLASS 8 / Steel
Hub Projection (F): 10.00 mm
Category: Gears - Mitre - Module 1.5 - Spiral Deleted Item. Available while stocks last. |
||||||
|
Part Number: GM-S030S-M15-100-C8-N-B (Pair)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$60.00 AUD
Regular price
Unit price
per
Per Pair
Excludes GST and overseas Taxes & Duties |
||||||
| Mitre Gears - 20 tooth - 30x10 mm Module 1.5 - ISO CLASS 8 / Steel Gear | ||||||
|
Number of Teeth
20
|
Pitch Diameter (pd)
30
mm (Equiv. 1.181 in.) |
Bore (d)
10.000
mm +0.015 / -0.000 (Equiv. 0.394 in.) |
Overall Length (L)
18.430
mm |
|
||
|
Material: ISO CLASS 8 / Steel
Sold Per: Right and Left Hand
Hub Diameter (hd): 24.000 / No set screw mm
Hub Projection (F): 10.00 mm
Category: Gears - Mitre - Module 1.5 - Spiral Deleted Item. Available while stocks last. |
||||||
|
Part Number: GM-S030S-M15-100-C8-N-B (Pair)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$60.00 AUD
Regular price
Unit price
per
Per Pair
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

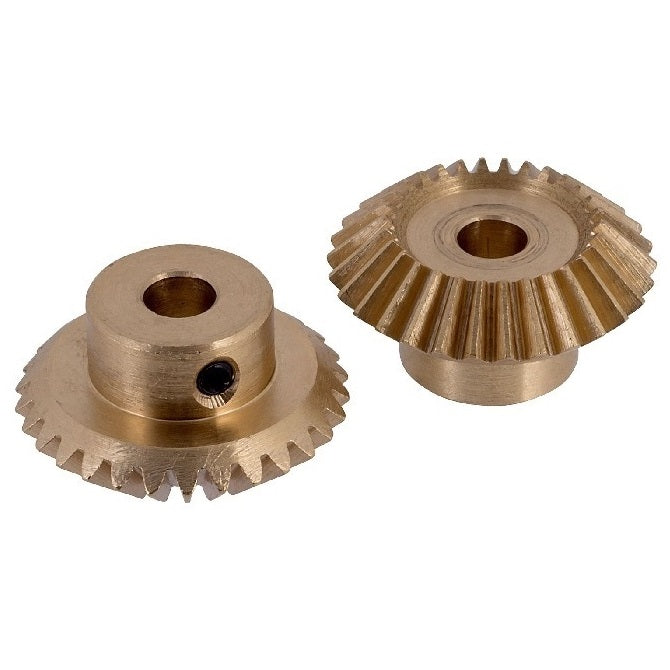

| Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO 8 / Brass Gear | ||||||
|
Number of Teeth
20
|
Pitch Diameter (pd)
30.000
mm (Equiv. 1.181 in.) |
Bore (d)
12.000
mm (Equiv. 0.472 in.) |
Overall Length (L)
15.500
mm |
Hub Diameter (hd)
18.000 / No Set Screw
mm |
|
|
|
Material: ISO 8 / Brass
Hub Projection (F): 7.00 mm
Category: Gears - Mitre - Module 1.5 - Brass Deleted Item. Available while stocks last. |
||||||
|
Part Number: GM-030-M15-120-B (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$30.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO 8 / Brass Gear | ||||||
|
Number of Teeth
20
|
Pitch Diameter (pd)
30.000
mm (Equiv. 1.181 in.) |
Bore (d)
12.000
mm (Equiv. 0.472 in.) |
Overall Length (L)
15.500
mm |
|
||
|
Material: ISO 8 / Brass
Hub Diameter (hd): 18.000 / No Set Screw mm
Hub Projection (F): 7.00 mm
Category: Gears - Mitre - Module 1.5 - Brass Deleted Item. Available while stocks last. |
||||||
|
Part Number: GM-030-M15-120-B (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$30.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
