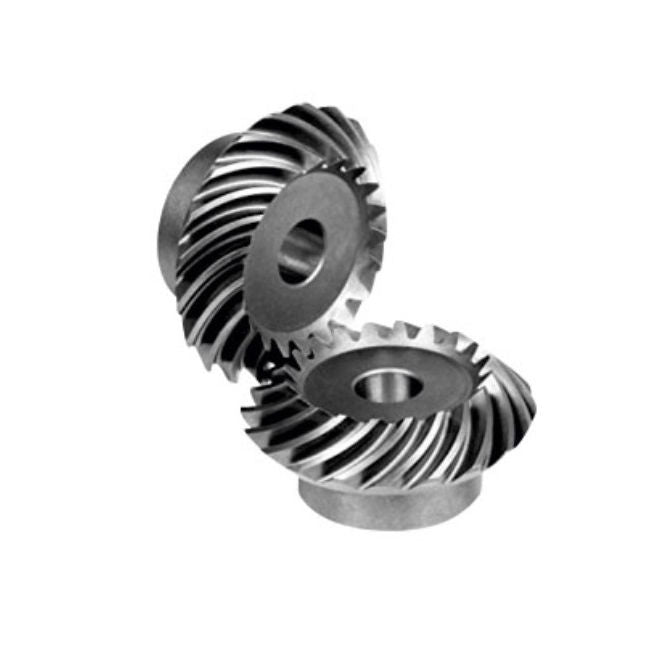

Mitre Gears - 20 tooth - 30x10 mm Module 1.5 - ISO CLASS 8 / Steel Gear

Name: 1131295 | GM-S030S-M15-100-C8-N-B (Per Pair) --- Mitre Gears - 20 tooth - 30x10 mm Module 1.5 - ISO CLASS 8 / Steel Gear
Rating: 5.0 (1 reviews)

GM-S030S-M15-100-C8-N-B (Per Pair)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Gears - Mitre - Module 1.5 - Spiral - Steel

Additional resources:
Bevel Gears

Price:

$60.00 AUD

~~$114.00 AUD~~ $60.00 AUD

Per Per Pair

Excludes GST and overseas Taxes & Duties

Qty: 1 available now

Product Details

Deleted Item. Available while stocks last.

Number of Teeth: 20

ISO CLASS 8 / Steel

Number of Teeth: 20

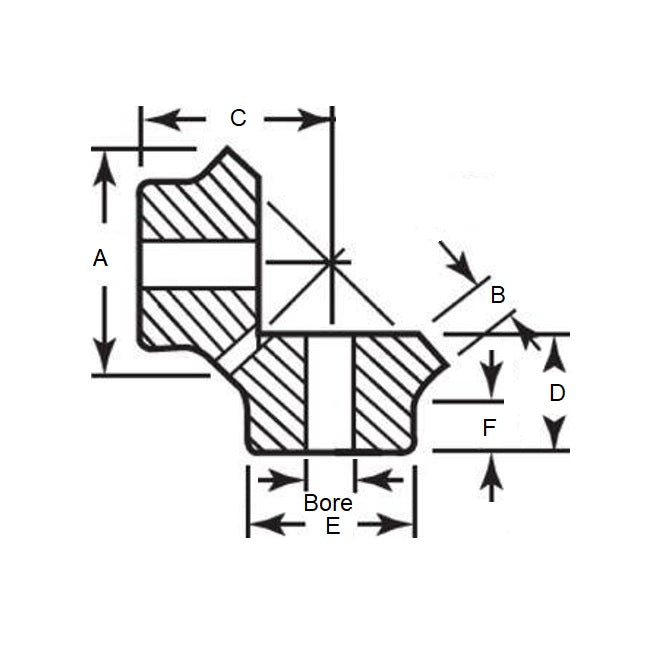

Pitch Diameter (pd): 30mm
_{(30mm is 1.181 in.)}
Bore (d): 10.000mm
_{+0.015 / -0.000}
_{(10.000mm is 0.394 in.)}
Overall Length (L): 18.430mm
Direction: Right and Left HandMatch Opposite Direction
Hub Diameter (hd): 24.000 / No set screwmm
Sold Per: Set of 2
Hub Projection (hp): 10.00mm
Mounting Distance (md): 28.000mm
Face Width (fw): 7.000mm
Outside Diameter: 31.870mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

A 1C 4MYK15020SR
A1C4MYK15020SR

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
GMS030SM15100C8NB, GMS030SM15

View full details
