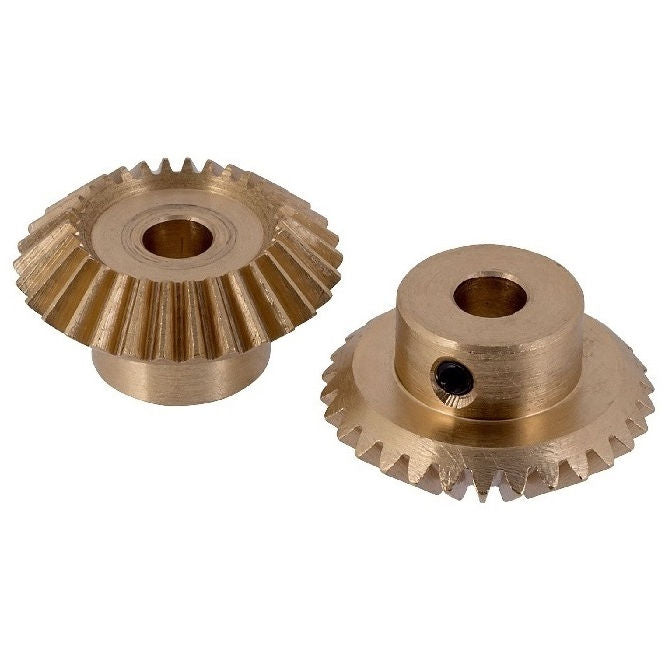

Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO 8 / Brass Gear

GM-030-M15-120-B (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

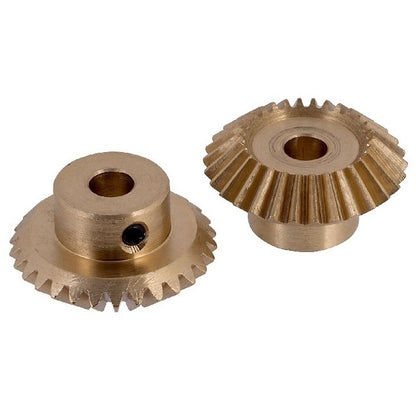

  • Mitre Gears - 20 tooth - 30x12 mm - ISO 8 / Brass
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Bevel Gears
Price:
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

20 tooth - 30x12 mm Mitre Gears - ISO 8 / Brass - Sold Per Each:

Base Category: Gears - Mitre

Top Level Category: Gears - Mitre - Module 1.5 - Brass

Product Details


Deleted Item. Available while stocks last.

Number of Teeth: 20

ISO 8 / Brass

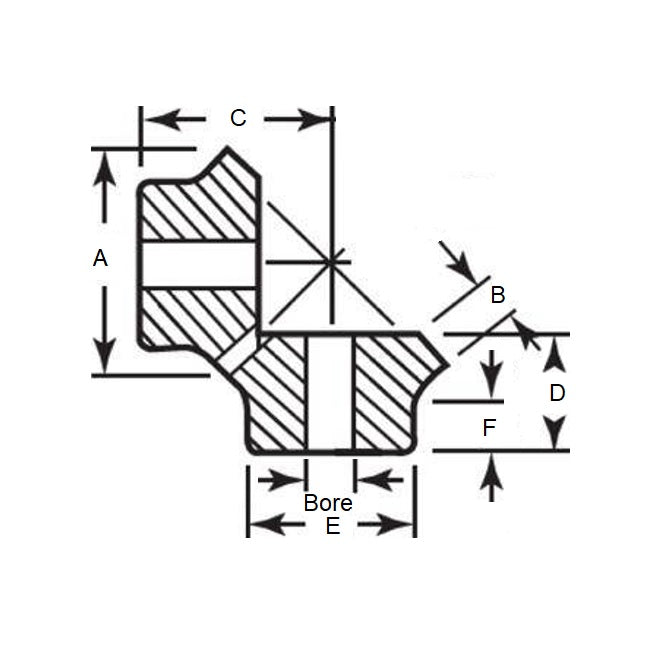

  • Number of Teeth: 20
  • Pitch Diameter (pd): 30.000mm
    (30.000mm is 1.181 in.)
  • Bore (d): 12.000mm
    (12.000mm is 0.472 in.)
  • Overall Length (L): 15.500mm
  • Hub Diameter (hd): 18.000 / No Set Screwmm
  • Each
  • Hub Projection (F): 7.00mm
  • Mounting Distance (C): 25.000mm
  • Face Width (B): 7.000mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • A 1B 4MY15020
  • A1B4MY15020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
GM030M15120B, GM030M15
View full details
