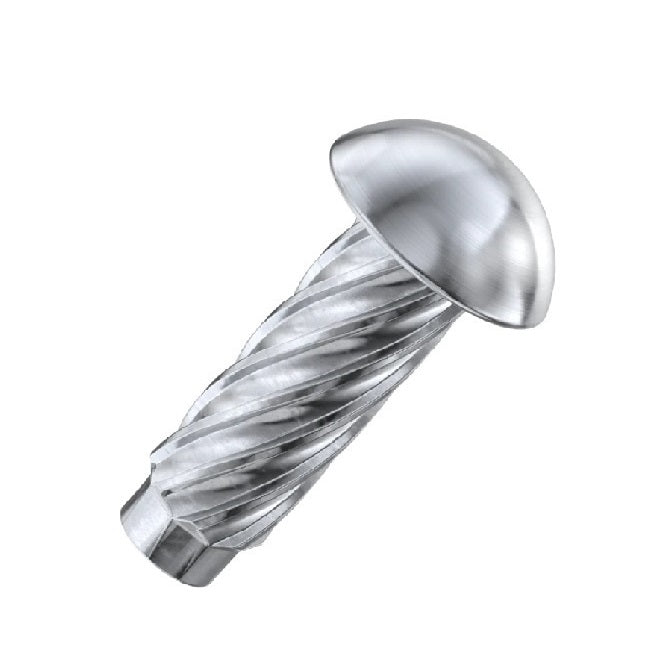

Hammer Drive Pins - 2.44x7.9x2.64 mm Round Head Stainless Steel - Stainless Steel Pin

HDP024-08R-S4 (Pack of 10)

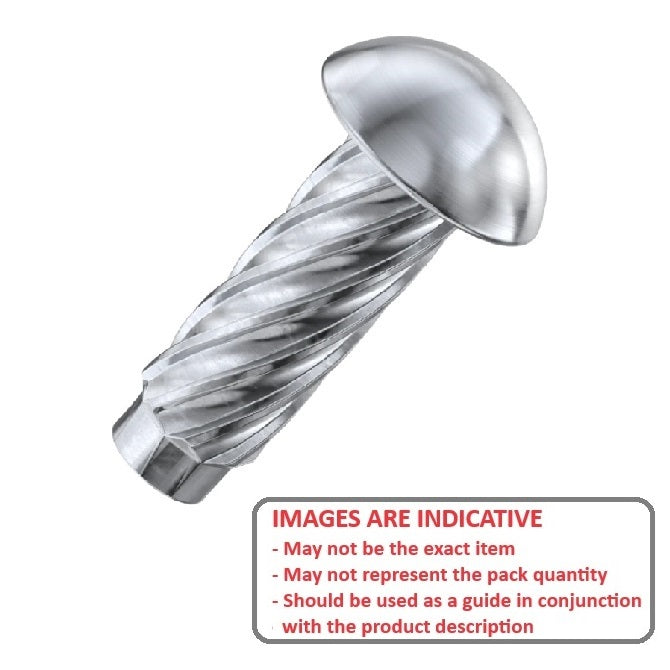

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Hammer Drive Pins - 2.44x7.9x2.64 mm - Stainless Steel
1 4

NoCor

Store Name: Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Price:
$2.14 AUD
$10.51 AUD $2.14 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
 Qty: 147 packs (1470 pcs) available now

Order 50 or more packs of 10 (500 pcs)
for $1.93 AUD per 10 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 06, 2026

2.44x7.9x2.64 mm Hammer Drive Pins - Stainless Steel - Sold Per 10:

Base Category: Pins - Hammer Drive

Top Level Category: Pins - Hammer Drive - Round Head Stainless Steel

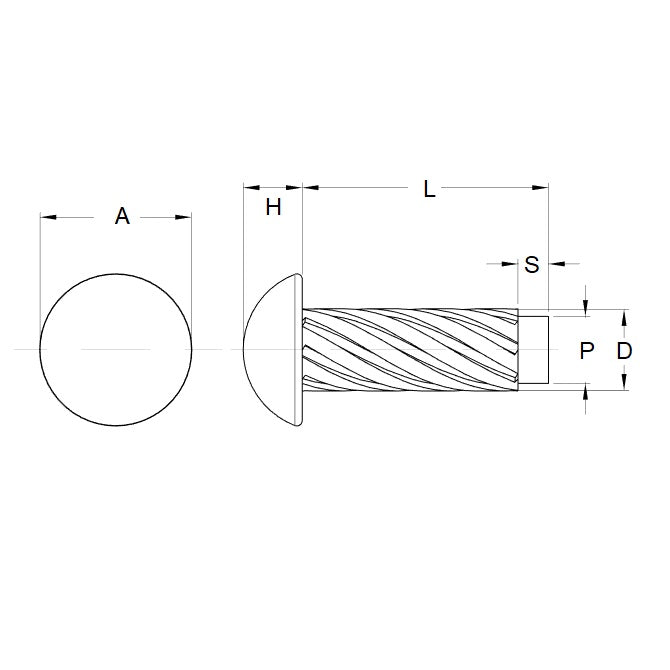

Product Details

Min Hole Diameter: 2.44mm
(2.44mm is 0.096 in.)

Stainless Steel
  • Min Hole Diameter: 2.44mm
    (2.44mm is 0.096 in.)
  • Approx. Length (l): 7.9mm
    (7.9mm is 0.311 in.)
  • Max Hole Dia.: 2.64mm
    (2.64mm is 0.104 in.)
  • Approx Pin Diameter (d1): 2.95mm
  • Max Head Diameter (d2): 5.36mm
  • Max Head Thickness (h): 2.18mm
  • Nom. Pilot Length: 1.2mm

Brand: NoCor
Country of Origin: TW

Product Compliance and Data

Similar to

  • ALTPART
  • 91654A078

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
HDP02408RS4, HDP02408R
