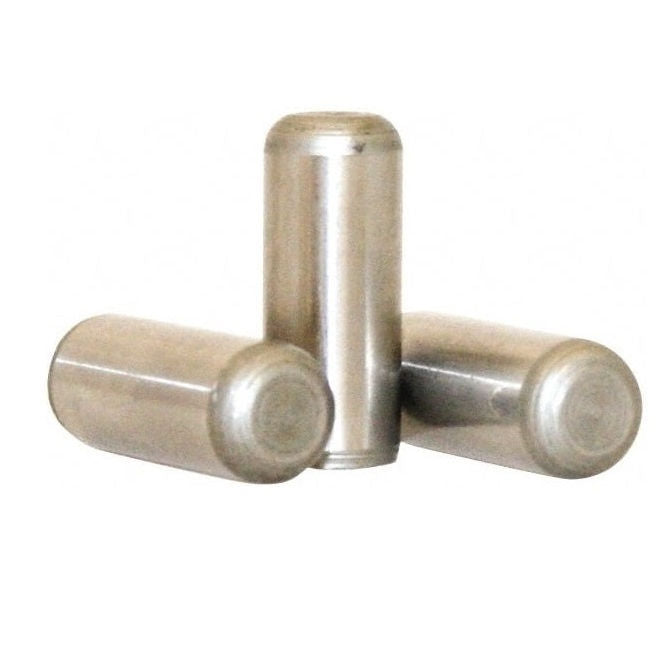

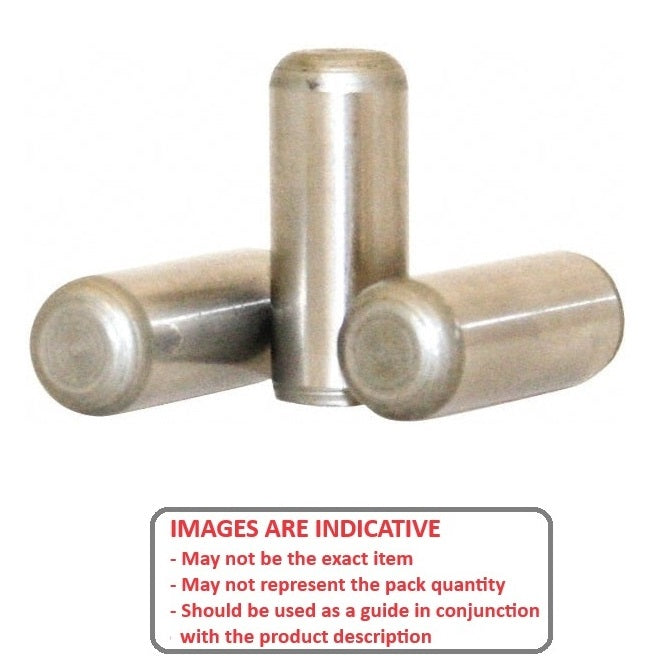

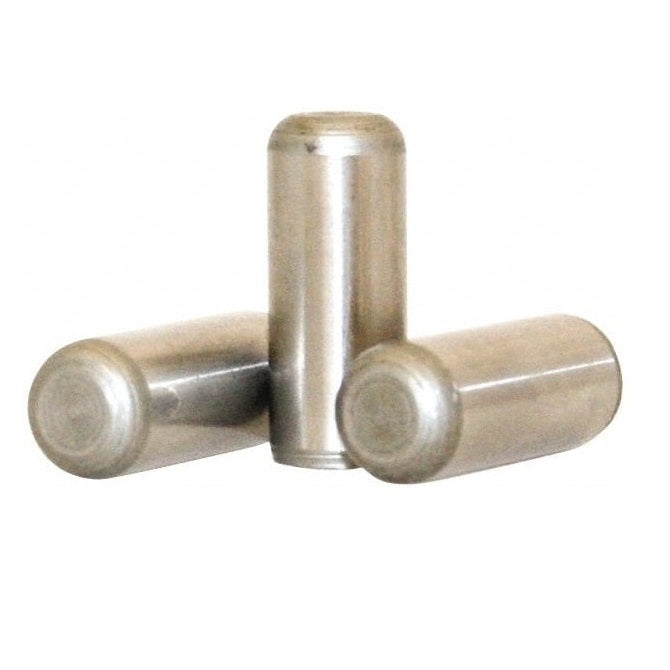

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

DP024-010-303-1 (50 Pcs)
Dowel Pins - 2.381x9.53x9.53mm

DP024-010-303-1 (50 Pcs)
Dowel Pins - 2.381x9.53x9.53mm

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$6.00 AUD
$11.40 AUD $6.00 AUD
per 50
Qty: 18 available now (900 pcs)
Only 18 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 2.381mm
+ 0.002 / + 0.008

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Length (L): 9.53mm
    +/- 0.254
  • Approx. Overall Length: 9.53mm
    +/ - 0.254

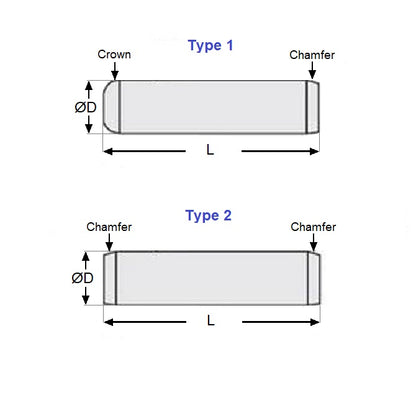

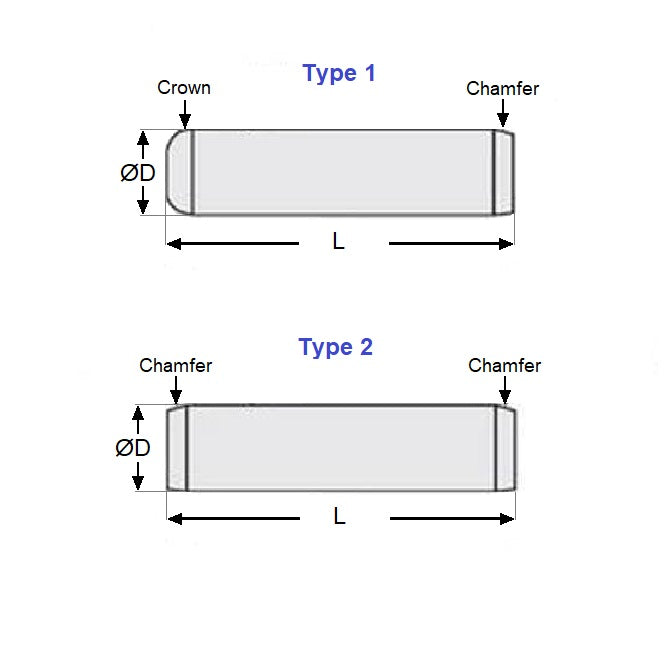

  • Type: 1 (Chamfer One End)
  • Chamfer: 0.40 x 15 Deg
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: TW

Alternative Parts Include: DOWS3-094-0375, A9X31-0312, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
