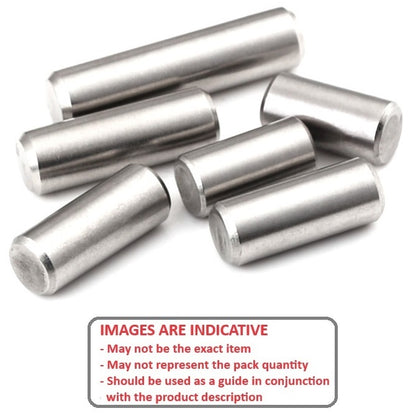

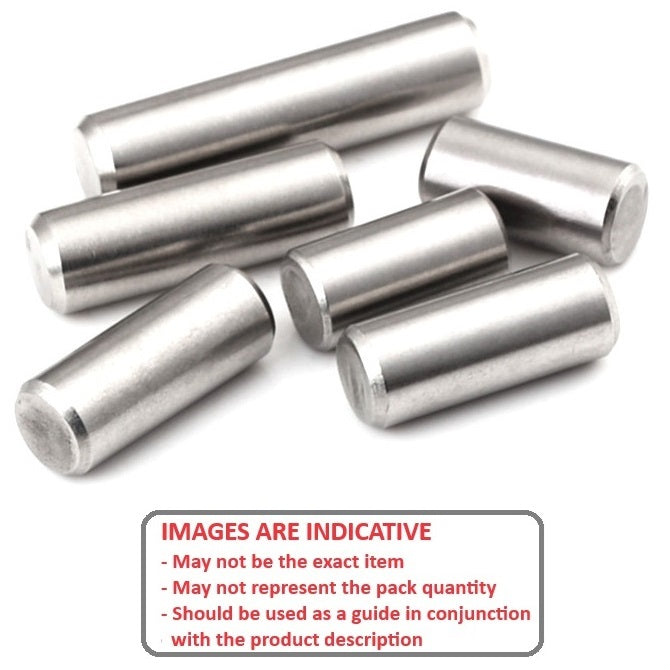

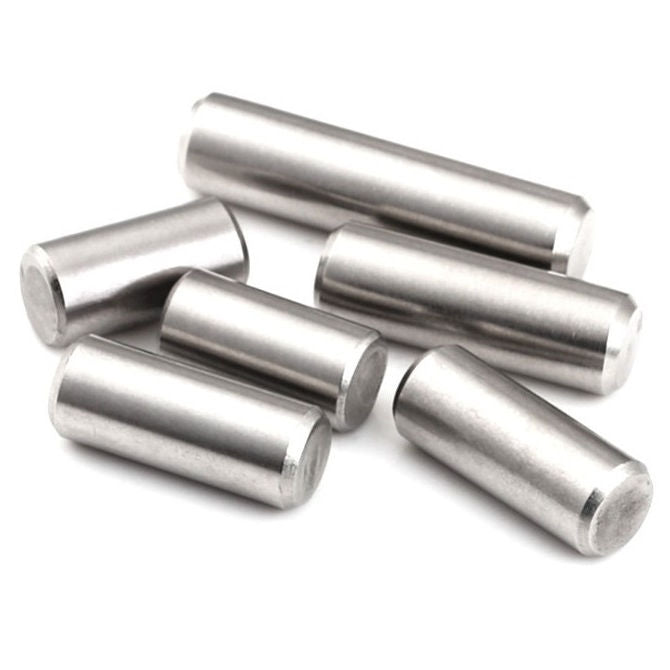

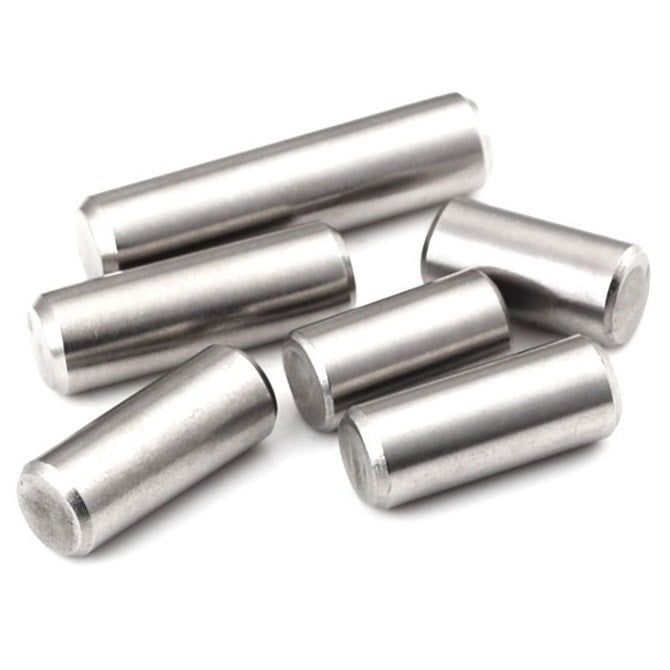

Dowel Pins - 1x6x6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

DP010-006-303-2 (100 Pcs)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$4.00 AUD
$7.60 AUD $4.00 AUD
per 100
Qty: 77 available now (7700 pcs)
Order 50 or more (5000 pcs) for $3.60 AUD per 100
Only 77 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 1.000mm
+ 0.002 / + 0.008

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Length (L): 6.00mm
    +/- 0.254
  • Approx. Overall Length: 6.00mm
    +/- 0.254

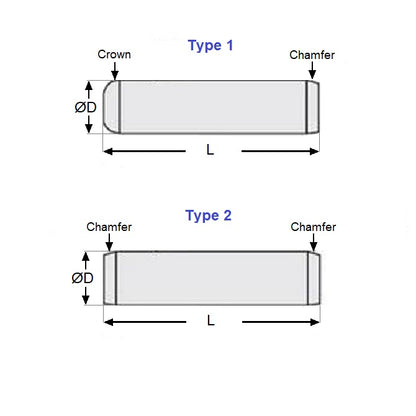

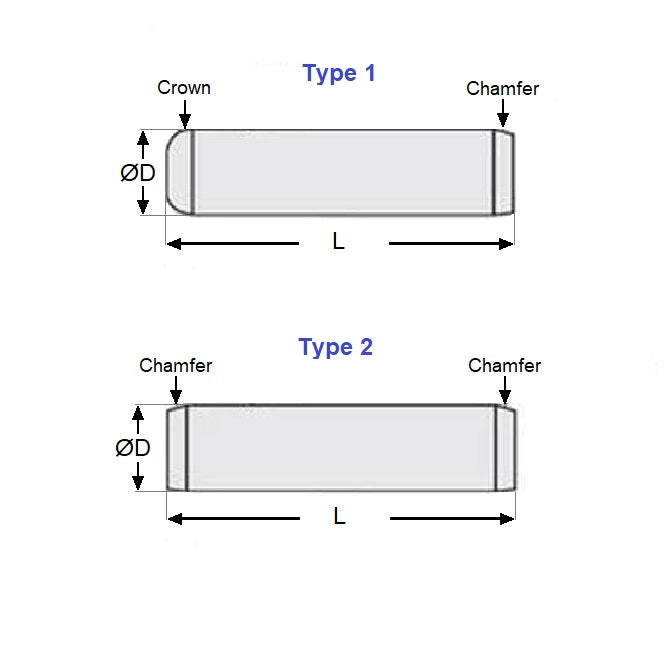

  • Type: 2 (Chamfer Both Ends)
  • Chamfer: 0.20 x 15 Deg
  • Standard: Based on ISO 2338

Brand: NoCor
Country of Origin: TW

Alternative Parts Include: DOWMS-010-006, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
