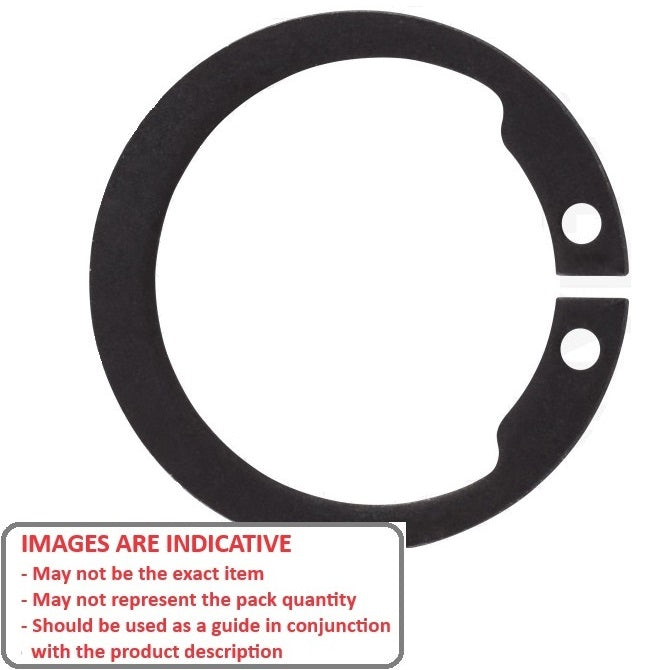

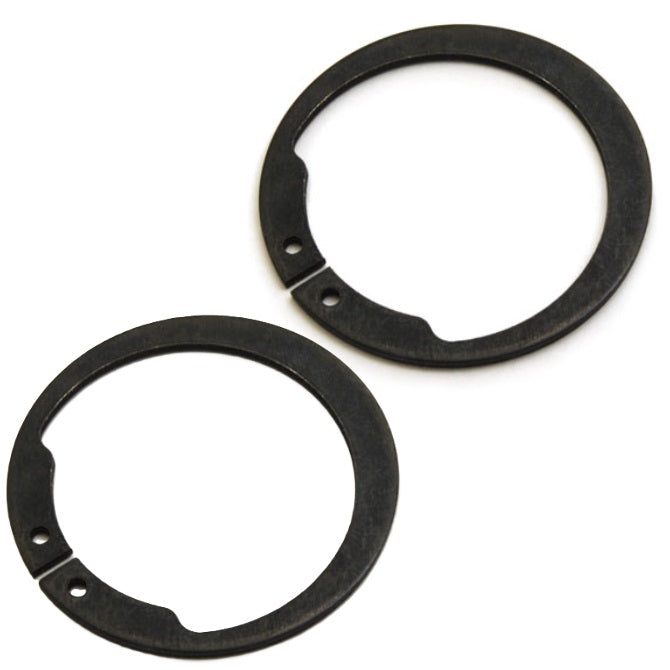

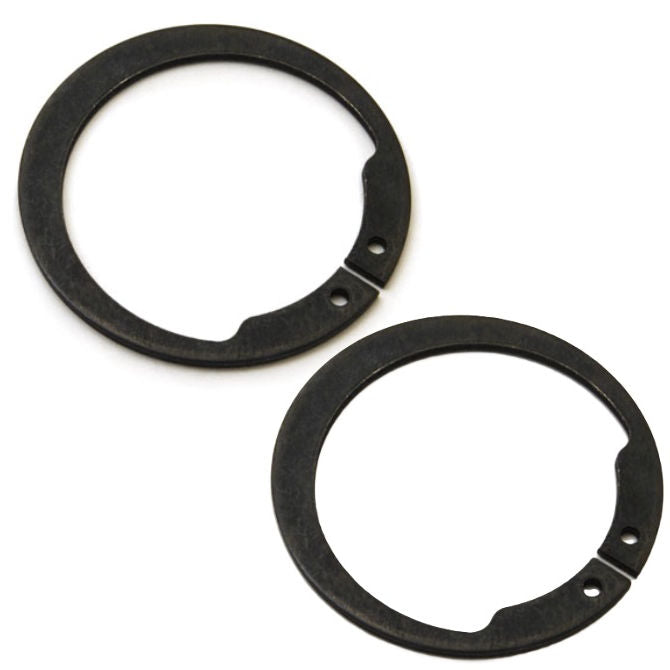

External Retaining Rings - 17x1x16.2 mm - Carbon Steel

CCE-01700-C-V (5 Pcs)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Price:
$3.95 AUD
$3.95 AUD
per 5
Qty: 61 available now (305 pcs)
Order 50 or more (250 pcs) for $3.56 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 24, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Inverted

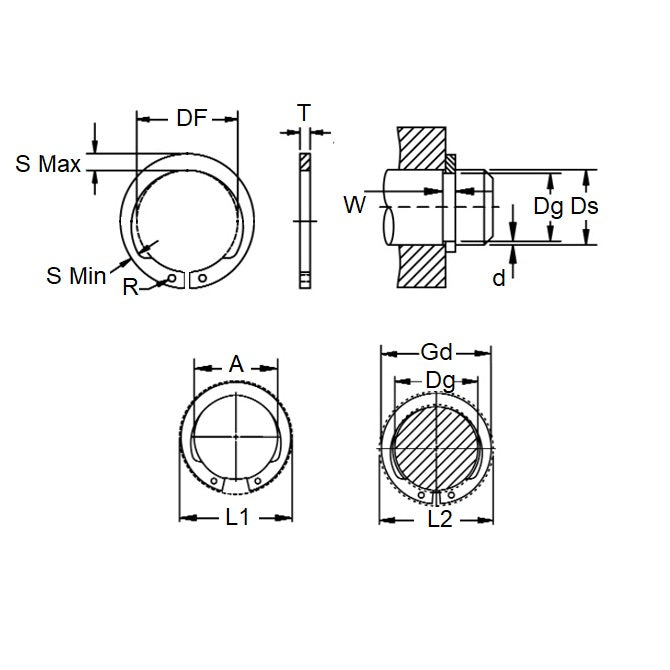

Product Details:

Shaft Diameter (Ds): 17.00mm
Carbon Steel
  • Clip Thickness (T): 1.00mm
    + 0.00 / - 0.11
  • Groove Dia. (Dg): 16.20mm
    + 0.00 / - 0.06
  • Approx. Loose Circlip ID (A): 15.70mm
  • Radial Wall (S) min/max: 2.40mm
  • Groove Width (W): 1.10mm
  • Tool: PRS-E009

Brand: MBA
Country of Origin: US

Alternative Parts Include: M1408-0170, DSHI-017, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
